S52416.0XR0.5
S52416.0XR0.5
S52416.0XR0.5
S52416.0XR0.5

S52416.0XR0.5

UGC DOR6706669
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$436.60 CAD - $436.60 CAD
$436.60 CAD
$436.60 CAD - $436.60 CAD
$436.60 CAD

Vendu en lots de : 1

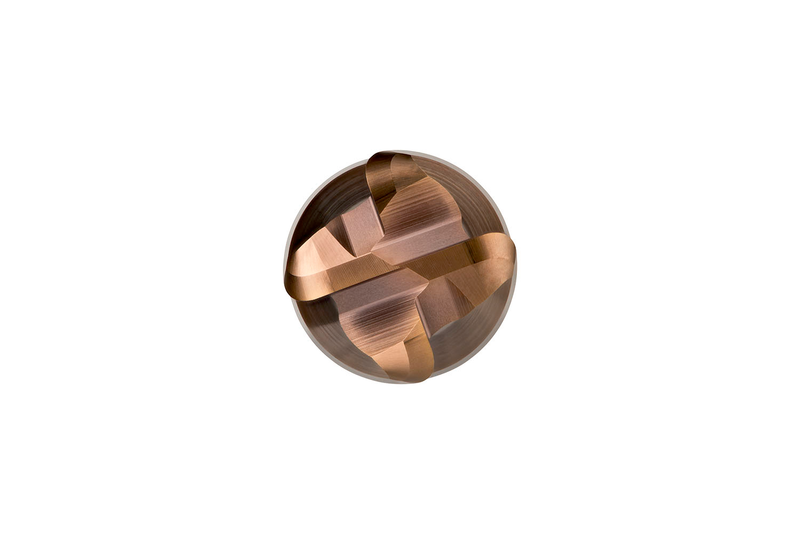

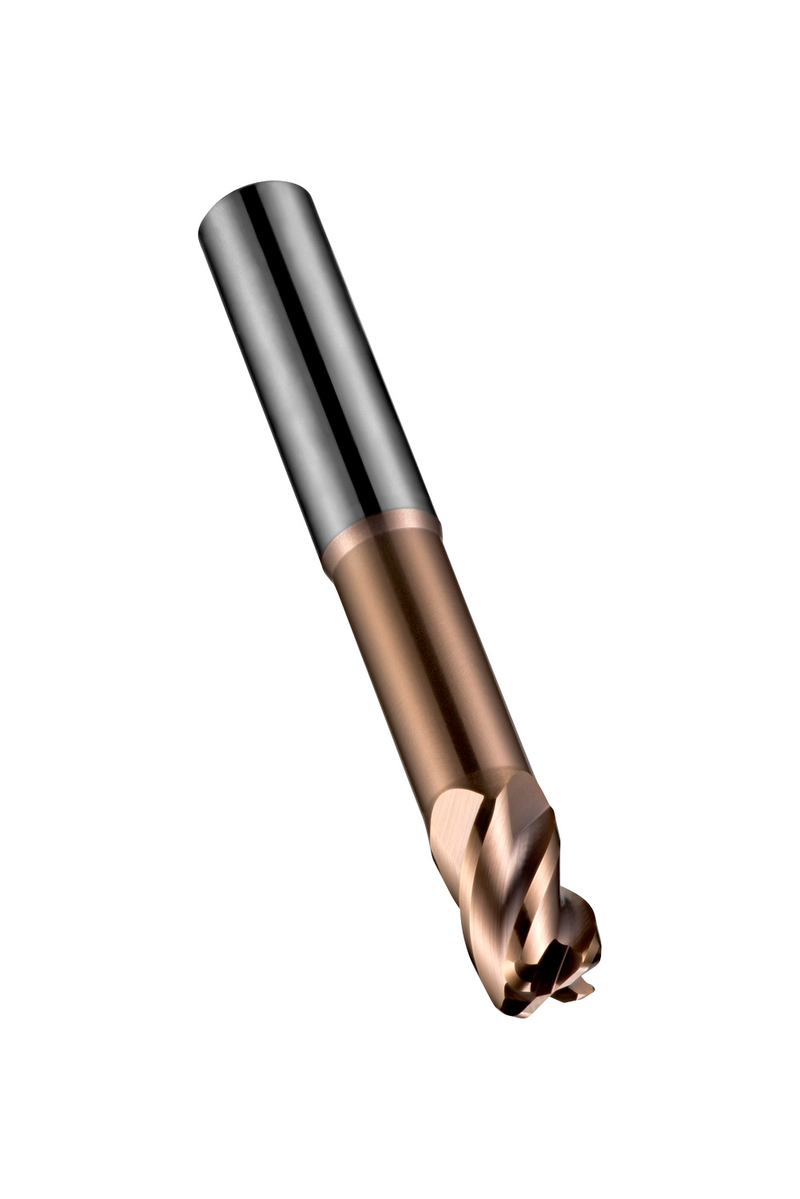

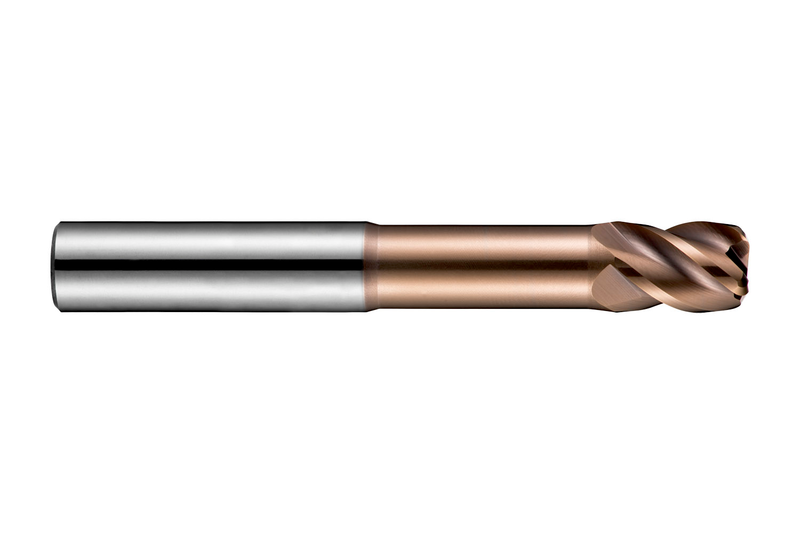

Fraise en bout à rayon d'angle série extra-courte 4 dents, diamètre 16mm avec 22mm de longueur de coupe, 125mm de longueur totale, 85mm de portée avec dégagement et 0,5mm de rayons d'angle, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le plongement, le plongement progressif, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52416.0XR0.5
GradeTiSiN
Product Number6706669
Product FamilyS524
Insert Geometry

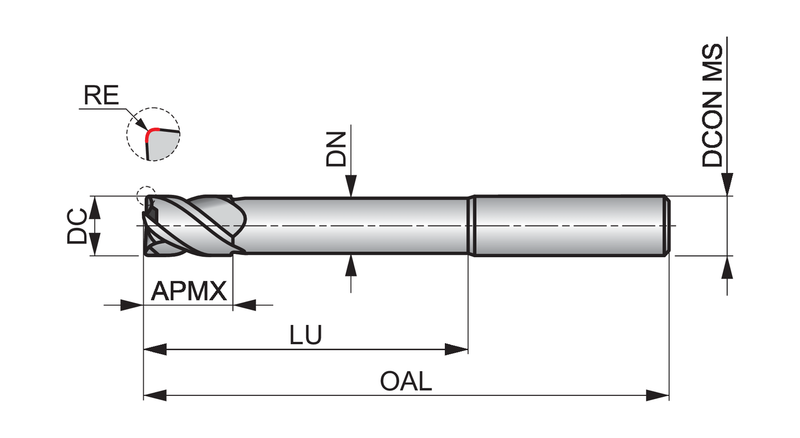

Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706669
EAN7320760682180
File Type Download
S52416.0XR0.5 — Line Drawing PDF Download
