S5215.0XR0.3
S5215.0XR0.3
S5215.0XR0.3
S5215.0XR0.3

S5215.0XR0.3

UGC DOR6706673
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.37 CAD - $99.37 CAD
$99.37 CAD
$99.37 CAD - $99.37 CAD
$99.37 CAD

Vendu en lots de : 1

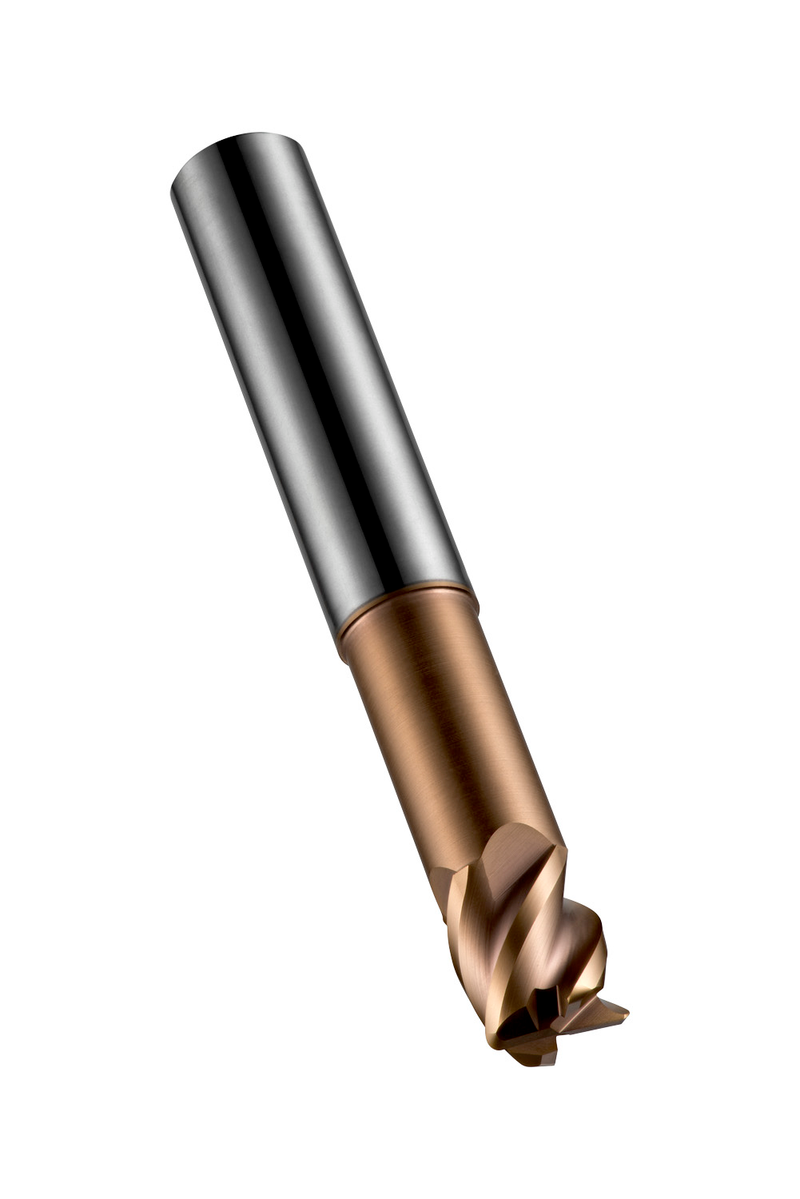

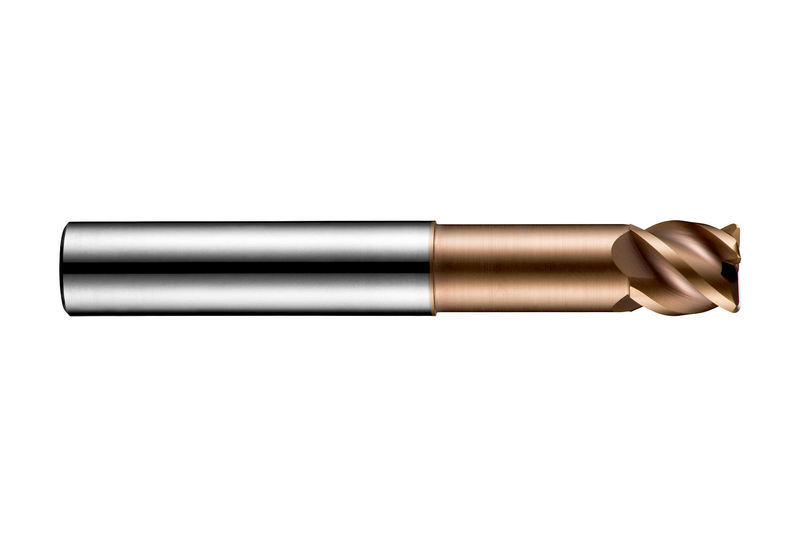

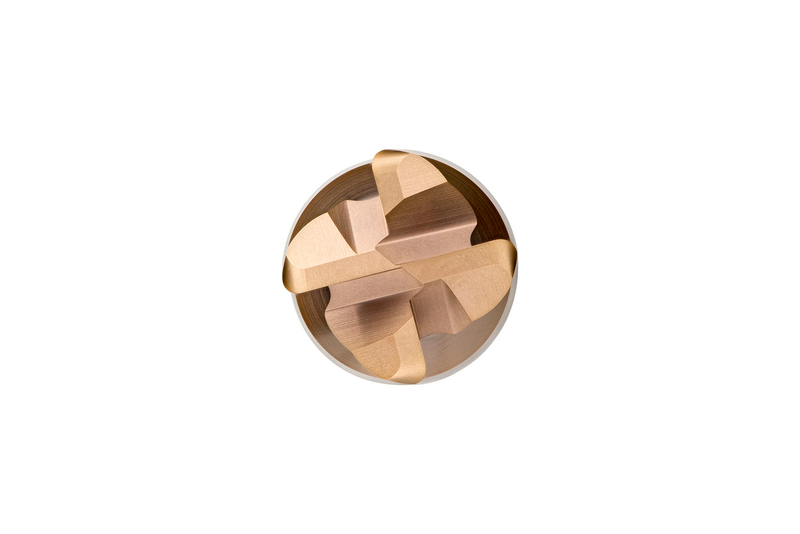

Fraise en carbure monobloc à rayon de coin extra courte, 4 arêtes, diamètre 5 mm avec longueur de coupe 6 mm, longueur totale 60 mm, portée 18 mm avec dégagement de col et rayons de coin 0,3 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, revêtement TiSiN, hélice 45° et angle de dépouille -10° pour le fraisage d'épaulements, le plongement, le fraisage progressif en plongée, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5215.0XR0.3
GradeTiSiN
Product Number6706673
Product FamilyS521

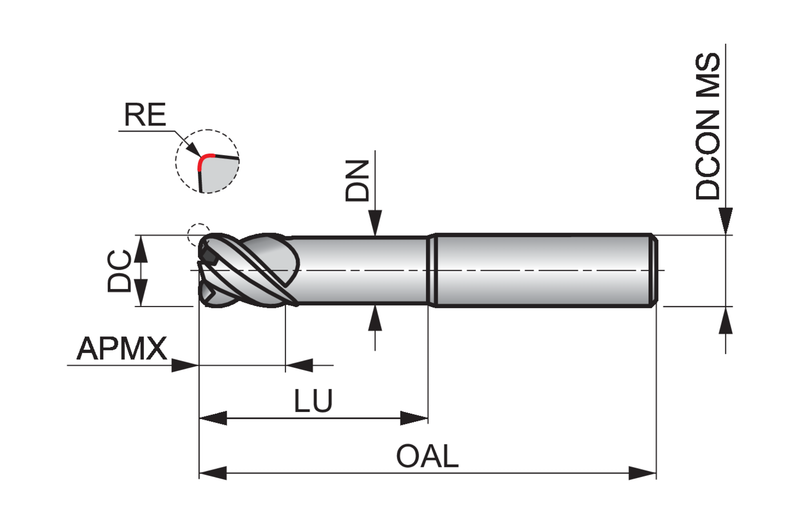

Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706673
EAN7320760682227
File Type Download
S5215.0XR0.3 — Line Drawing PDF Download
