S5215.0XR0.5
S5215.0XR0.5
S5215.0XR0.5
S5215.0XR0.5

S5215.0XR0.5

UGC DOR6706674
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$99.37 CAD - $99.37 CAD
$99.37 CAD
$99.37 CAD - $99.37 CAD
$99.37 CAD

Vendu en lots de : 1

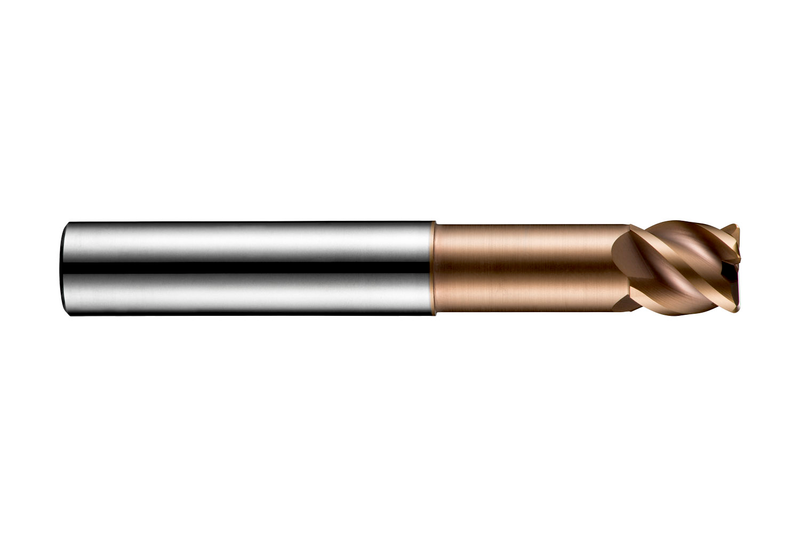

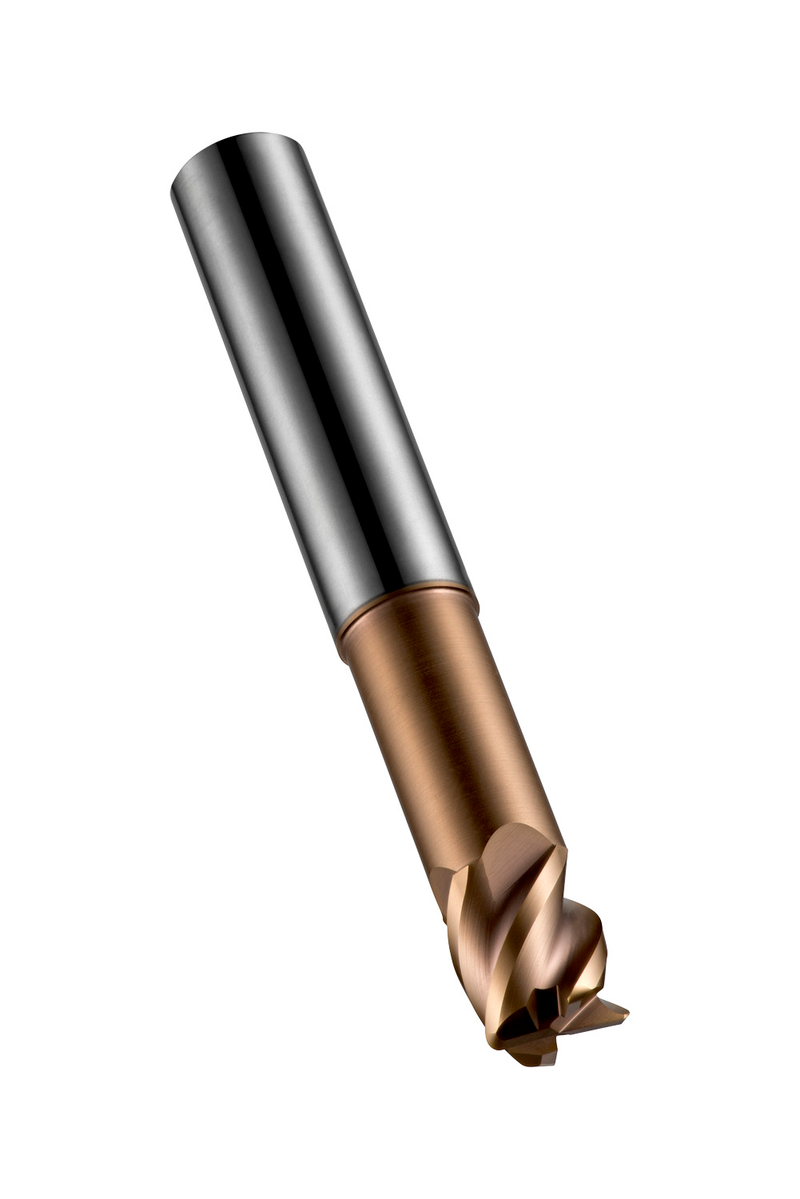

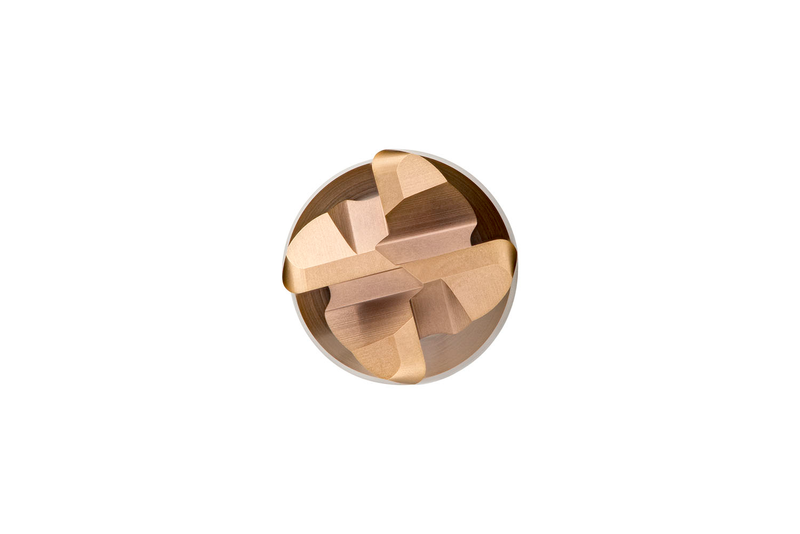

Fraise en carbure monobloc à rayon de coin extra courte, 4 arêtes, diamètre 5 mm avec une longueur de coupe de 6 mm, longueur totale de 60 mm, dégagement de 18 mm avec dépouille et rayons de coin de 0,5 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, revêtement TiSiN, hélice de 45° et angle de coupe de -10° pour le fraisage d'épaulements, le plongement, le fraisage progressif en plongée, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5215.0XR0.5
GradeTiSiN
Product Number6706674
Product FamilyS521

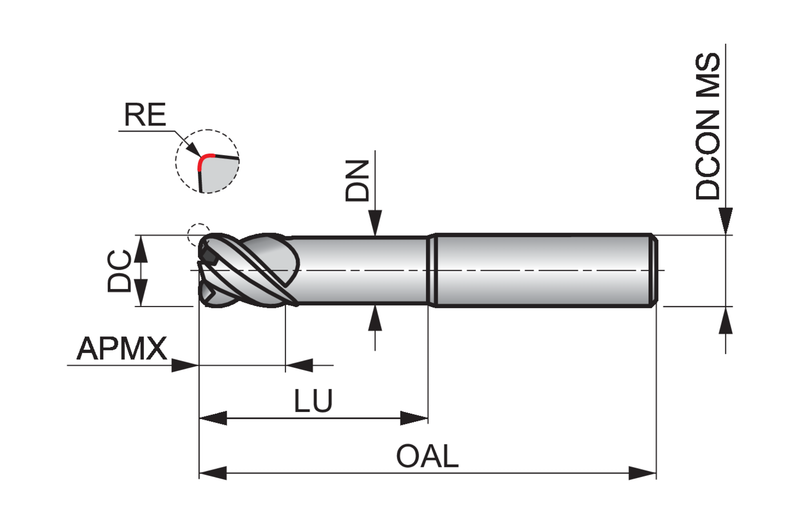

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706674
EAN7320760682234
File Type Download
S5215.0XR0.5 — Line Drawing PDF Download
