S5218.0XR1.0
S5218.0XR1.0
S5218.0XR1.0
S5218.0XR1.0

S5218.0XR1.0

UGC DOR6706678
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$139.54 CAD - $139.54 CAD
$139.54 CAD
$139.54 CAD - $139.54 CAD
$139.54 CAD

Vendu en lots de : 1

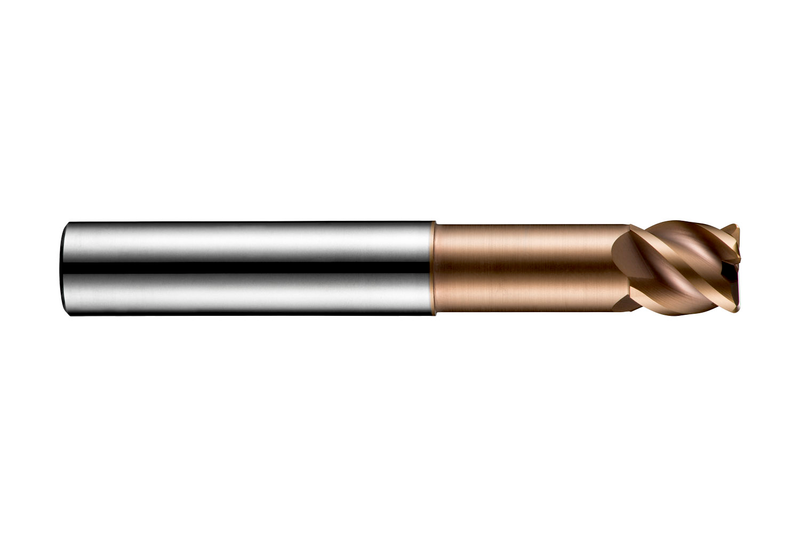

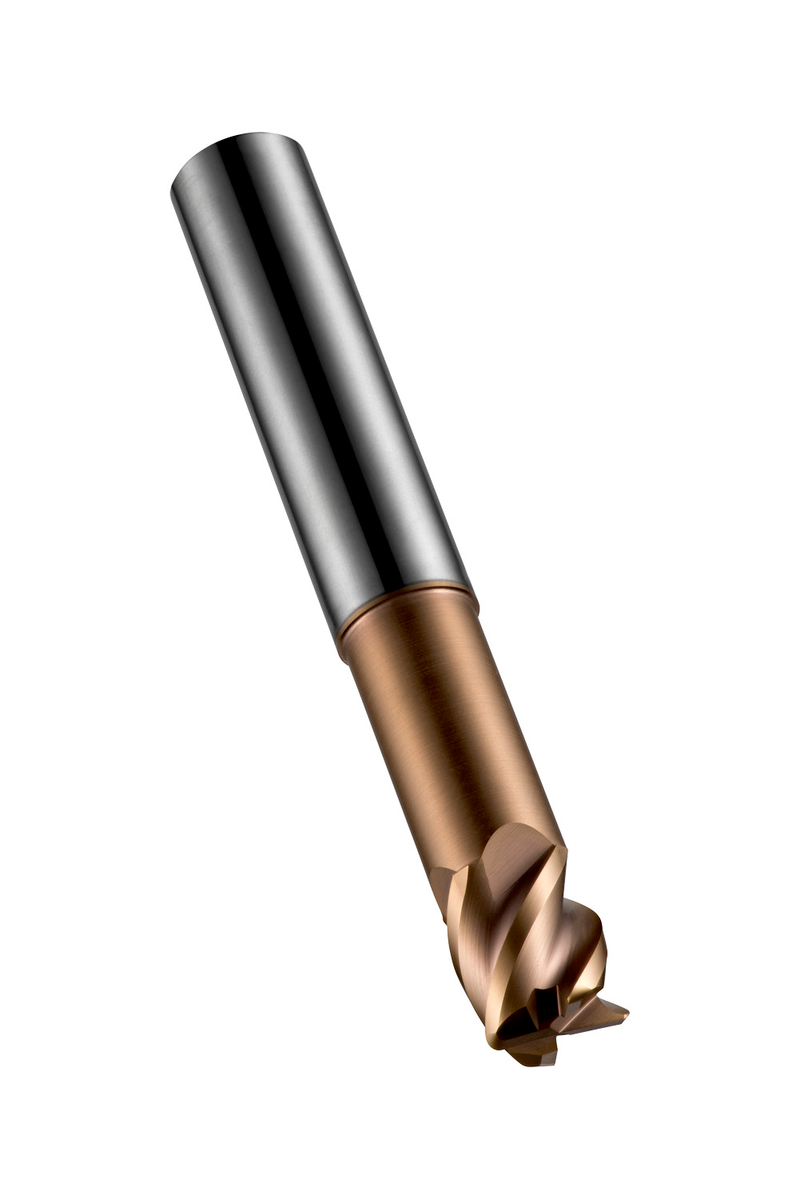

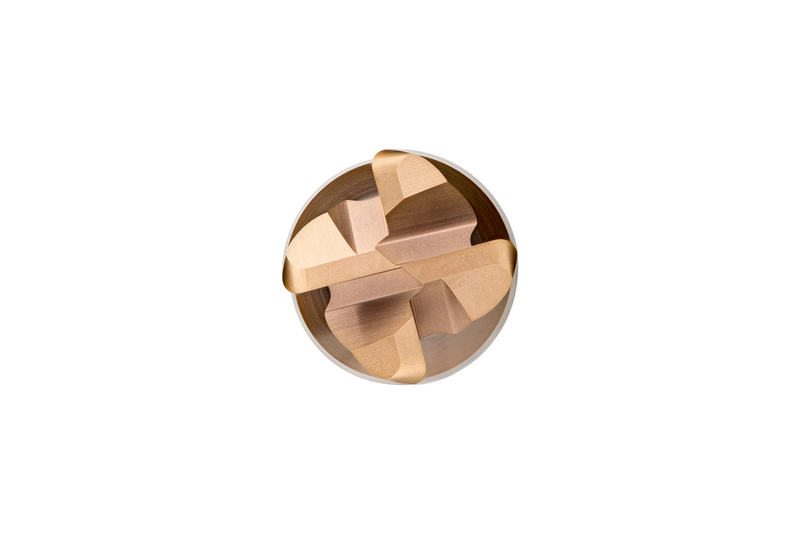

Fraise en bout à rayon d'angle et queue courte, 4 arêtes de coupe, diamètre 8mm avec une longueur de coupe de 9mm, longueur totale de 64mm, longueur dégagée de 26mm avec un rayon de coin de 1mm, selon la norme DORMER avec une queue cylindrique de 8mm, en carbure monobloc avec revêtement TiSiN, hélice de 45° et angle de dépouille de -10° pour le fraisage d'épaulements, le plongement, le plongement progressif, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5218.0XR1.0
GradeTiSiN
Product Number6706678
Product FamilyS521
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm

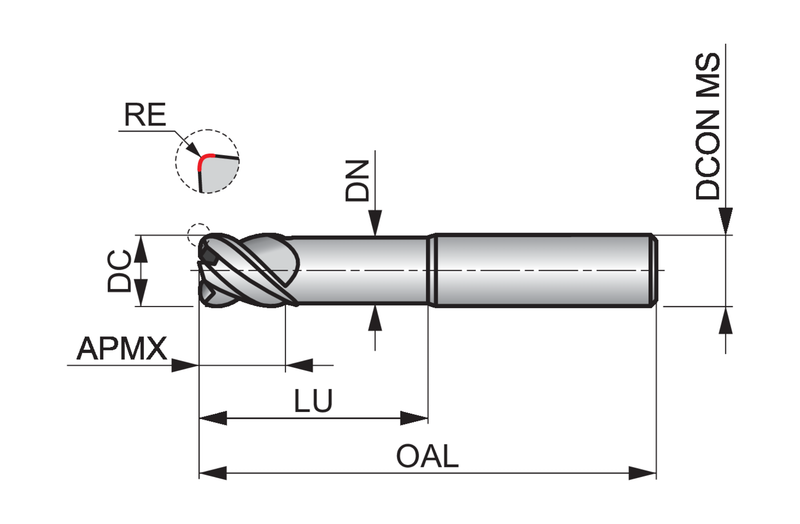

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)26.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706678
EAN7320760682272
File Type Download
S5218.0XR1.0 — Line Drawing PDF Download
