UGC DOR6706679
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$183.94 CAD - $183.94 CAD
$183.94 CAD
$183.94 CAD - $183.94 CAD
$183.94 CAD

Vendu en lots de : 1

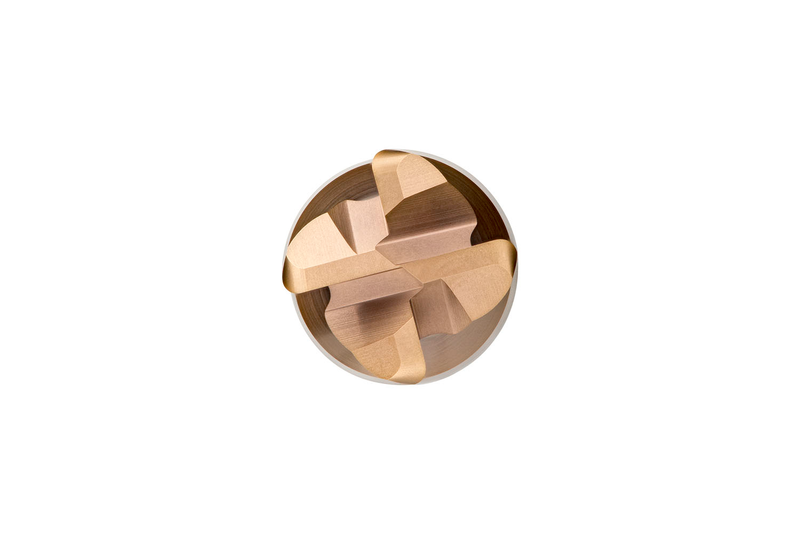

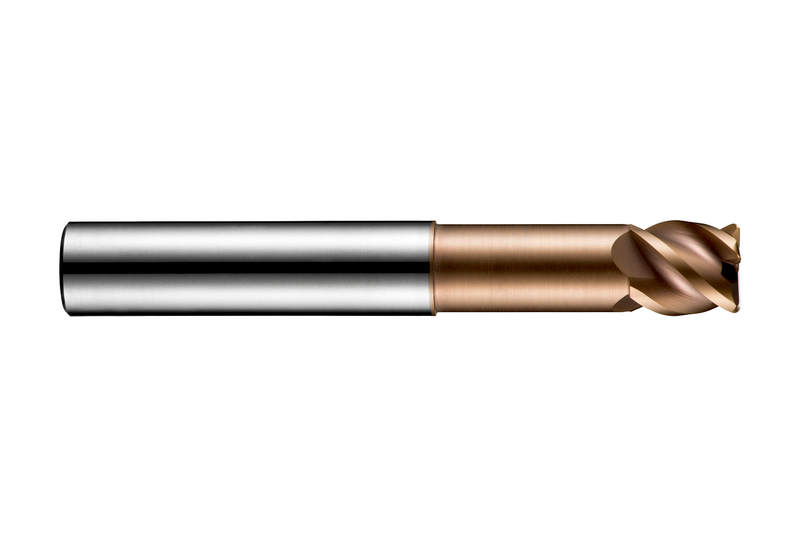

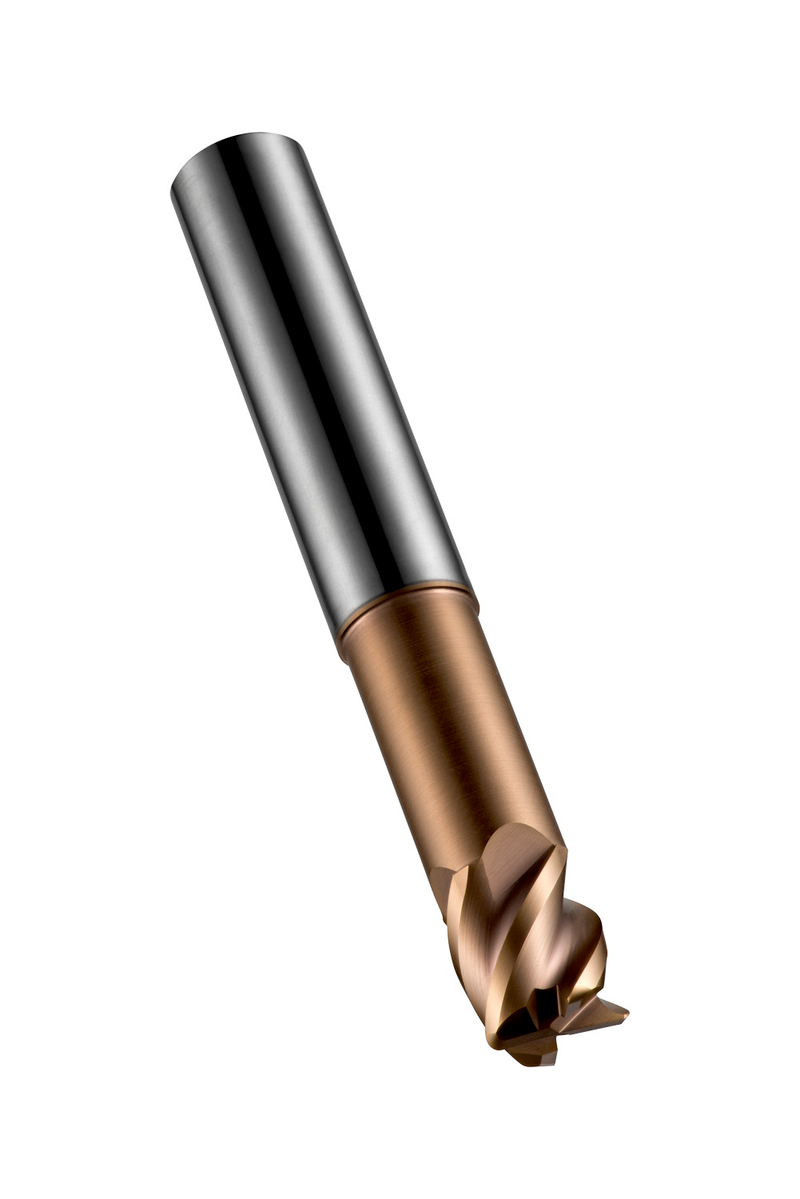

Fraise en bout à rayon de coin extra-courte avec 4 dents, diamètre 10mm avec une longueur de coupe de 11mm, longueur totale de 70mm, portée de 31mm avec dégagement de col et rayons de coin de 1mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement TiSiN, hélice à 45° et angle de dépouille de -10° pour le fraisage d'épaulements, le plongement, le fraisage progressif par plongée, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52110.0XR1.0
GradeTiSiN
Product Number6706679
Product FamilyS521
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

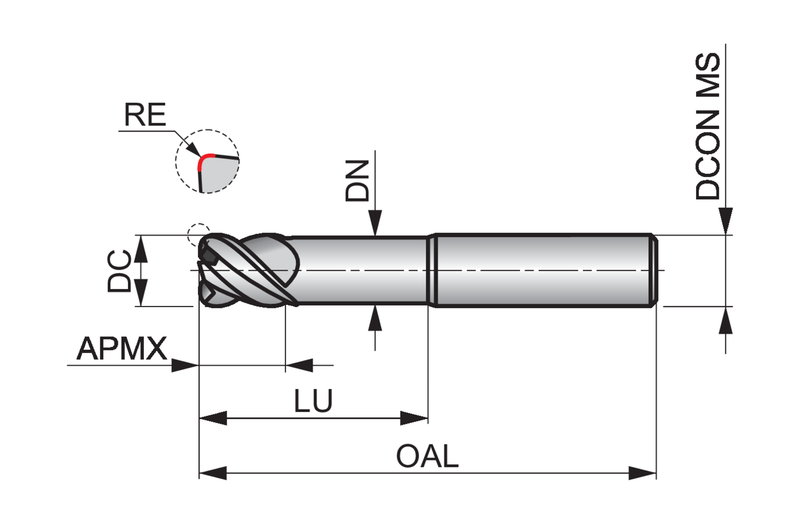

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706679
EAN7320760682289
File Type Download
S52110.0XR1.0 — Line Drawing PDF Download
