S52110.0XR2.0
S52110.0XR2.0
S52110.0XR2.0
S52110.0XR2.0

S52110.0XR2.0

UGC DOR6706680
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$183.94 CAD - $183.94 CAD
$183.94 CAD
$183.94 CAD - $183.94 CAD
$183.94 CAD

Vendu en lots de : 1

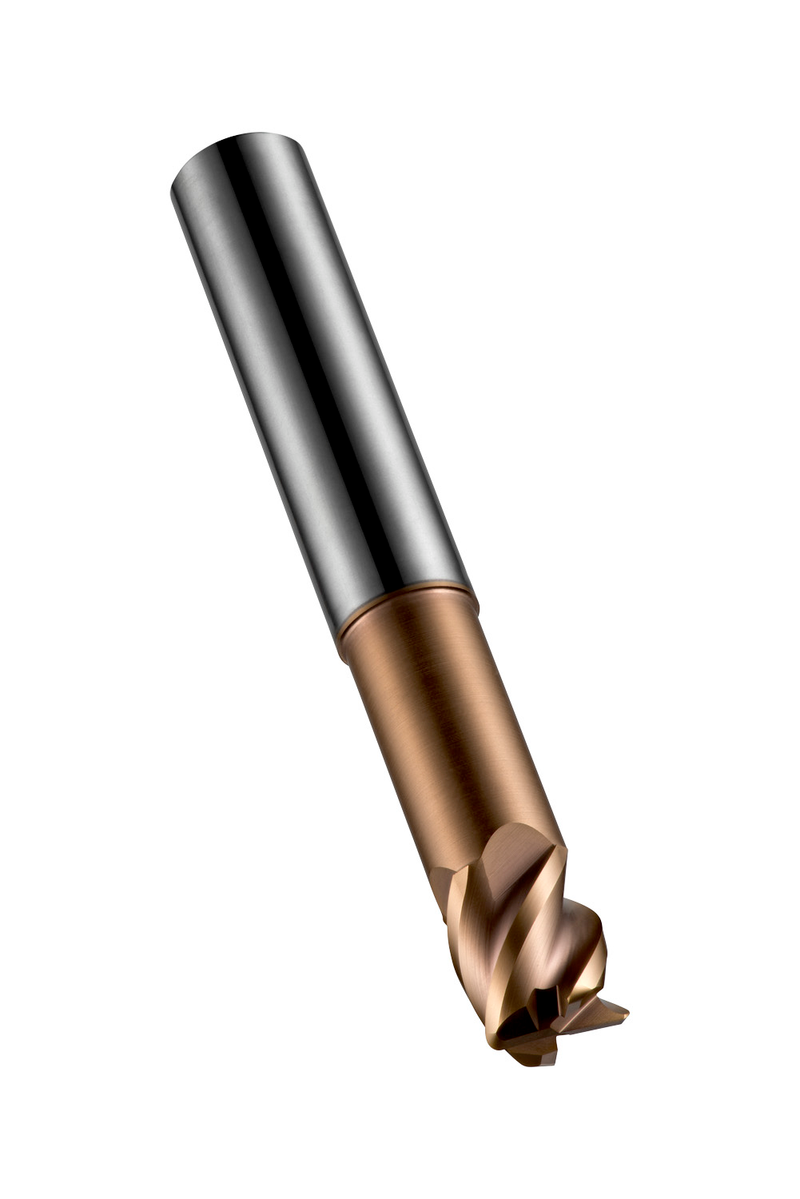

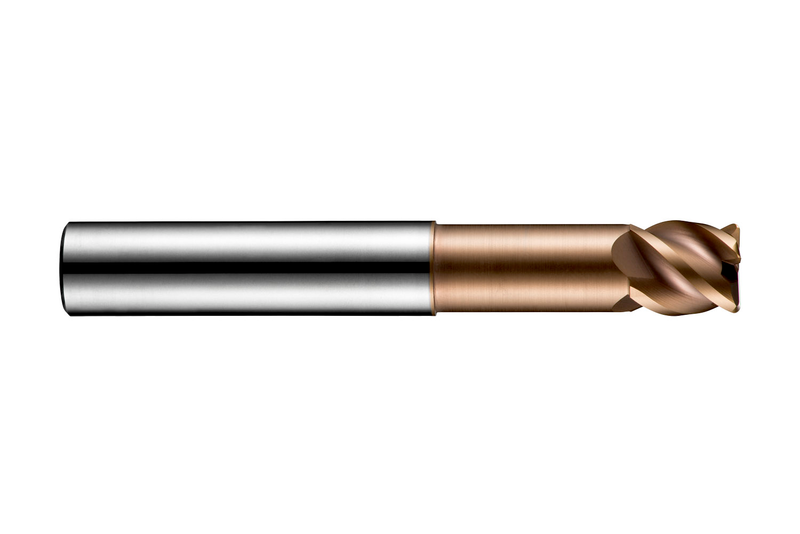

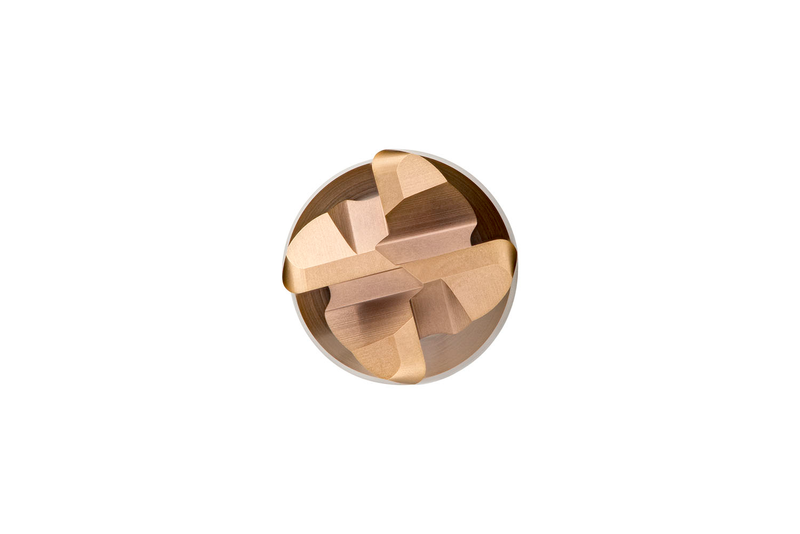

Fraise en carbure monobloc à rayon de coin extra-courte 4 dents, diamètre 10 mm avec une longueur de coupe de 11 mm, longueur totale de 70 mm, portée de 31 mm avec dégagement de col et des rayons de coin de 2 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, revêtement TiSiN, hélice à 45° et angle de dépouille de -10° pour le fraisage d'épaulements, le plongement, le fraisage progressif en plongée, l'usinage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52110.0XR2.0
GradeTiSiN
Product Number6706680
Product FamilyS521

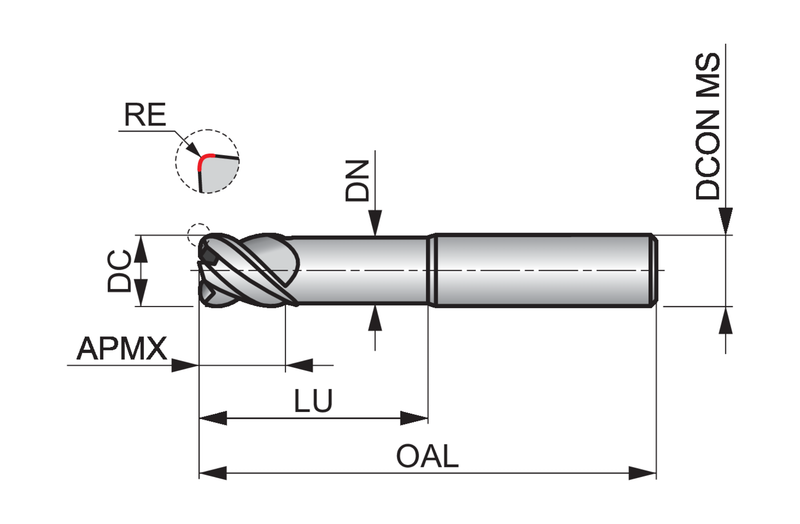

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706680
EAN7320760682296
File Type Download
S52110.0XR2.0 — Line Drawing PDF Download
