UGC DOR6706682
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$253.71 CAD - $253.71 CAD
$253.71 CAD
$253.71 CAD - $253.71 CAD
$253.71 CAD

Vendu en lots de : 1

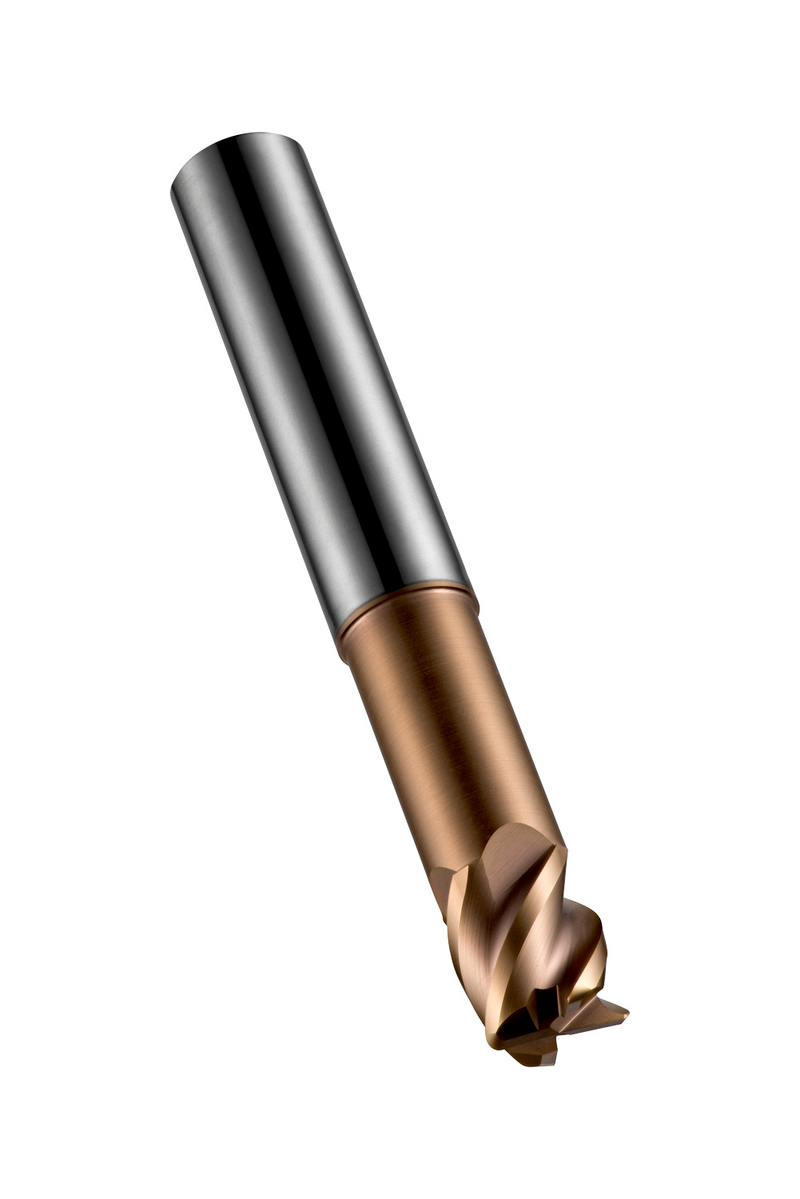

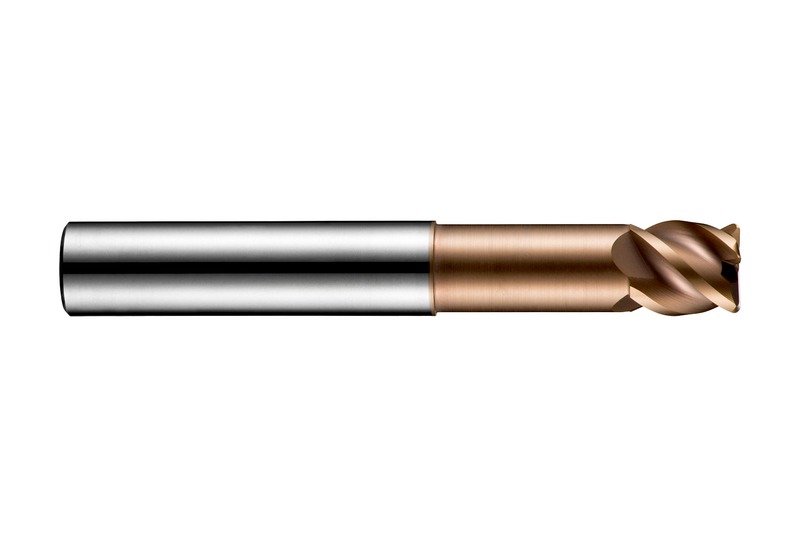

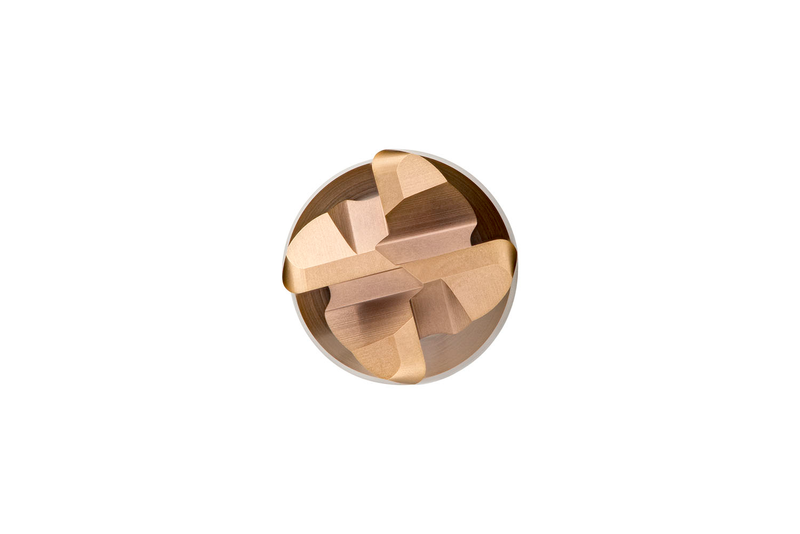

Fraise en bout à rayon de coin, série extra courte, 4 dents, diamètre 12mm avec 13mm de longueur de coupe, 75mm de longueur totale, 37mm de portée avec dégagement de col et 1mm de rayons de coin, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement TiSiN, hélice à 45° et angle de dépouille de -10° pour le fraisage d'épaulement, le plongement, le plongement progressif, la rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52112.0XR1.0
GradeTiSiN
Product Number6706682
Product FamilyS521

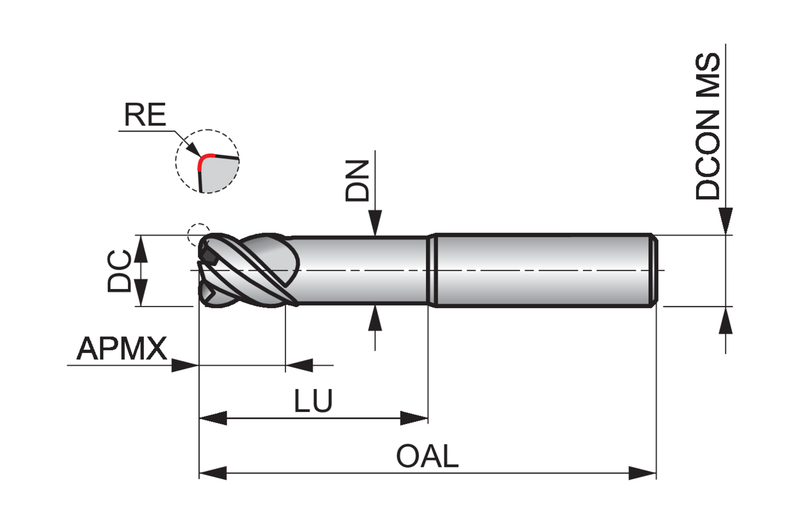

Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)37.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706682
EAN7320760682319
File Type Download
S52112.0XR1.0 — Line Drawing PDF Download
