UGC DOR6706685
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$415.46 CAD - $415.46 CAD
$415.46 CAD
$415.46 CAD - $415.46 CAD
$415.46 CAD

Vendu en lots de : 1

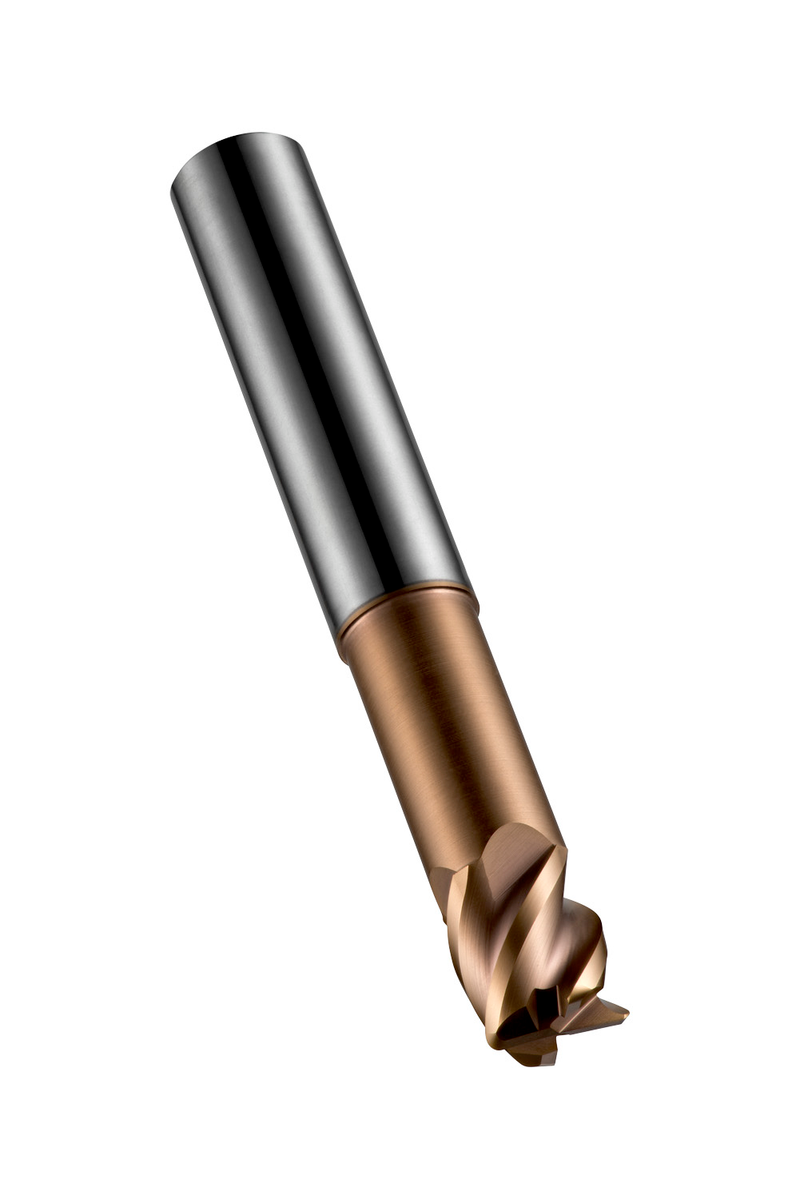

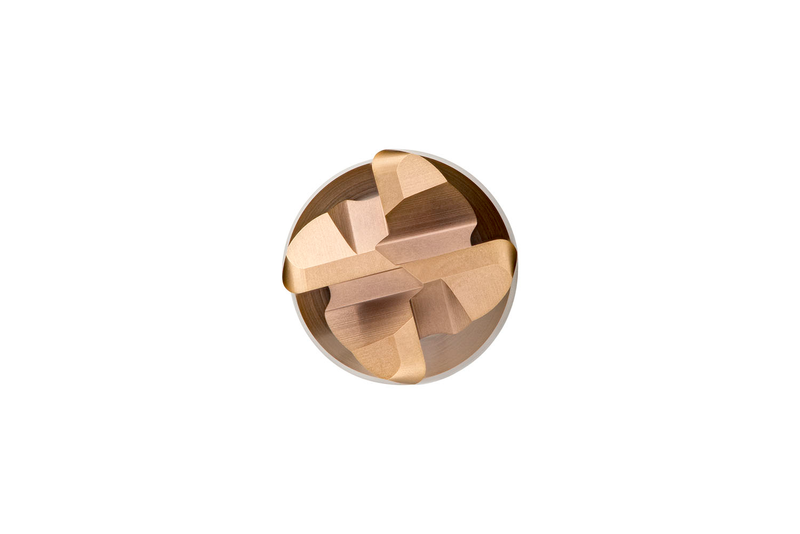

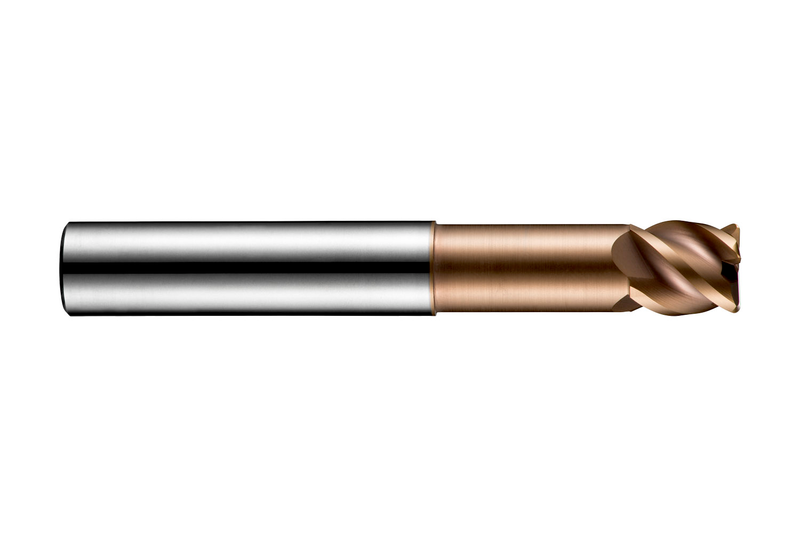

Fraise en bout d'angle à rayon de coin très courte à 4 cannelures, diamètre 16mm avec 17mm de longueur de coupe, longueur totale 90mm, portée de 43mm avec dégagement de collet et rayons de coin de 3mm, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec revêtement TiSiN, hélice de 45° et angle de dépouille de -10° pour le fraisage d'épaulements, le plongement, le fraisage en plongée progressive, l'interpolation hélicoïdale et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52116.0XR3.0
GradeTiSiN
Product Number6706685
Product FamilyS521
Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.6693"
Depth of Cut Max — mm (APMX)17.0 mm

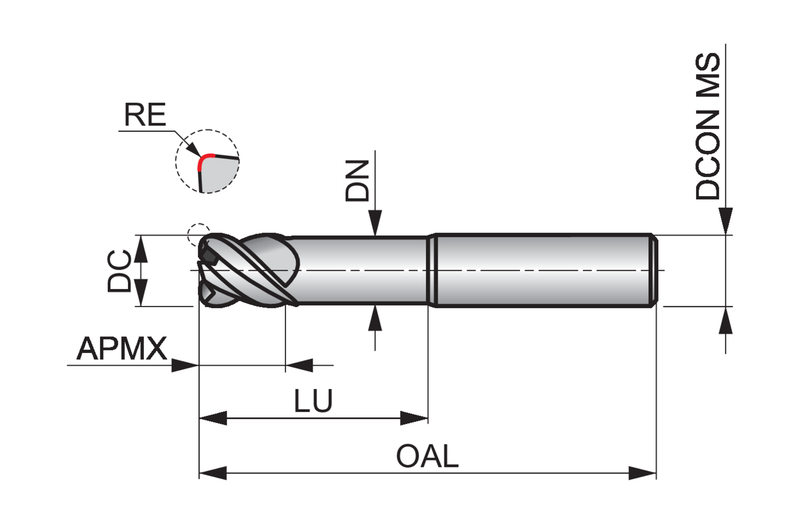

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)43.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706685
EAN7320760682340
File Type Download
S52116.0XR3.0 — Line Drawing PDF Download
