S7178.0
S7178.0
S7178.0
S7178.0

S7178.0

UGC DOR6706703
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$93.56 CAD - $93.56 CAD
$93.56 CAD
$93.56 CAD - $93.56 CAD
$93.56 CAD

Vendu en lots de : 1

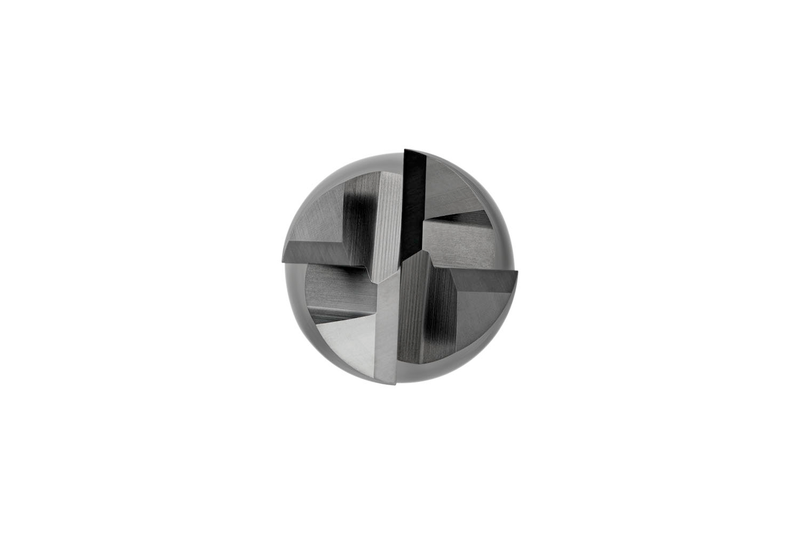

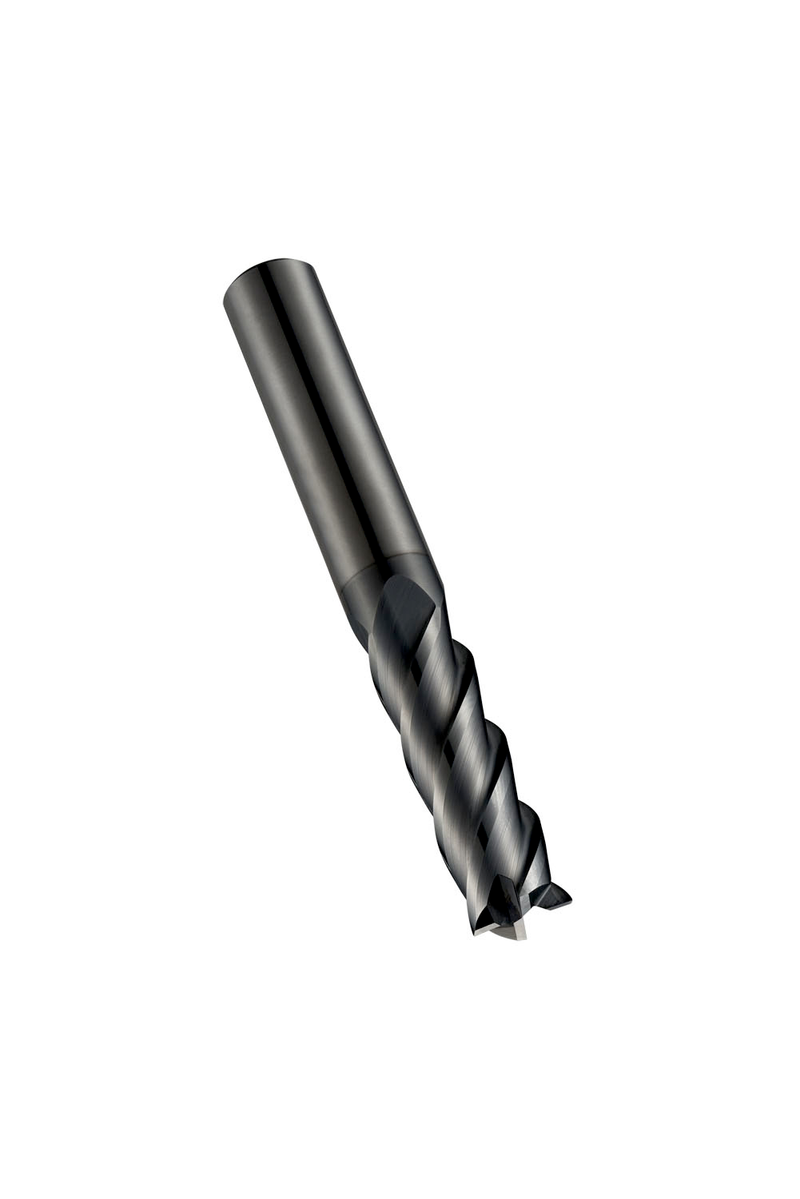

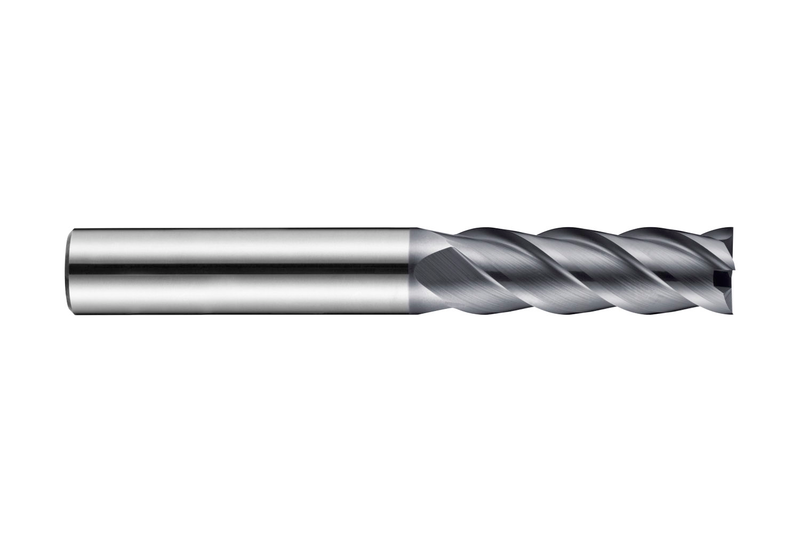

Fraise longue 4 dents, diamètre 8mm, longueur de coupe 31mm et longueur totale 75mm, selon la norme DORMER avec queue cylindrique 8mm, carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7178.0
GradeAlCrN
Product Number6706703
Product FamilyS717
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm

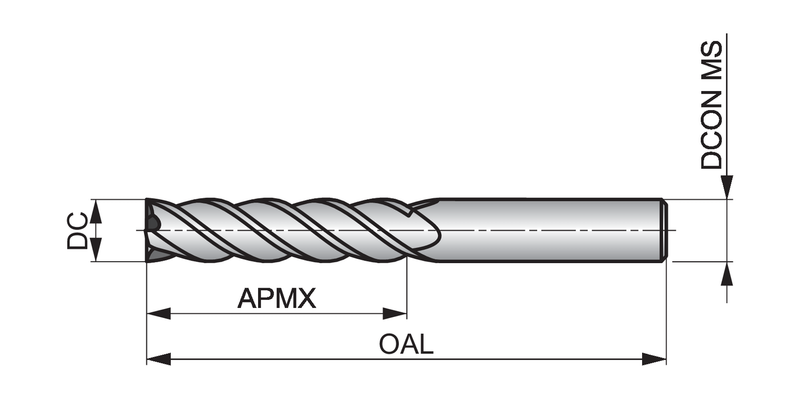

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706703
EAN7320760682524
File Type Download
S7178.0 — Line Drawing PDF Download
