UGC DOR6706704
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$122.10 CAD - $122.10 CAD
$122.10 CAD
$122.10 CAD - $122.10 CAD
$122.10 CAD

Vendu en lots de : 1

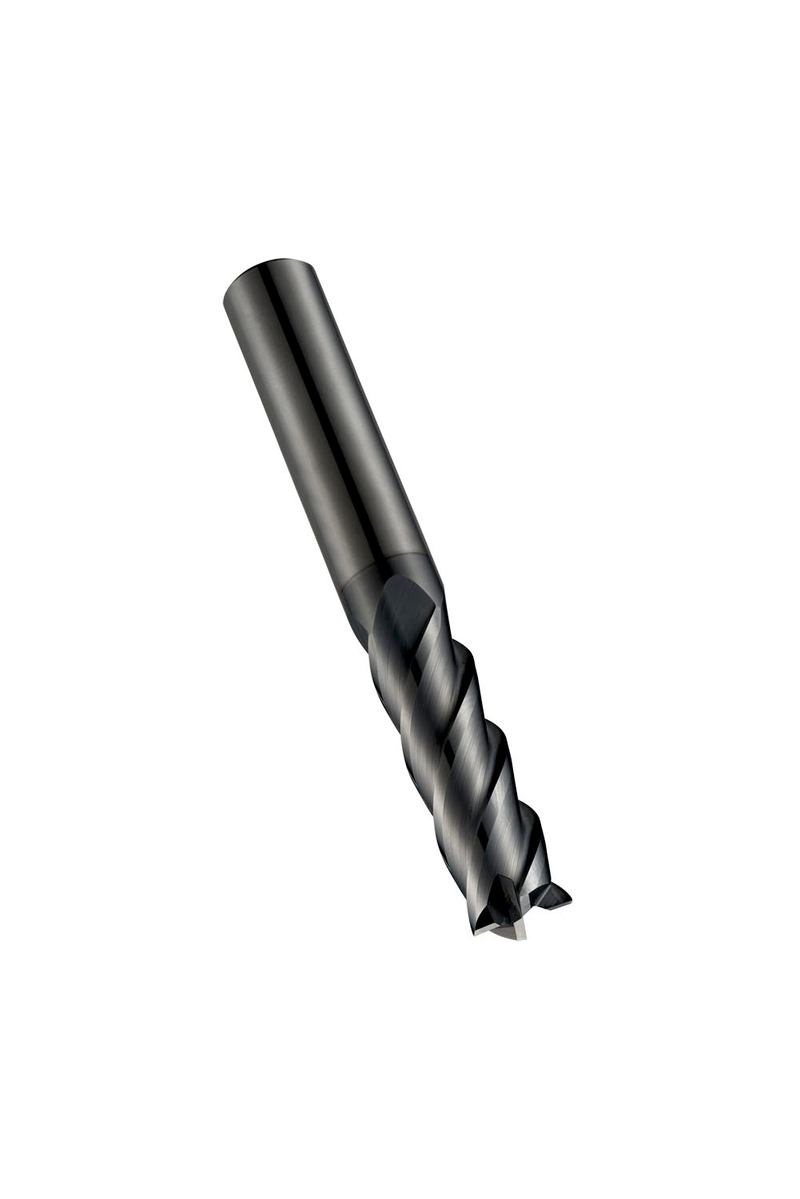

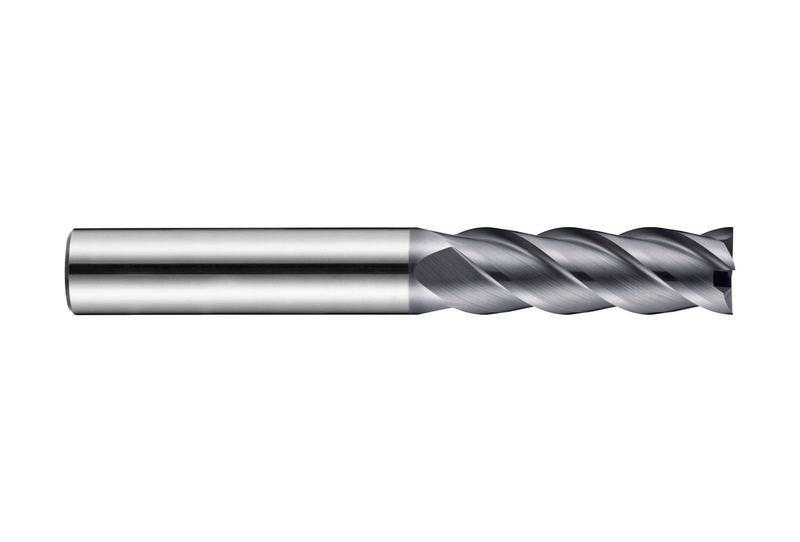

Fraise en bout longue à 4 dents, diamètre 10mm avec une longueur de coupe de 31mm et une longueur totale de 75mm, selon la norme DORMER avec une queue cylindrique de 10mm, en carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage d'épaulement dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71710.0
GradeAlCrN
Product Number6706704
Product FamilyS717

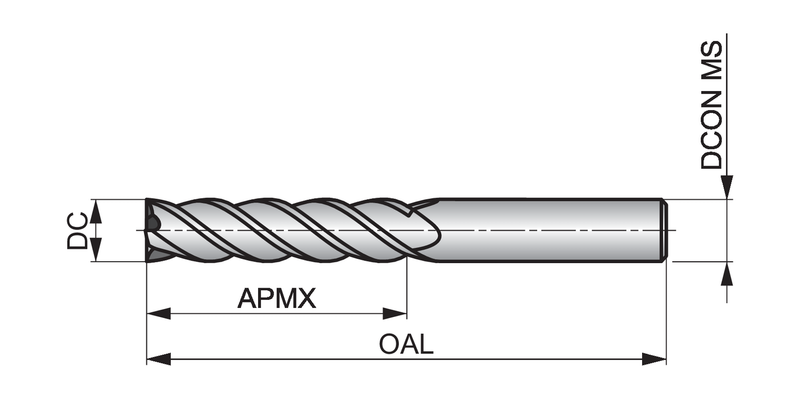

Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

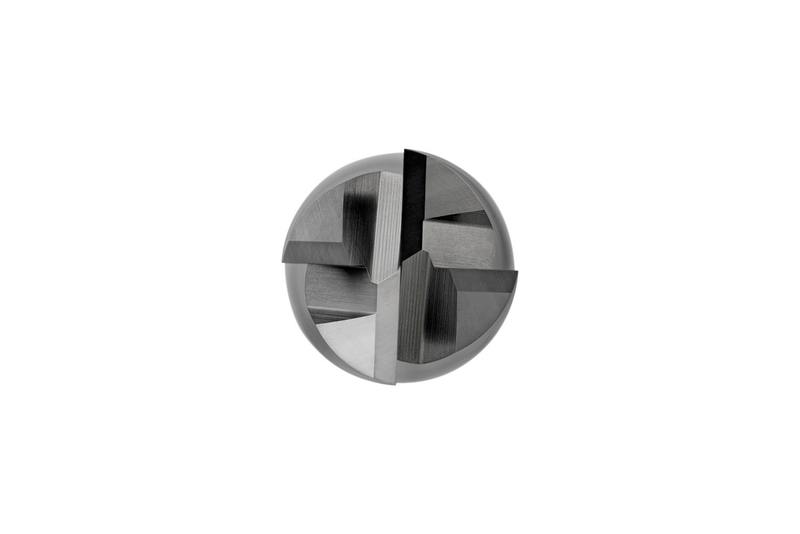

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706704
EAN7320760682531
File Type Download
S71710.0 — Line Drawing PDF Download
