UGC DOR6706705
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$169.67 CAD - $169.67 CAD
$169.67 CAD
$169.67 CAD - $169.67 CAD
$169.67 CAD

Vendu en lots de : 1

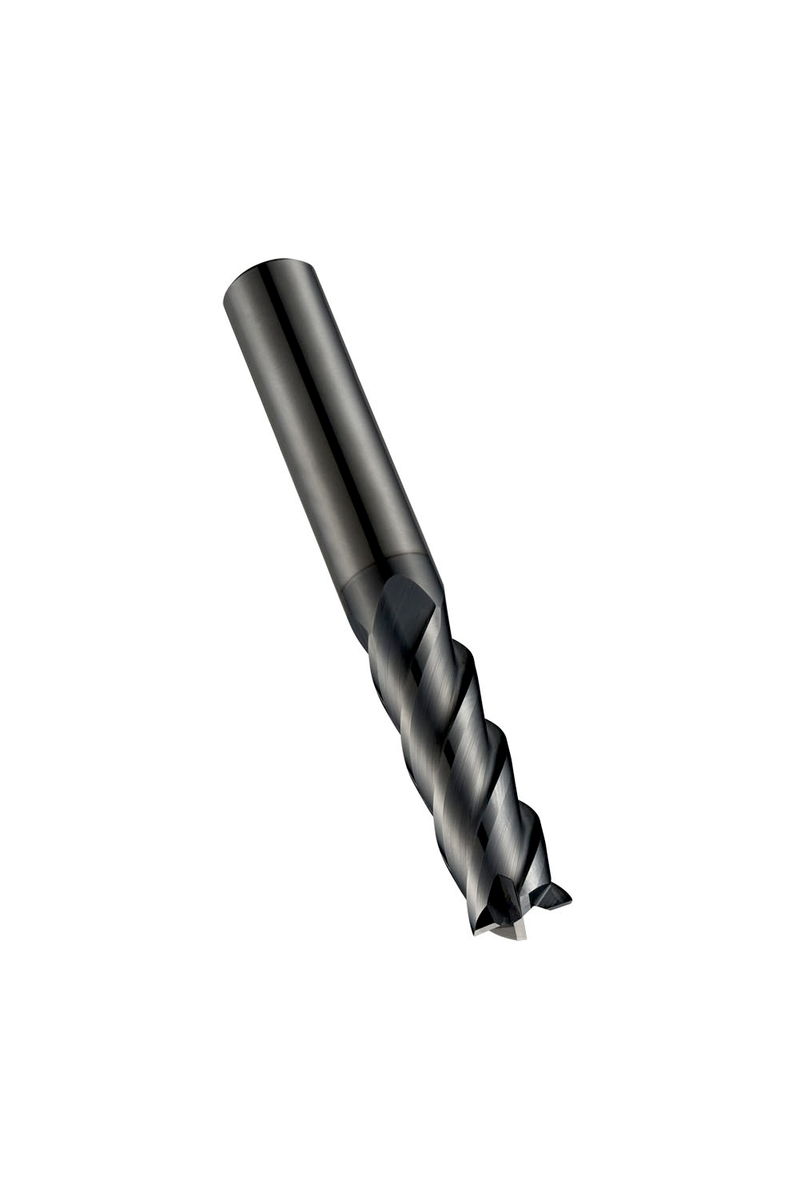

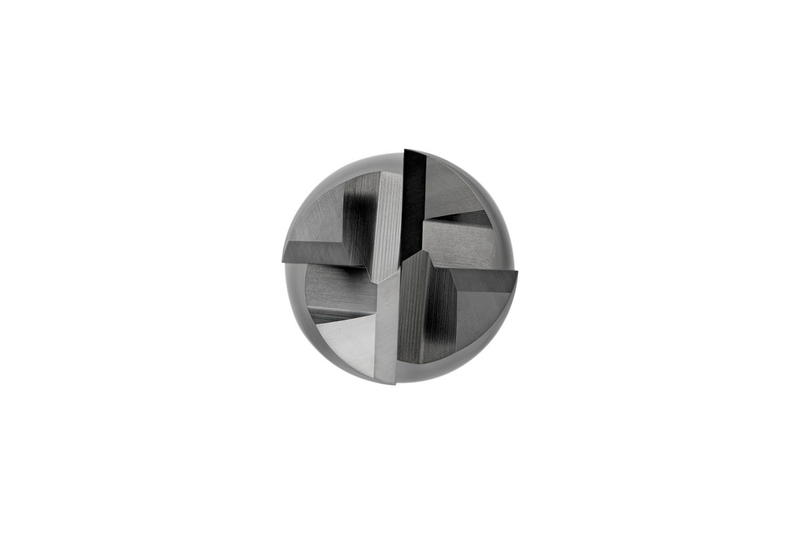

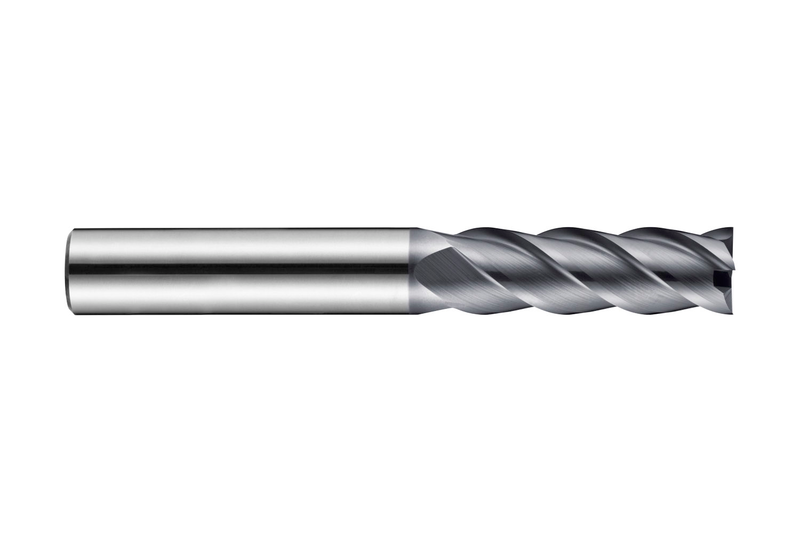

Fraise en bout série longue à 4 dents, diamètre 12mm, longueur de coupe 50mm et longueur totale 100mm, selon la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71712.0
GradeAlCrN
Product Number6706705
Product FamilyS717
Insert Geometry
Depth of Cut Max — in (APMX)1.9685"
Depth of Cut Max — mm (APMX)50.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706705
EAN7320760682548
File Type Download

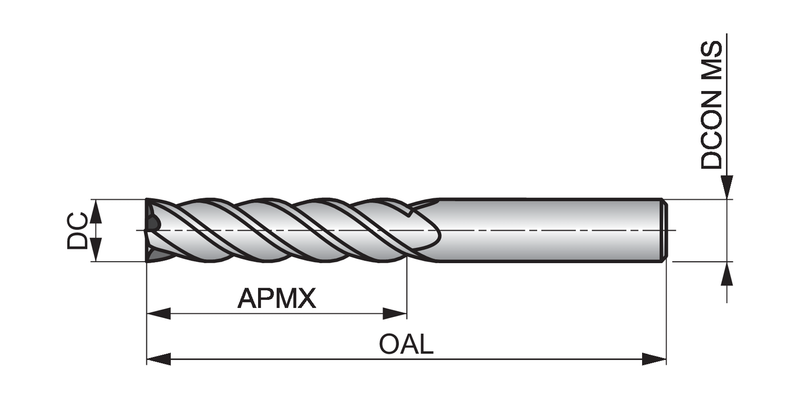

S71712.0 — Line Drawing PDF Download
