UGC DOR6706706
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$211.96 CAD - $211.96 CAD
$211.96 CAD
$211.96 CAD - $211.96 CAD
$211.96 CAD

Vendu en lots de : 1

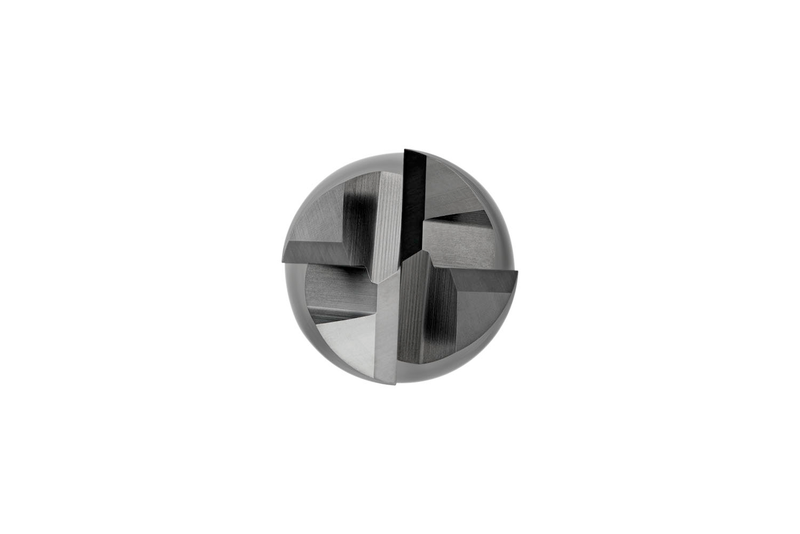

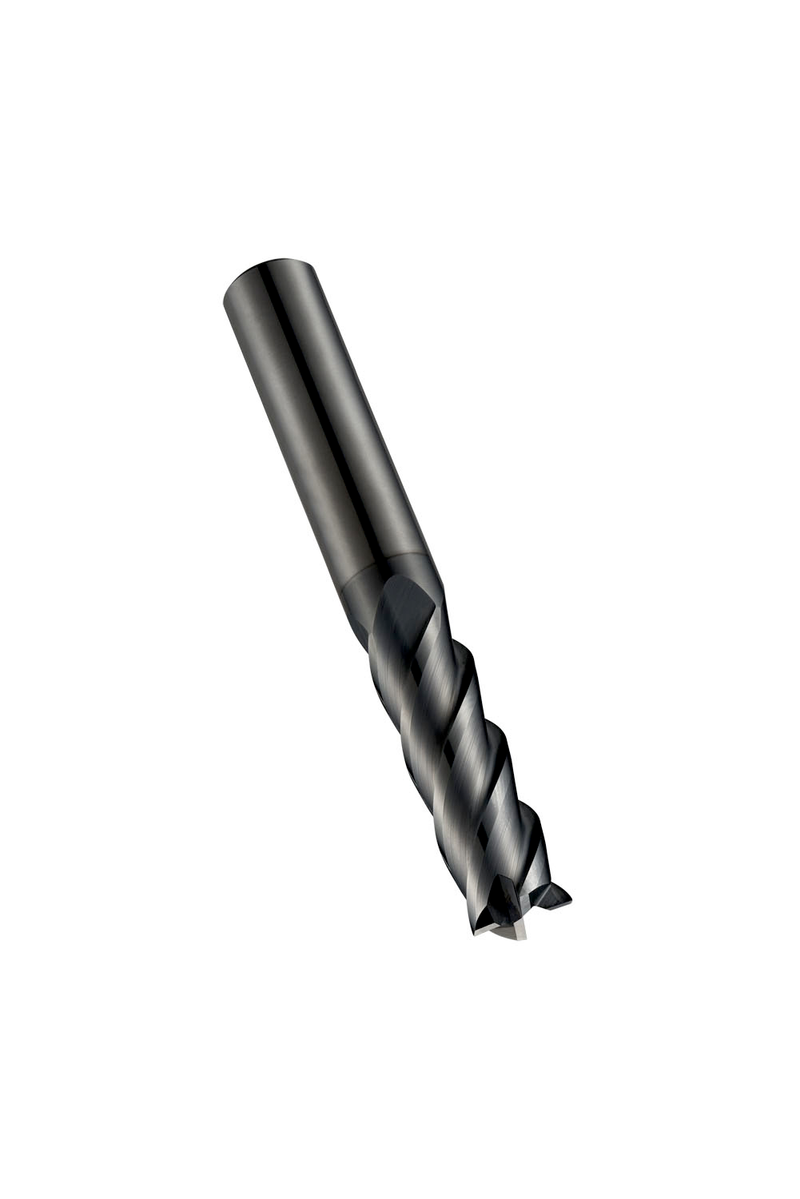

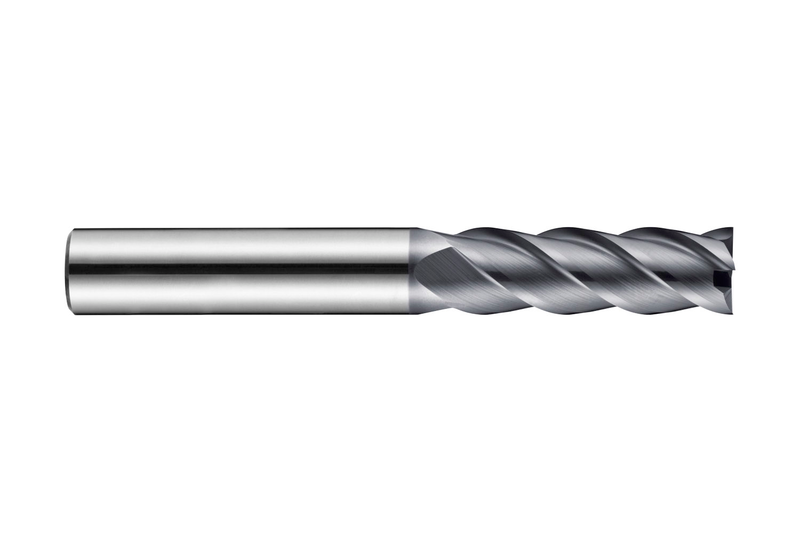

Fraise en bout série longue 4 dents, diamètre 14mm avec une longueur de coupe de 57mm et une longueur totale de 125mm, selon la norme DORMER, avec un diamètre de queue cylindrique de 14mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dégagement de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71714.0
GradeAlCrN
Product Number6706706
Product FamilyS717
Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706706
EAN7320760682555
File Type Download

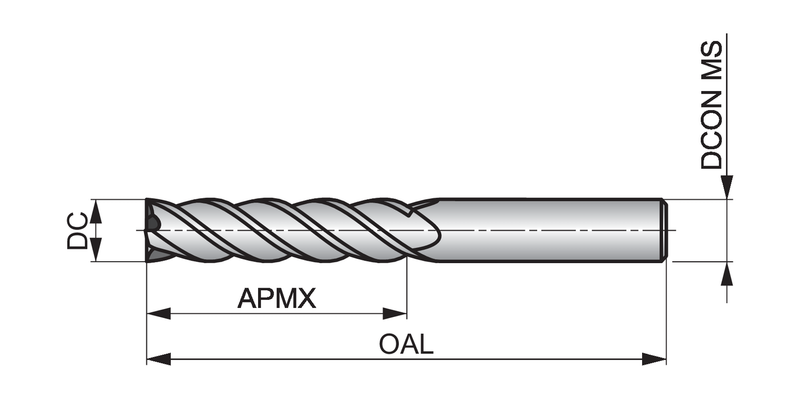

S71714.0 — Line Drawing PDF Download
