UGC DOR6706707
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$279.61 CAD - $279.61 CAD
$279.61 CAD
$279.61 CAD - $279.61 CAD
$279.61 CAD

Vendu en lots de : 1

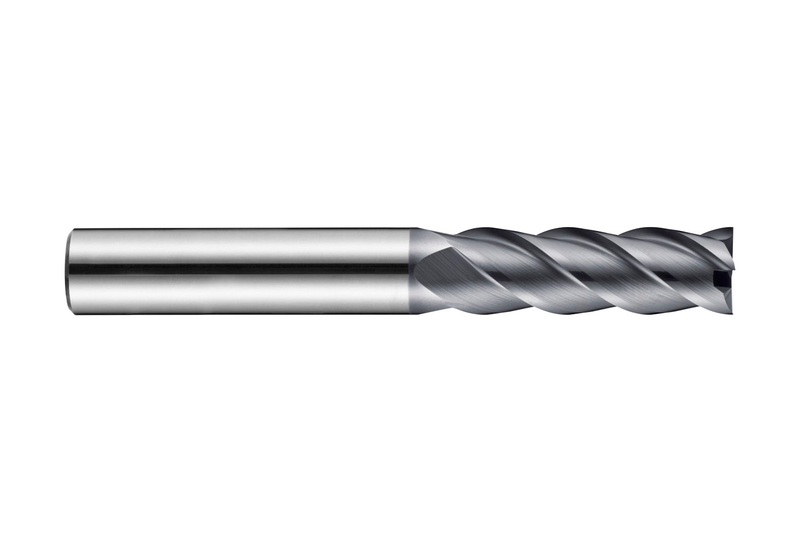

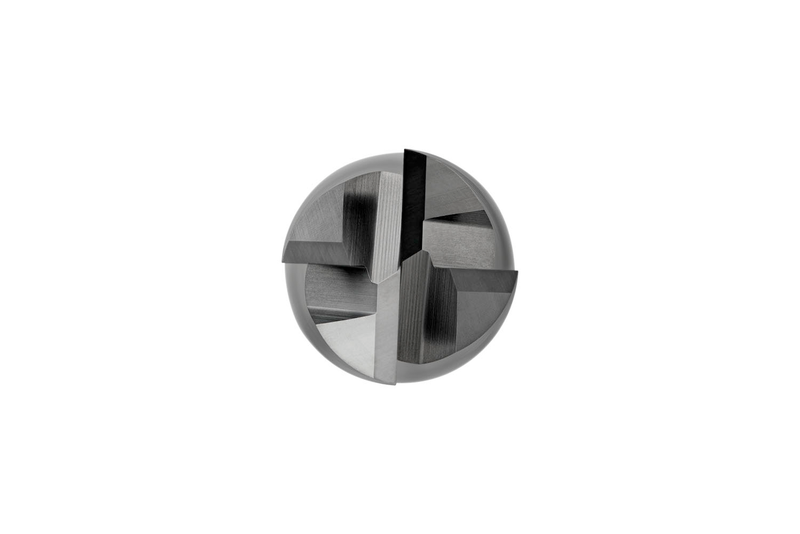

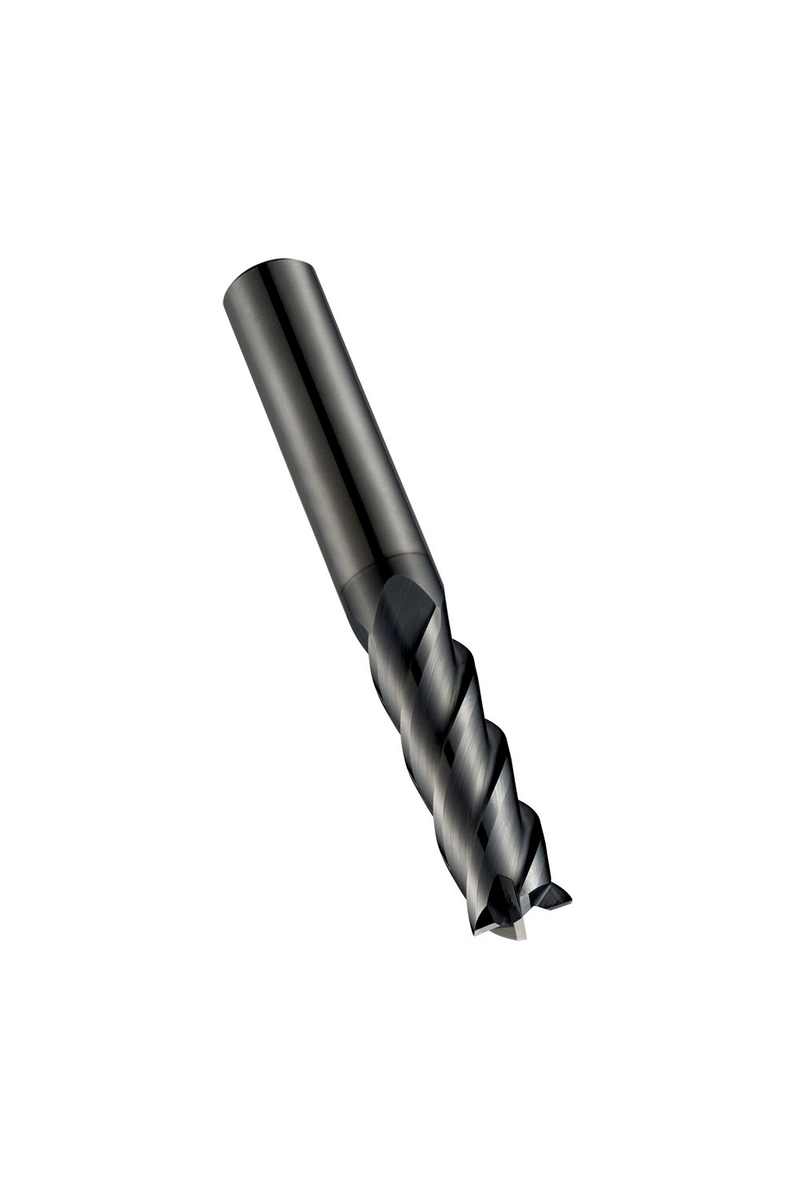

Fraise en bout série longue à 4 dents, diamètre 16mm, longueur de coupe 57mm et longueur totale 125mm, selon la norme DORMER avec une queue cylindrique de 16mm, en carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71716.0
GradeAlCrN
Product Number6706707
Product FamilyS717
Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm

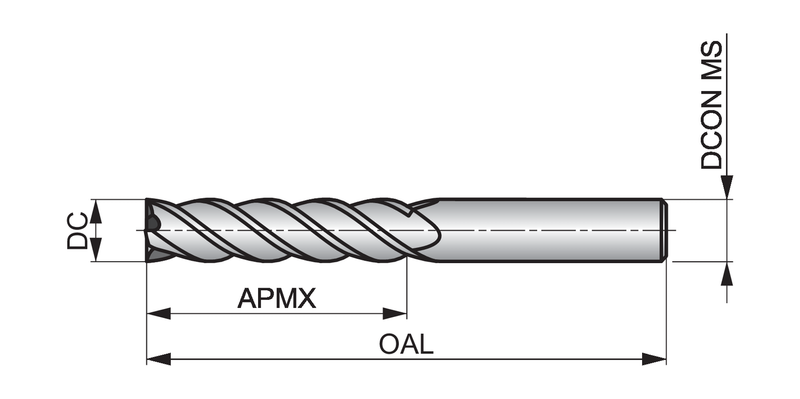

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706707
EAN7320760682562
File Type Download
S71716.0 — Line Drawing PDF Download
