S5231.5XR0.2
S5231.5XR0.2
S5231.5XR0.2
S5231.5XR0.2

S5231.5XR0.2

UGC DOR6706724
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.81 CAD - $79.81 CAD
$79.81 CAD
$79.81 CAD - $79.81 CAD
$79.81 CAD

Vendu en lots de : 1

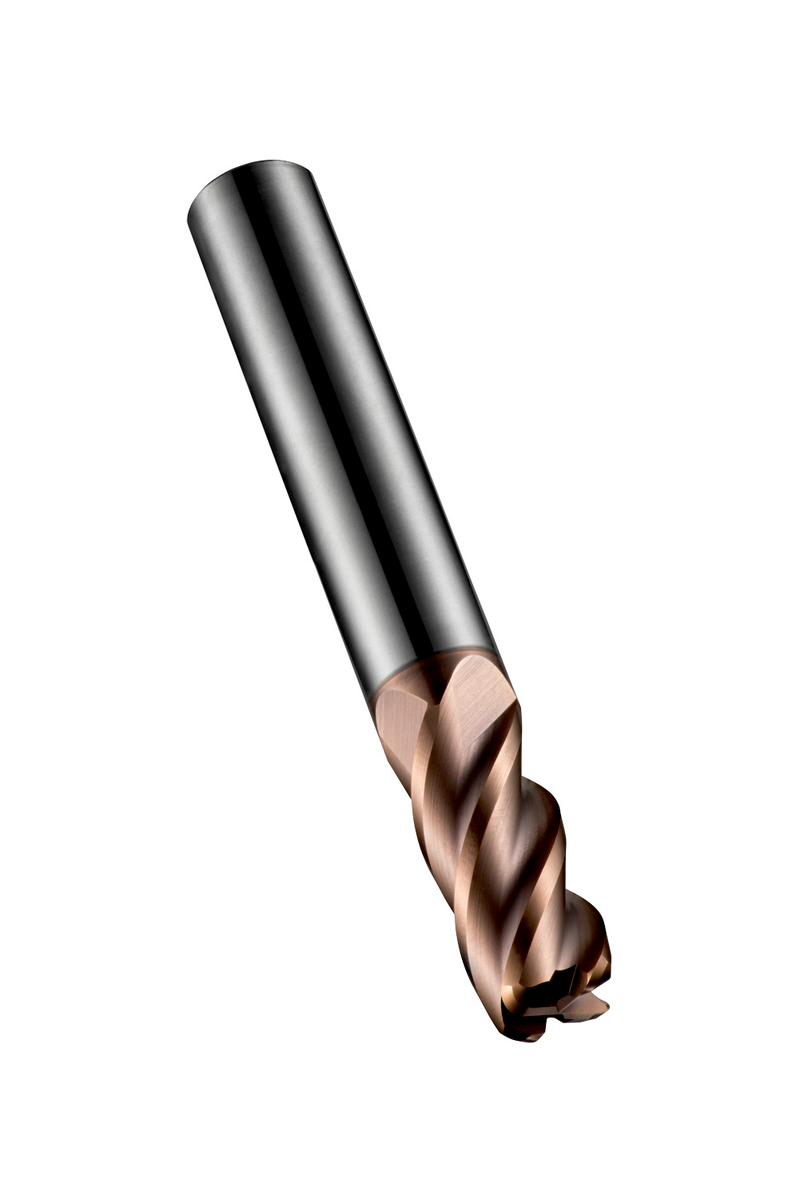

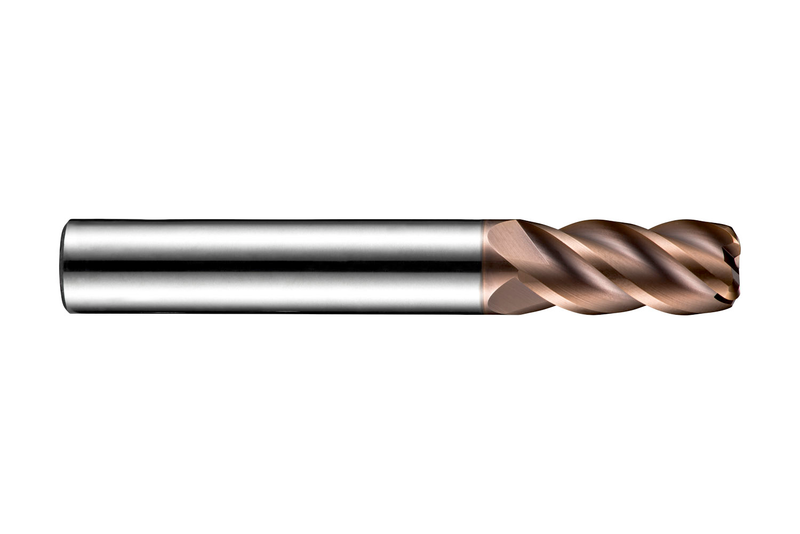

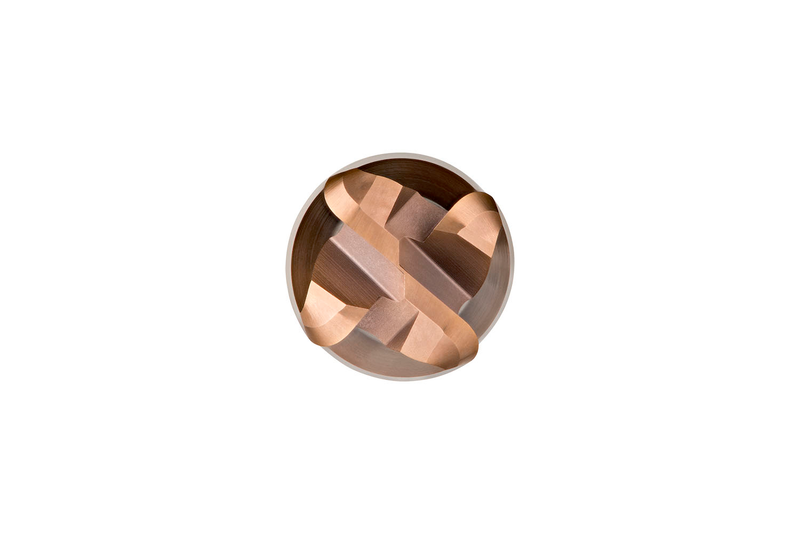

Fraise en carbure monobloc à queue cylindrique, à rayons de coin, série courte, 4 arêtes de coupe, diamètre 1,5 mm, longueur de coupe 4,5 mm, longueur totale 50 mm et rayons de coin 0,2 mm, conforme à la norme DORMER, avec queue de 6 mm, revêtement TiSiN, hélice à 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le plongement progressif, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5231.5XR0.2
GradeTiSiN
Product Number6706724
Product FamilyS523

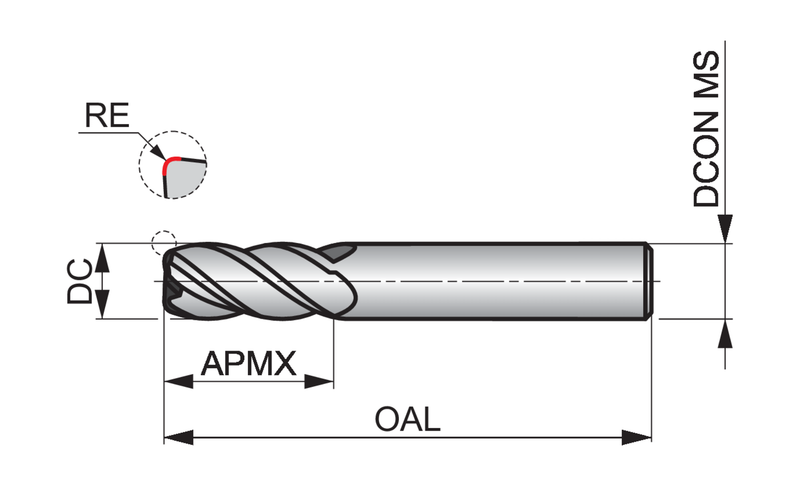

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.1772"
Depth of Cut Max — mm (APMX)4.5 mm
Dimensions
Cutting Diameter — in (DC)0.0591"
Cutting Diameter — mm (DC)1.5 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706724
EAN7320760682739
File Type Download
S5231.5XR0.2 — Line Drawing PDF Download
