UGC DOR6706725
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.64 CAD - $76.64 CAD
$76.64 CAD
$76.64 CAD - $76.64 CAD
$76.64 CAD

Vendu en lots de : 1

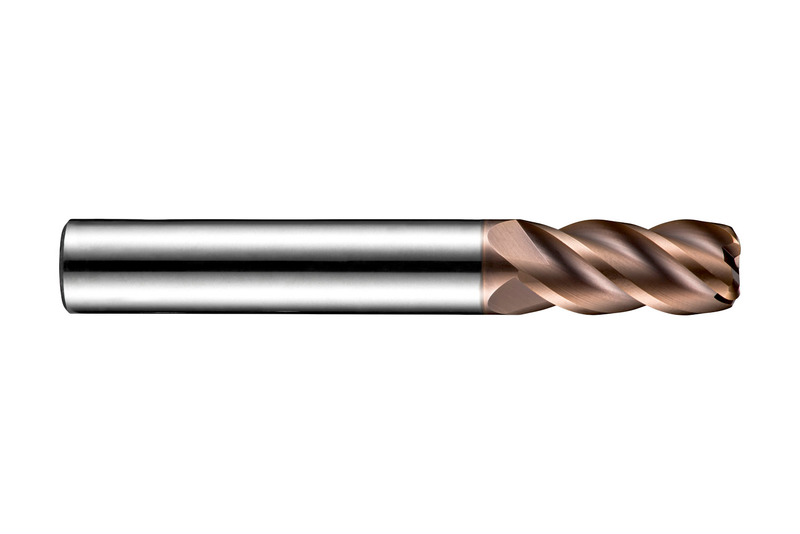

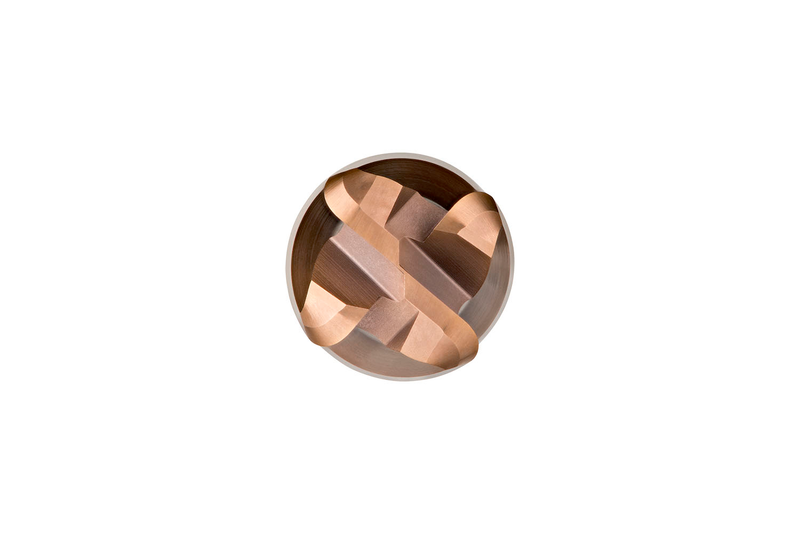

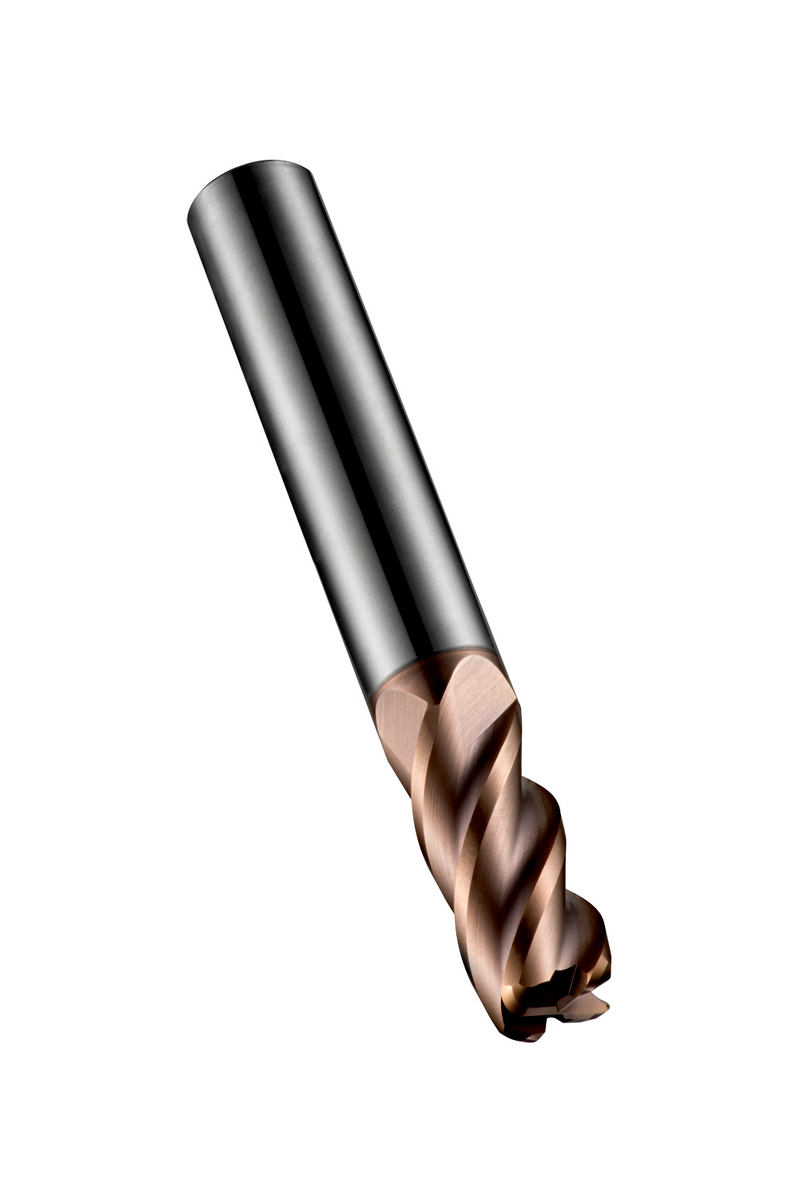

Fraise en bout à rayon d'angle série courte 4 dents, diamètre 2 mm avec une longueur de coupe de 6,5 mm, une longueur totale de 50 mm et un rayon d'angle de 0,2 mm, selon la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le plongement, le plongement progressif, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5232.0XR0.2
GradeTiSiN
Product Number6706725
Product FamilyS523

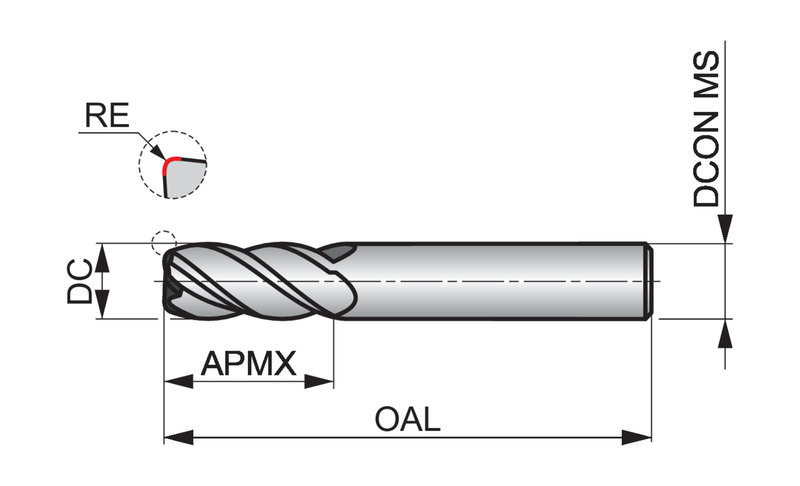

Insert Geometry
Corner Radius — in (RE)0.0079"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.2559"
Depth of Cut Max — mm (APMX)6.5 mm
Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706725
EAN7320760682746
File Type Download
S5232.0XR0.2 — Line Drawing PDF Download
