UGC DOR6706748
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$158.04 CAD - $158.04 CAD
$158.04 CAD
$158.04 CAD - $158.04 CAD
$158.04 CAD

Vendu en lots de : 1

Fraise en bout à rayon d'angle série courte 4 dents, diamètre 10mm avec 22mm longueur de coupe, 70mm longueur totale et 2mm rayons d'angle, selon standard DORMER avec queue cylindrique 10mm, carbure monobloc avec revêtement TiSiN, hélice 40° et angle de dépouille -6° pour l'usinage en bout, le plongement, le plongement progressif, l'usinage en rampe et l'usinage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52310.0XR2.0
GradeTiSiN
Product Number6706748
Product FamilyS523
Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706748
EAN7320760682975
File Type Download

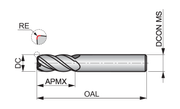

S52310.0XR2.0 — Line Drawing PDF Download
