UGC DOR6706751
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.83 CAD - $218.83 CAD
$218.83 CAD
$218.83 CAD - $218.83 CAD
$218.83 CAD

Vendu en lots de : 1

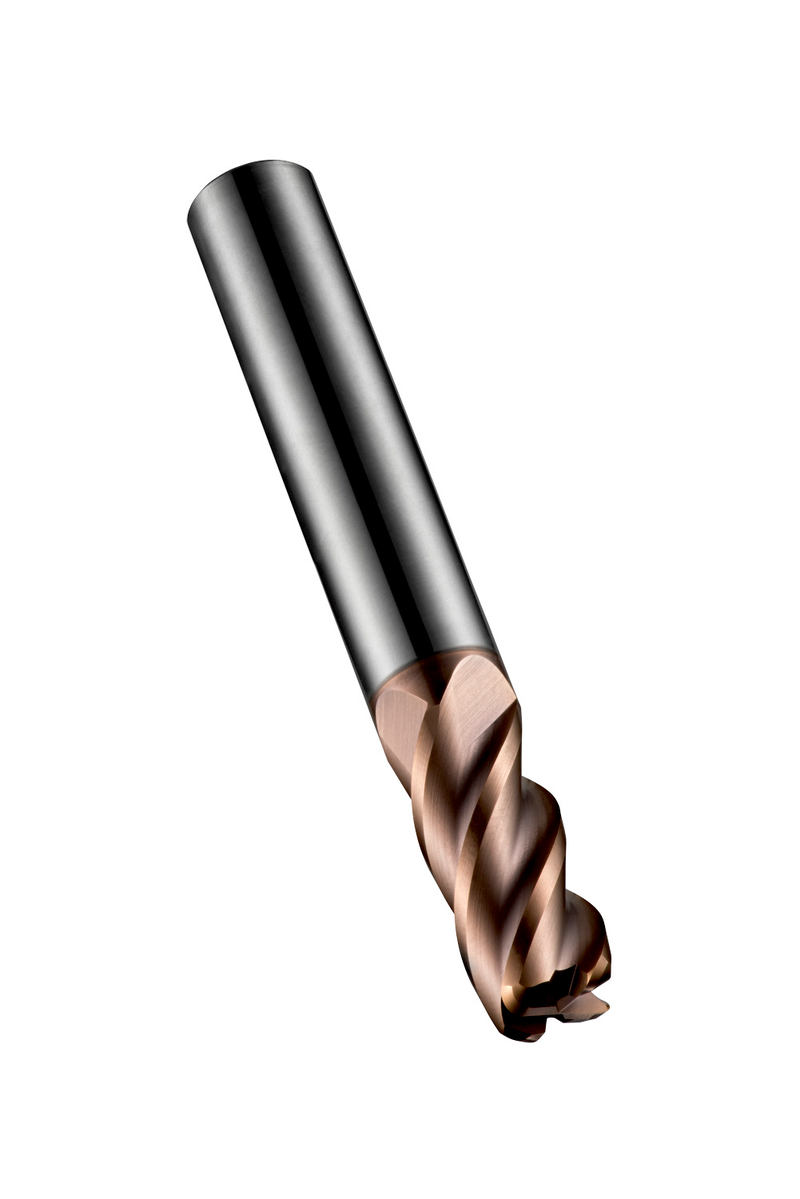

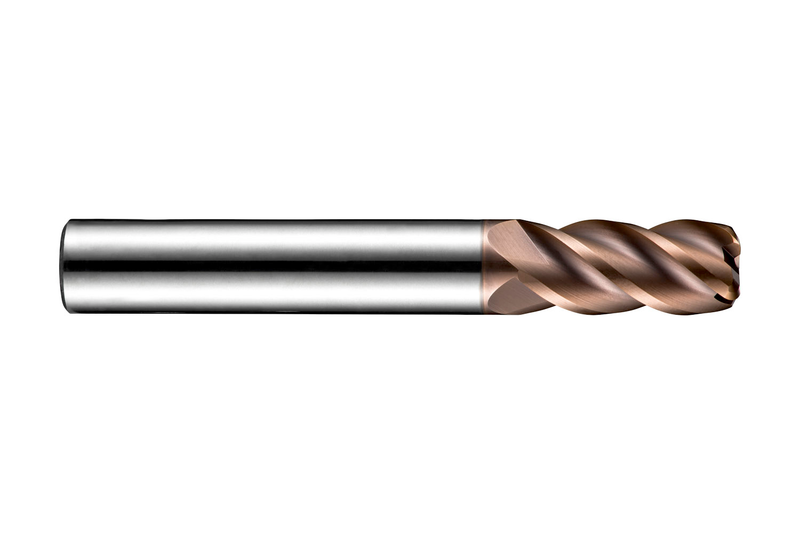

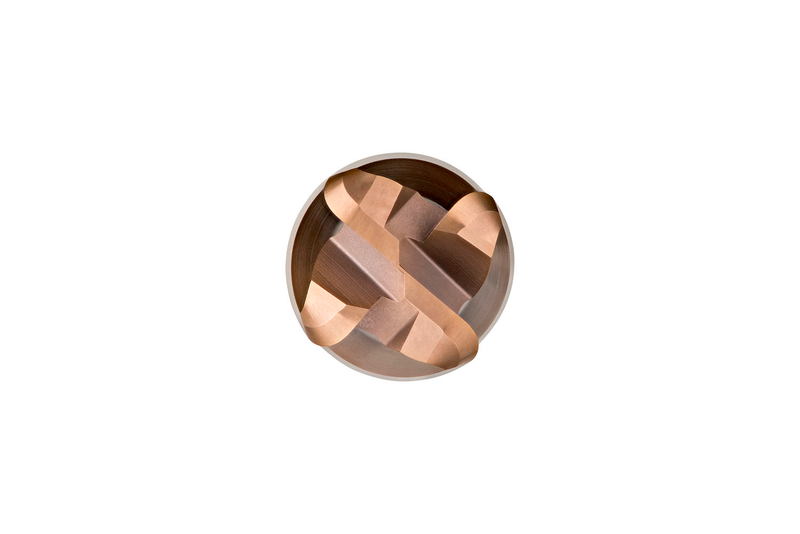

Fraise 4 dents en carbure monobloc, revêtement TiSiN, série courte, rayon de coin 0.5mm, diamètre 12mm, longueur de coupe 25mm, longueur totale 75mm, selon norme DORMER avec queue cylindrique 12mm, hélice 40° et angle de dépouille -6°, pour l'usinage d'épaulements, le plongement, le plongement progressif, l'usinage en ramping et l'usinage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52312.0XR0.5
GradeTiSiN
Product Number6706751
Product FamilyS523

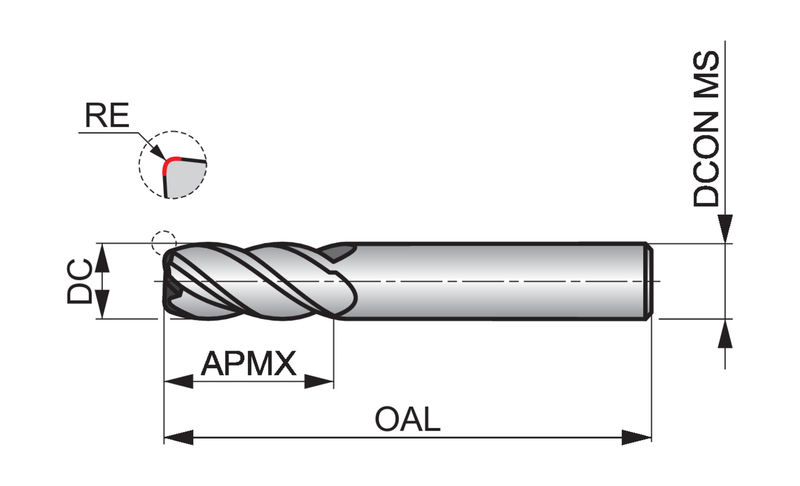

Insert Geometry
Corner Radius — in (RE)0.0197"
Corner Radius — mm (RE)0.5 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706751
EAN7320760683002
File Type Download
S52312,0XR0,5 — Line Drawing PDF Download
