UGC DOR6706752
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.83 CAD - $218.83 CAD
$218.83 CAD
$218.83 CAD - $218.83 CAD
$218.83 CAD

Vendu en lots de : 1

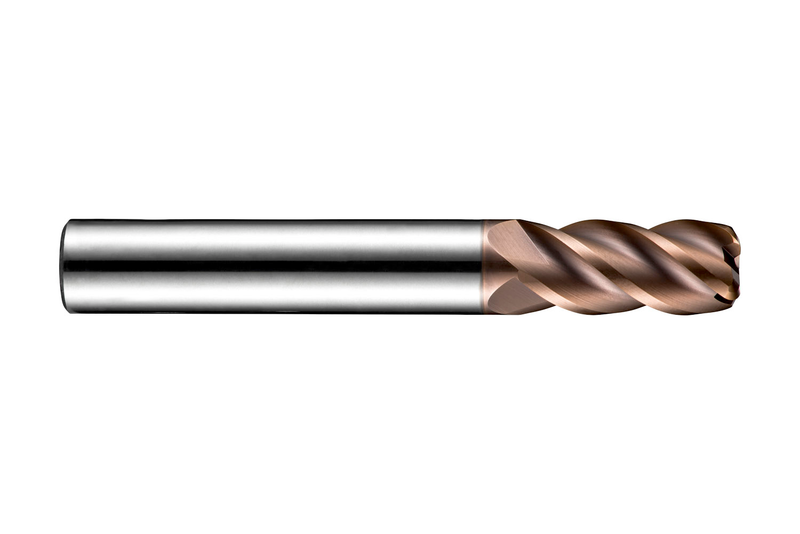

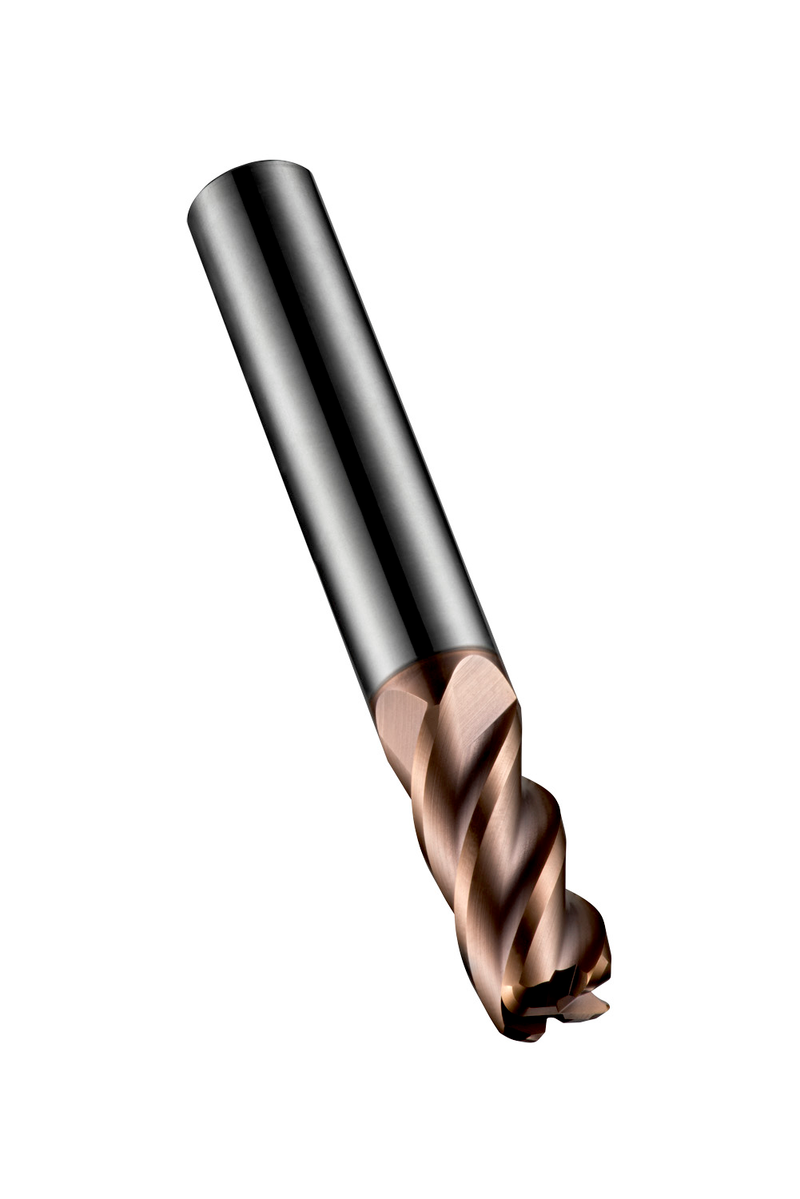

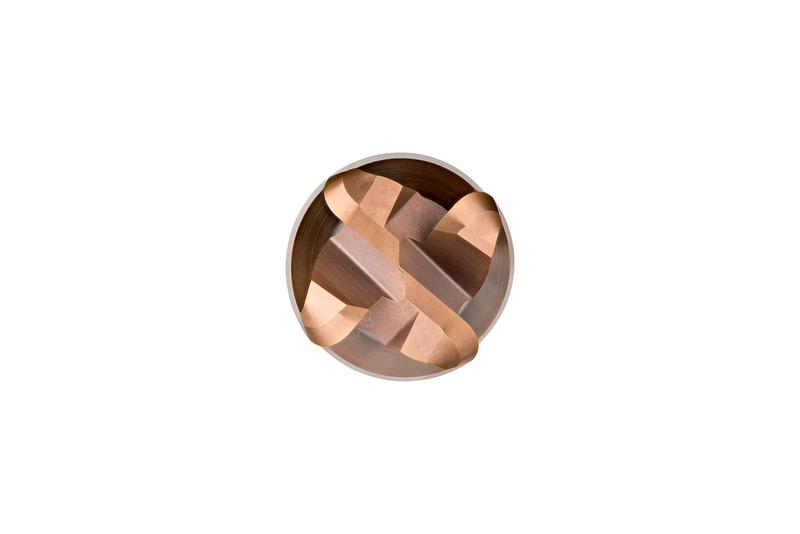

Fraise d'ébauche à rayon de coin, série courte, 4 arêtes, diamètre 12 mm avec une longueur de coupe de 25 mm, une longueur totale de 75 mm et un rayon de coin de 2 mm, selon la norme DORMER avec une queue cylindrique de 12 mm, carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulements, le plongement, le fraisage en plongée progressive, le fraisage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52312.0XR2.0
GradeTiSiN
Product Number6706752
Product FamilyS523

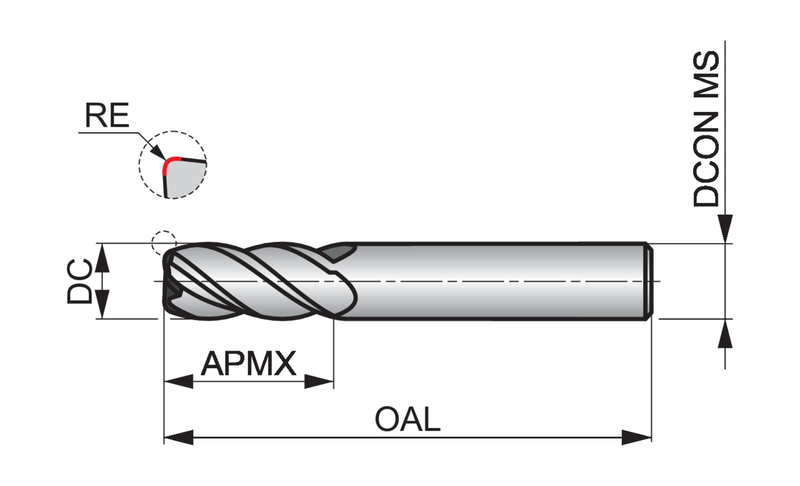

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706752
EAN7320760683019
File Type Download
S52312.0XR2.0 — Line Drawing PDF Download
