UGC DOR6706753
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.83 CAD - $218.83 CAD
$218.83 CAD
$218.83 CAD - $218.83 CAD
$218.83 CAD

Vendu en lots de : 1

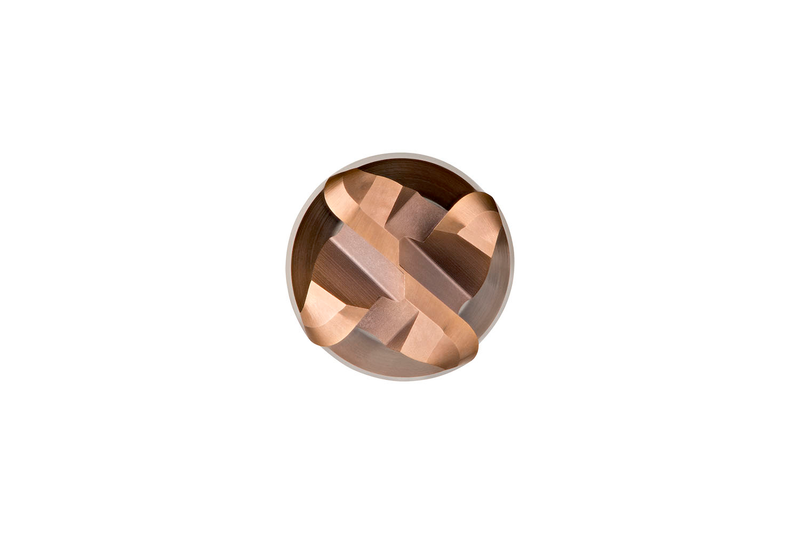

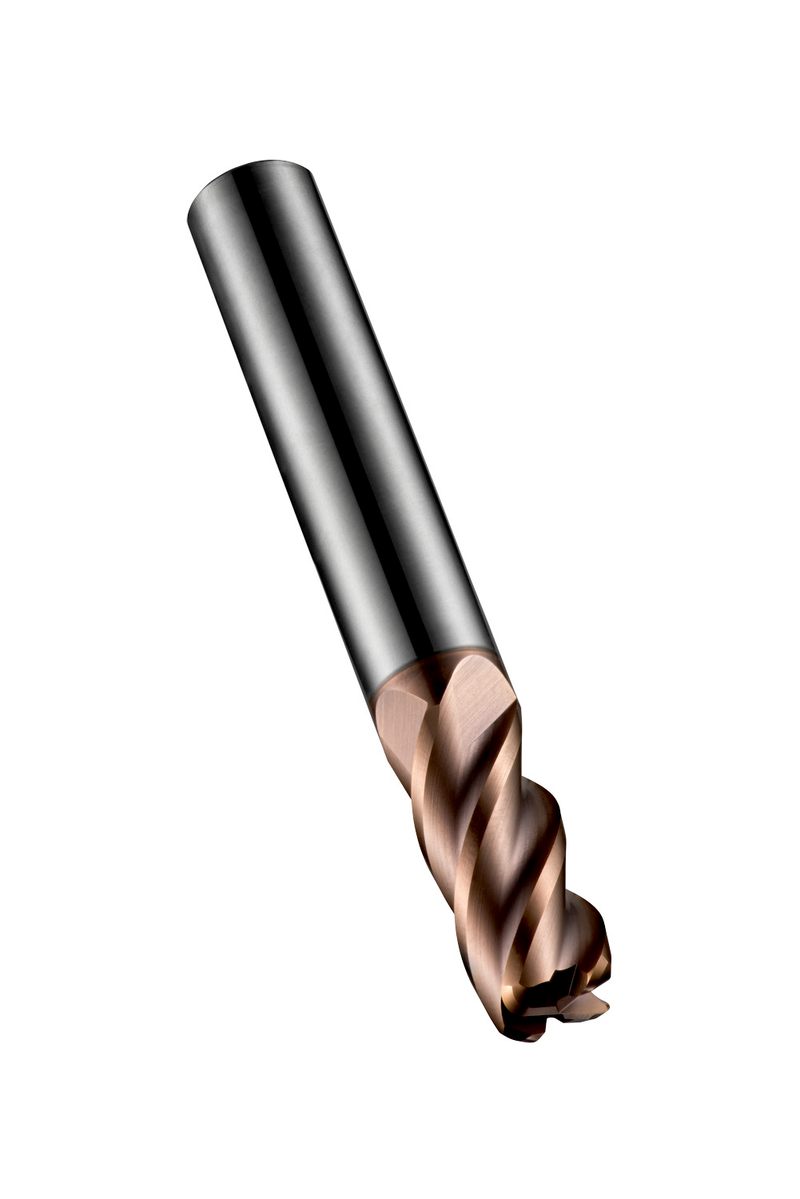

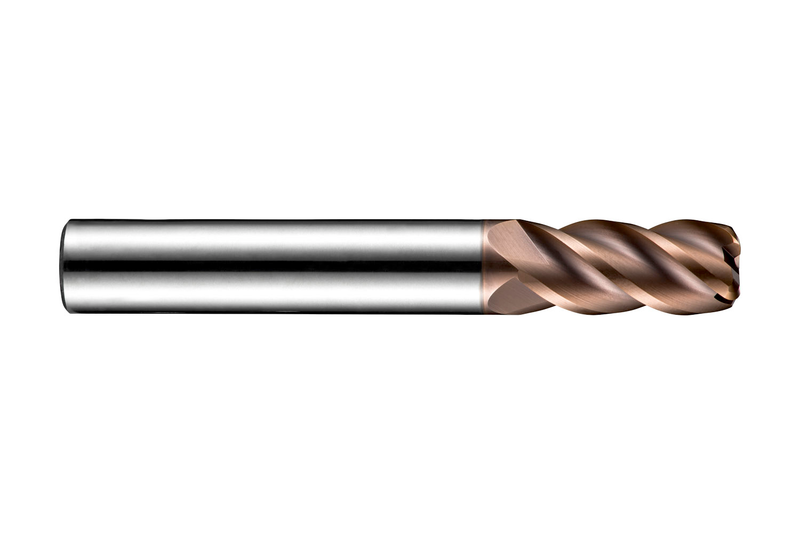

Fraise en bout à rayon de coin, série courte, 4 arêtes de coupe, diamètre 12mm avec une longueur de coupe de 25mm, une longueur totale de 75mm et un rayon de coin de 3mm, conforme à la norme DORMER avec une queue cylindrique de 12mm, en carbure monobloc avec revêtement TiSiN, hélice de 40° et angle de dépouille de -6° pour le fraisage d'épaulement, le plongement, le plongement progressif, l'interpolation hélicoïdale et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52312.0XR3.0
GradeTiSiN
Product Number6706753
Product FamilyS523

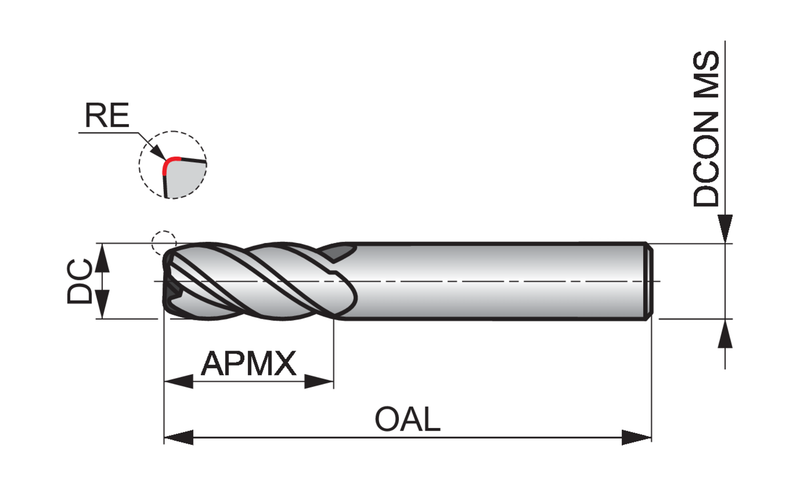

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706753
EAN7320760683026
File Type Download
S52312.0XR3.0 — Line Drawing PDF Download
