UGC DOR6706769
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.94 CAD - $72.94 CAD
$72.94 CAD
$72.94 CAD - $72.94 CAD
$72.94 CAD

Vendu en lots de : 1

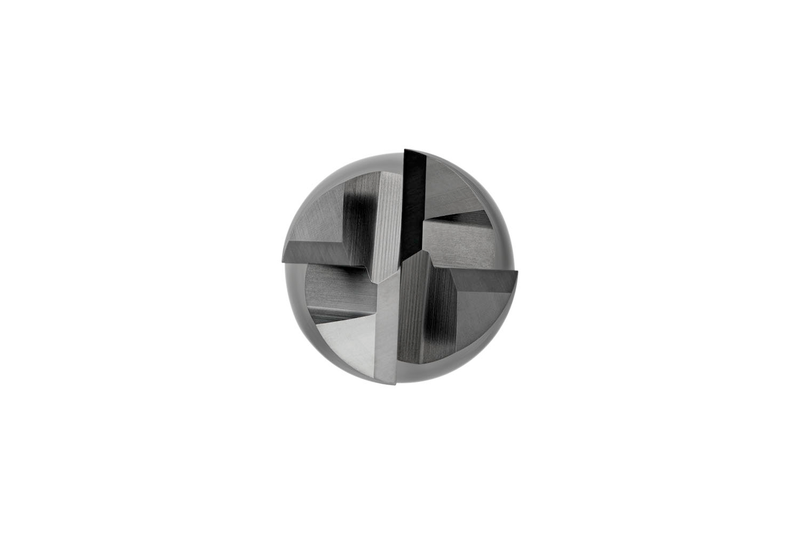

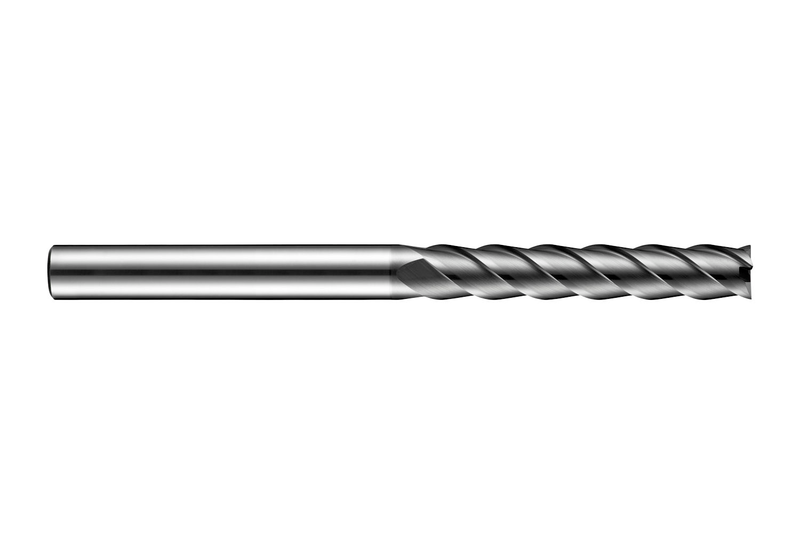

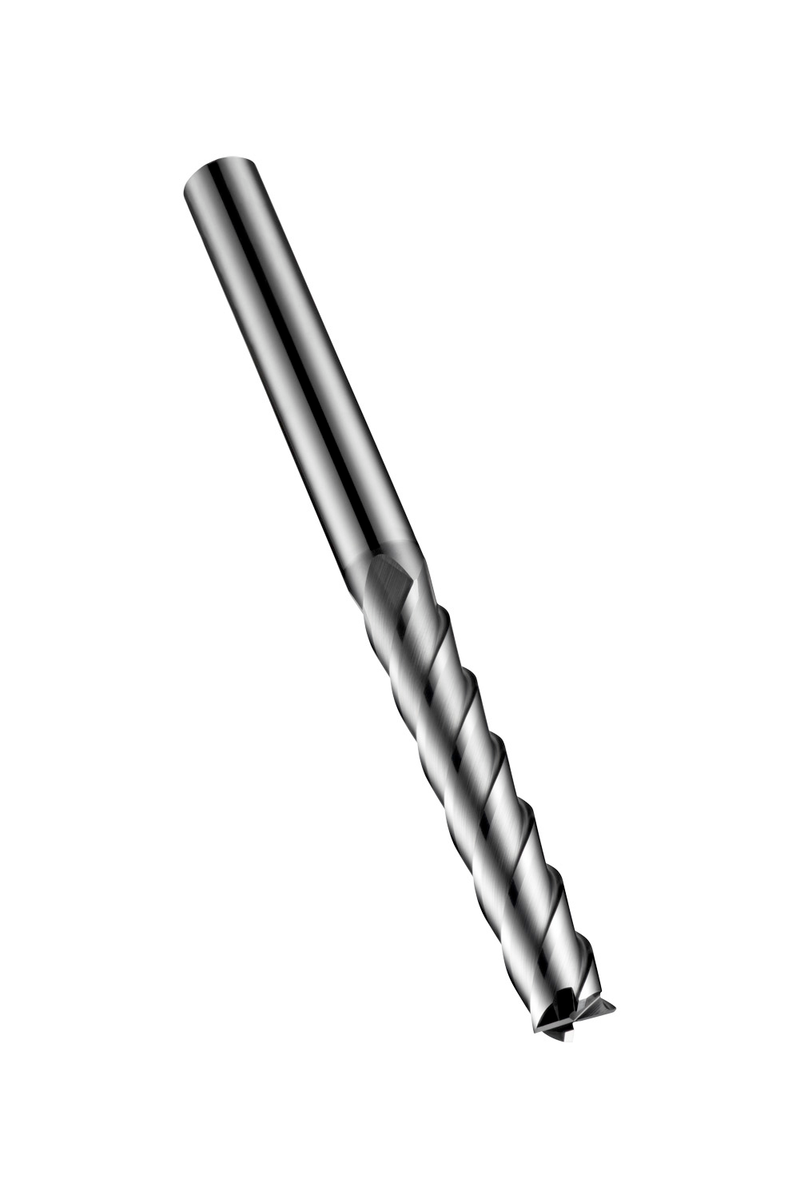

Fraise en bout extra-longue 4 coupes, diamètre 3 mm avec longueur de coupe de 25 mm et longueur totale de 100 mm, selon la norme DORMER avec une queue cylindrique de 3 mm, carbure monobloc avec revêtement AlCrN, hélice à 40° et angle de dépouille de 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, les aciers inoxydables ferritiques, martensitiques et austénitiques, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7183.0
GradeAlCrN
Product Number6706769
Product FamilyS718

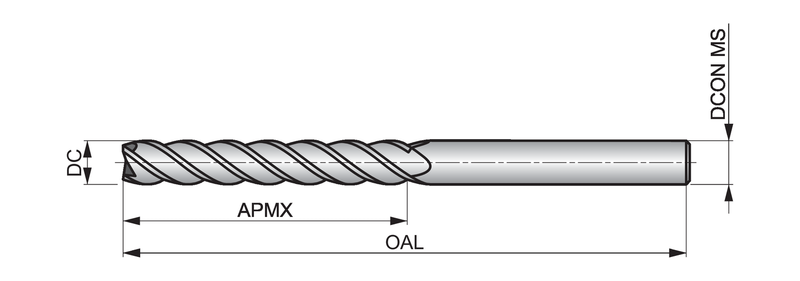

Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706769
EAN7320760683187
File Type Download
S7183.0 — Line Drawing PDF Download
