UGC DOR6706776
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$259.53 CAD - $259.53 CAD
$259.53 CAD
$259.53 CAD - $259.53 CAD
$259.53 CAD

Vendu en lots de : 1

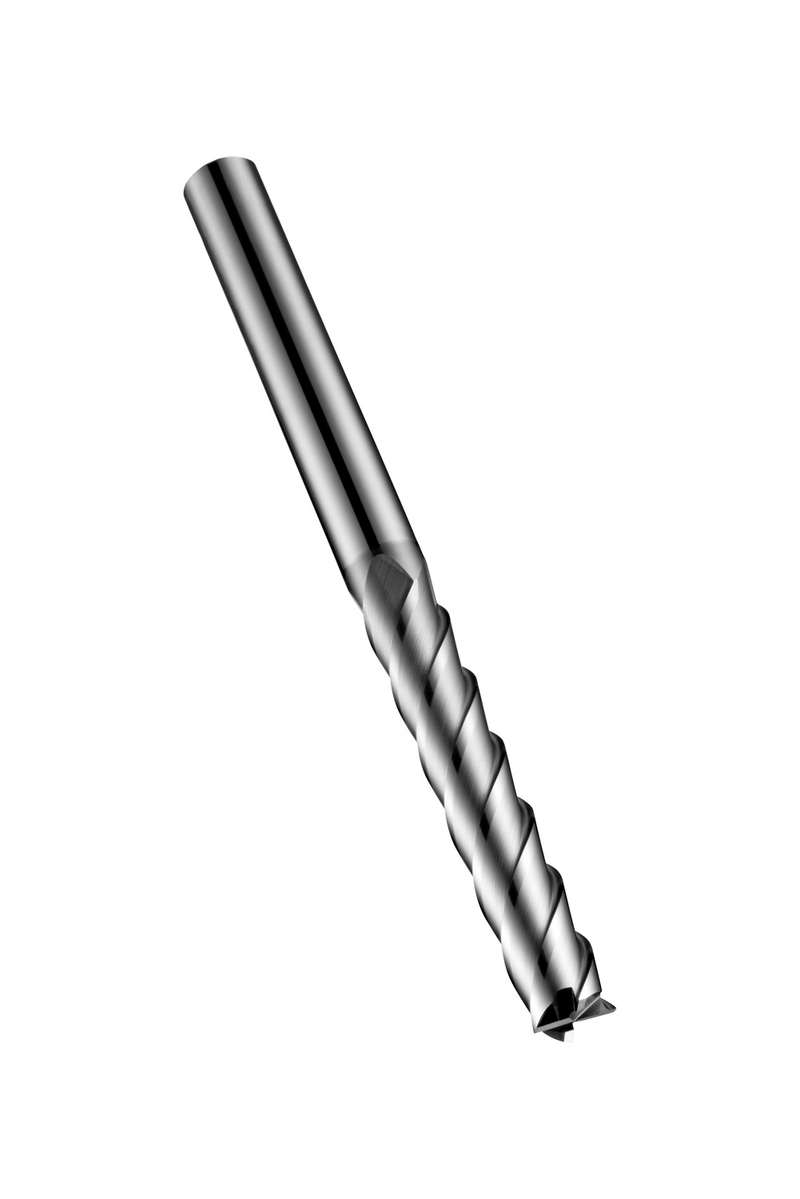

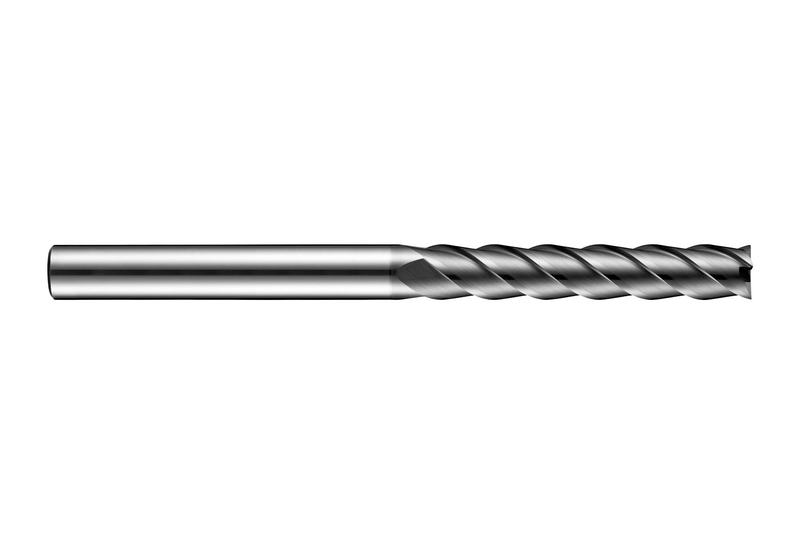

Fraise en bout série extra longue 4 dents, diamètre 14 mm, longueur de coupe 75 mm et longueur totale 150 mm, selon la norme DORMER avec une queue cylindrique 14 mm, carbure monobloc avec revêtement AlCrN, hélice de 40° et angle de dépouille de 10° pour le fraisage en plongée dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71814.0
GradeAlCrN
Product Number6706776
Product FamilyS718
Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm

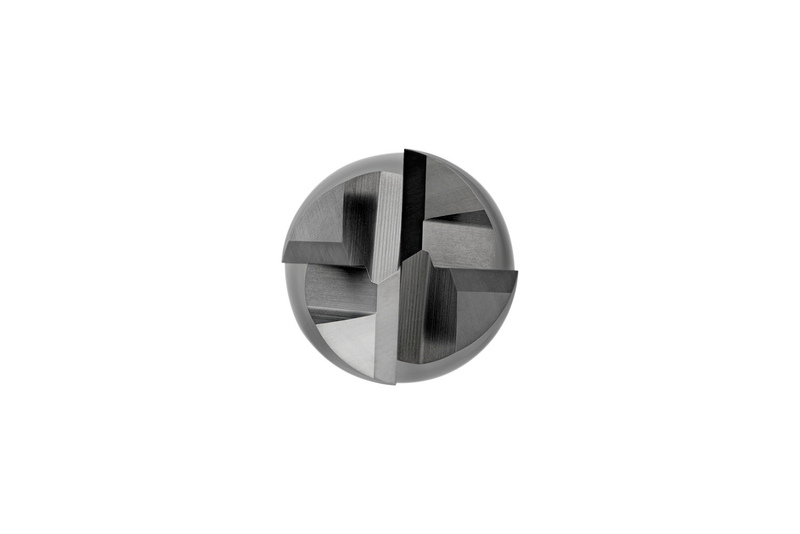

Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706776
EAN7320760683255
File Type Download

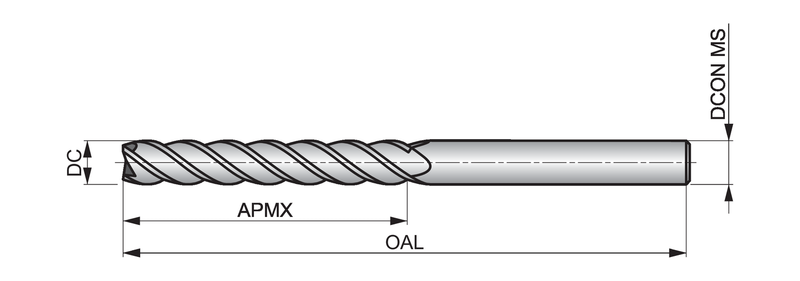

S71814.0 — Line Drawing PDF Download
