UGC DOR6706779
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$526.99 CAD - $526.99 CAD
$526.99 CAD
$526.99 CAD - $526.99 CAD
$526.99 CAD

Vendu en lots de : 1

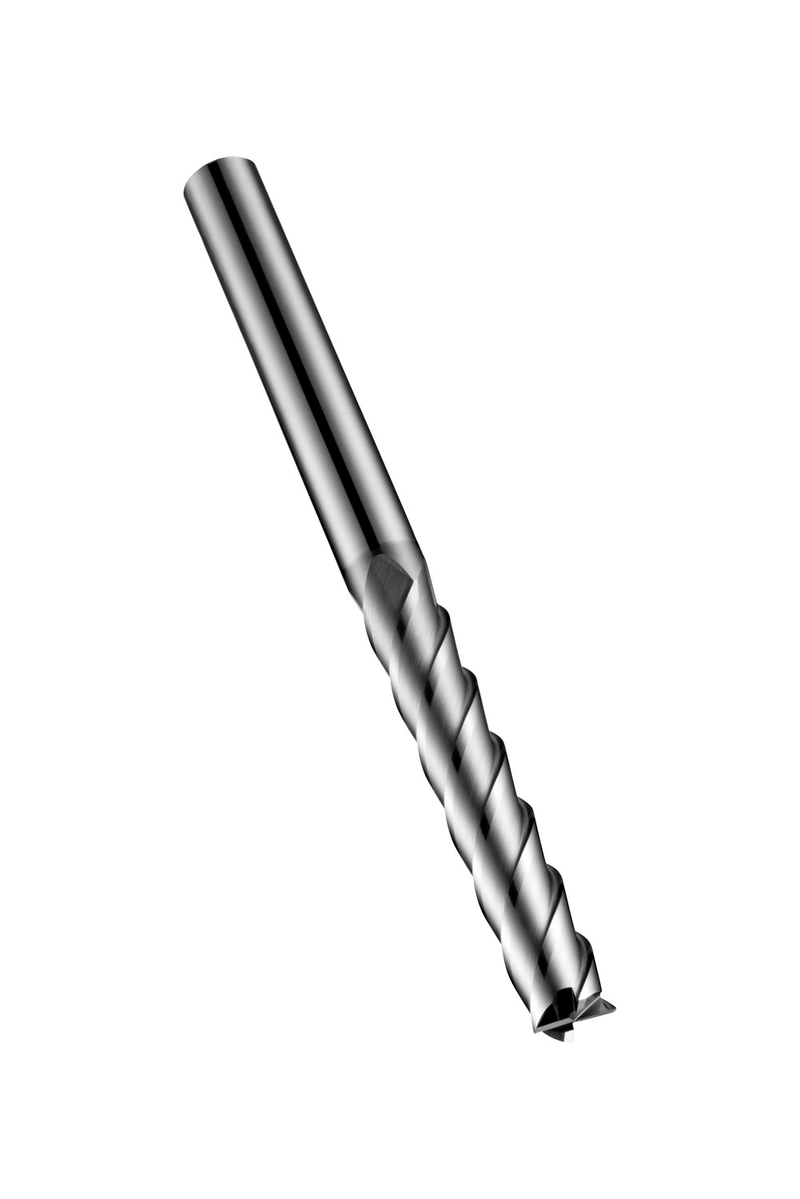

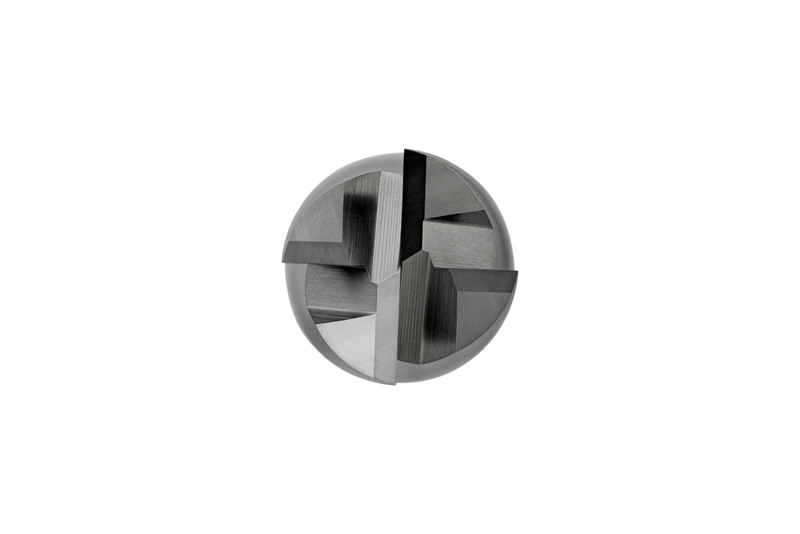

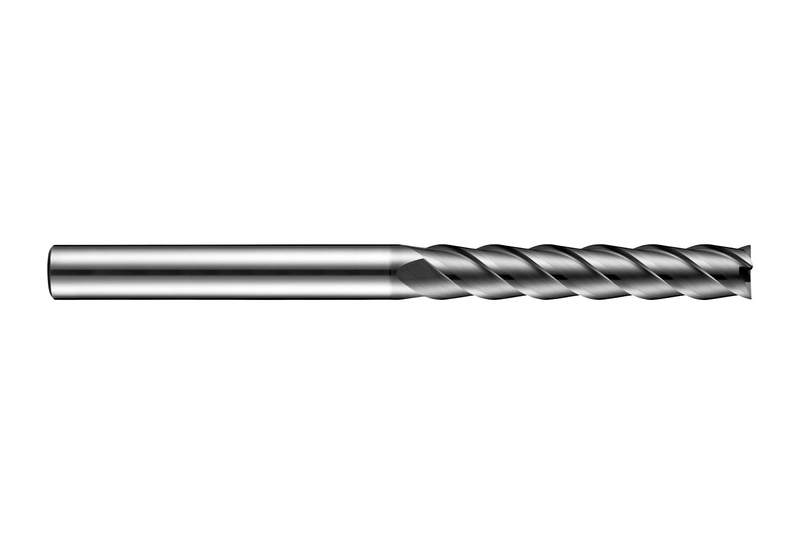

Fraise 4 dents série extra longue, diamètre 20mm, longueur de coupe 75mm et longueur totale 150mm, selon standard DORMER avec queue cylindrique 20mm, en carbure monobloc avec revêtement AlCrN, hélice 40° et angle de dépouille 10° pour le fraisage d'épaulements dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S71820.0
GradeAlCrN
Product Number6706779
Product FamilyS718
Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm

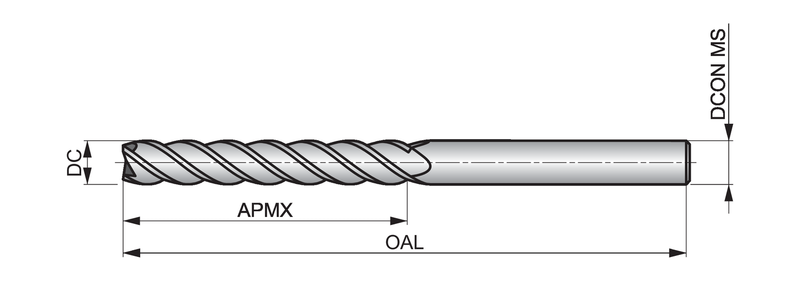

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706779
EAN7320760683286
File Type Download
S71820.0 — Line Drawing PDF Download
