UGC DOR6706780
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.06 CAD - $75.06 CAD
$75.06 CAD
$75.06 CAD - $75.06 CAD
$75.06 CAD

Vendu en lots de : 1

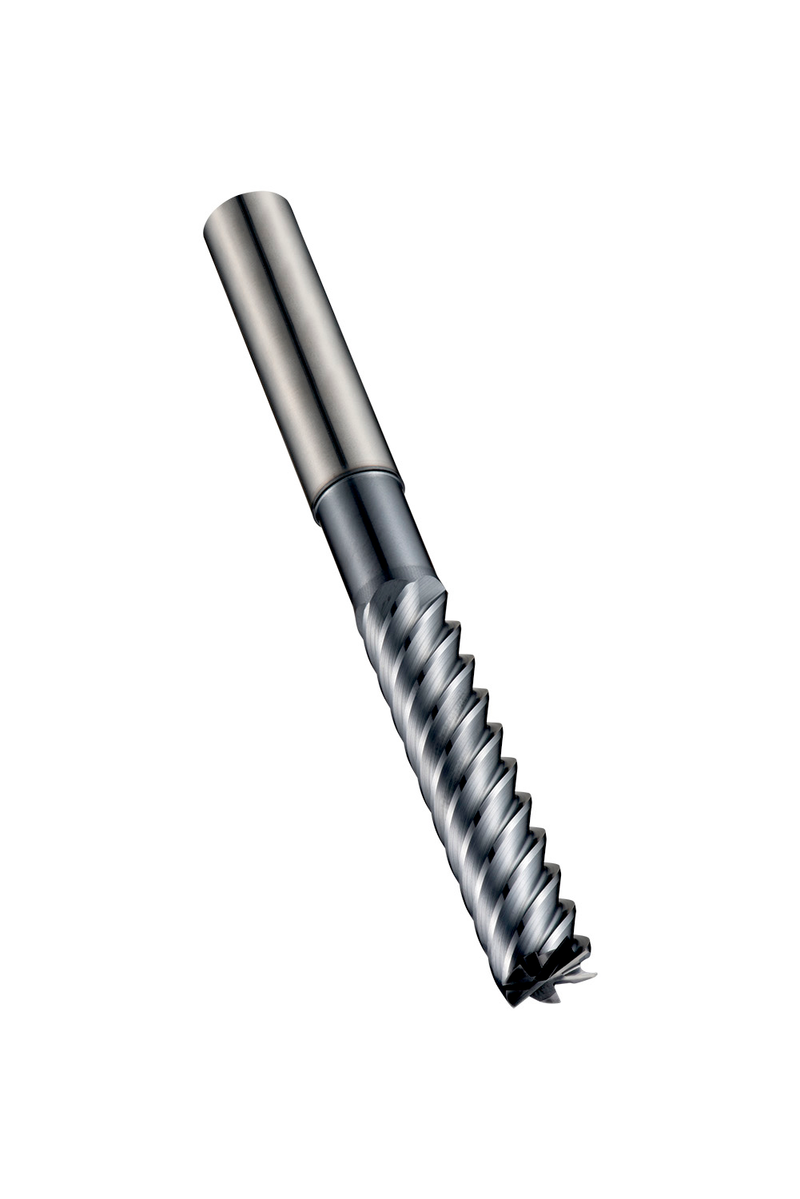

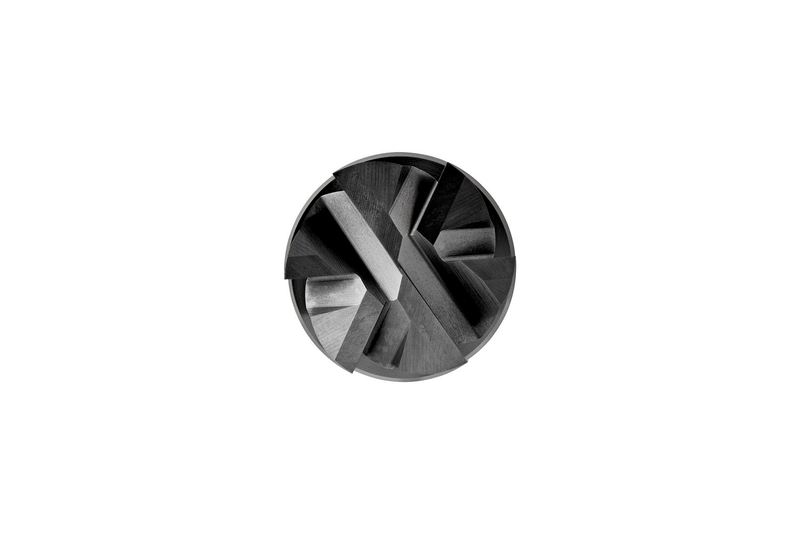

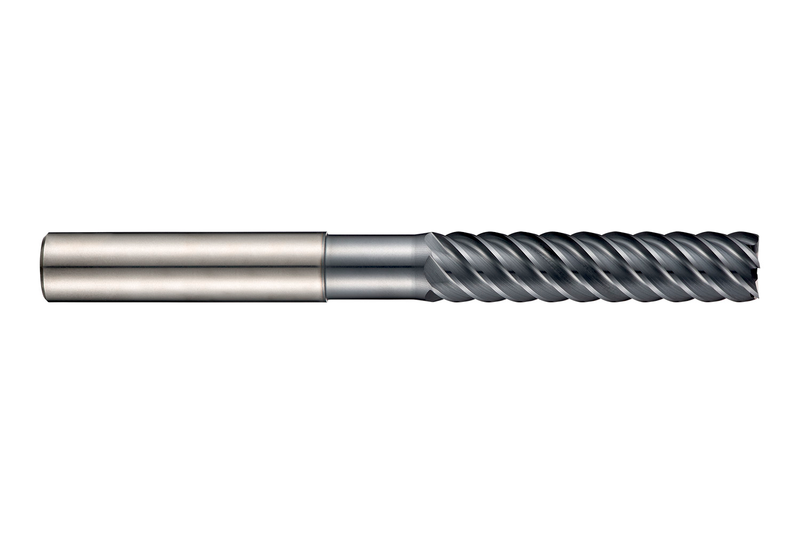

Fraise de finition longue série 6 dents, diamètre 3 mm, longueur de coupe 19 mm, longueur totale 75 mm et portée 30 mm avec dégagement, selon la norme DORMER avec une queue cylindrique 6 mm, carbure monobloc avec revêtement AlTiN, hélice 50° et angle de dépouille 3° pour le fraisage d'épaulement dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, duplex ou à durcissement par précipitation et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2263.0
GradeAlTiN
Product Number6706780
Product FamilyS226

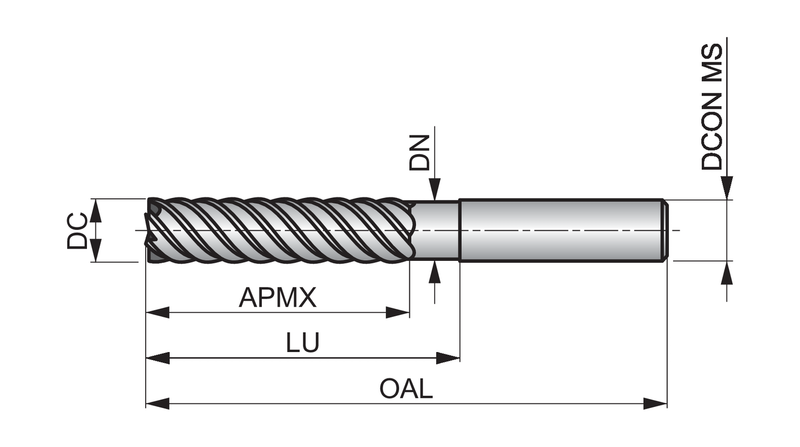

Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706780
EAN7320760683293
File Type Download
S2263.0 — Line Drawing PDF Download
