UGC DOR6706781
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$81.93 CAD - $81.93 CAD
$81.93 CAD
$81.93 CAD - $81.93 CAD
$81.93 CAD

Vendu en lots de : 1

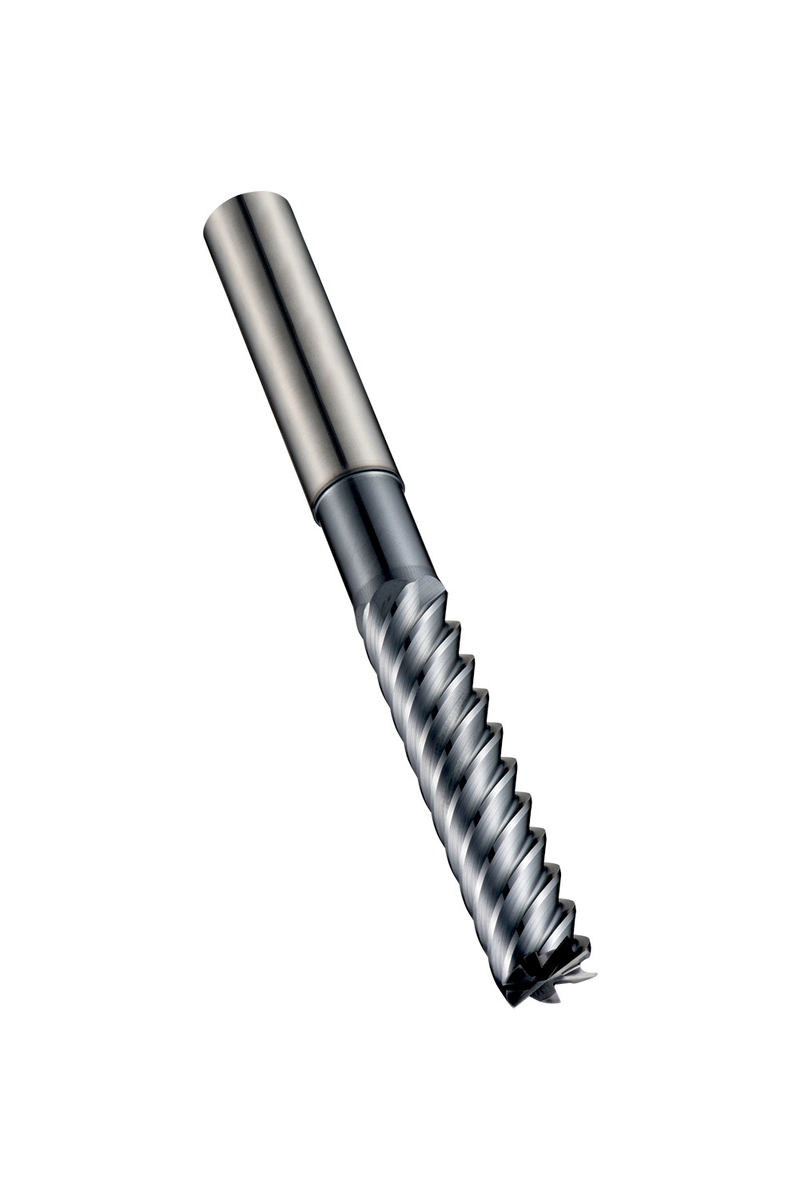

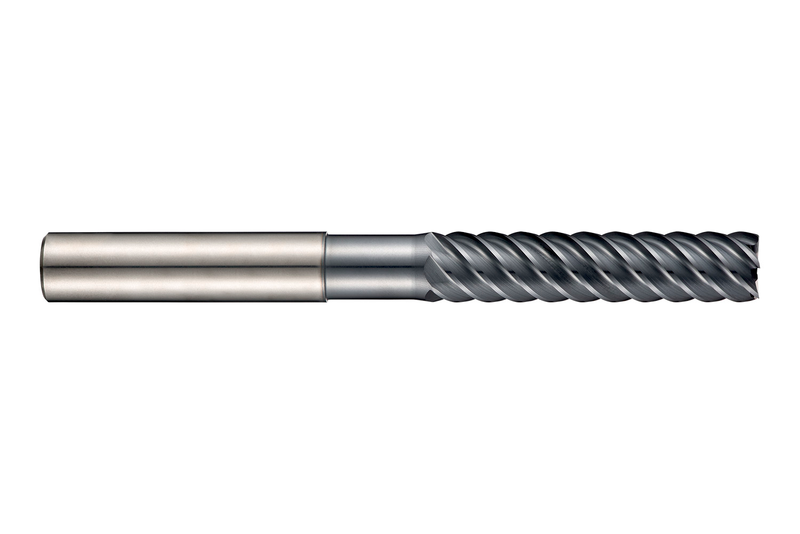

Fraise 6 dents à long rayon pour finition, diamètre 4mm, longueur de coupe 19mm, longueur totale 75mm et portée de 32mm avec dégagement de col, selon la norme DORMER avec une queue cylindrique 6mm, en carbure monobloc avec revêtement AlTiN, hélice 50° et angle de dépouille 3° pour le fraisage d'épaulement dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2264.0
GradeAlTiN
Product Number6706781
Product FamilyS226
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

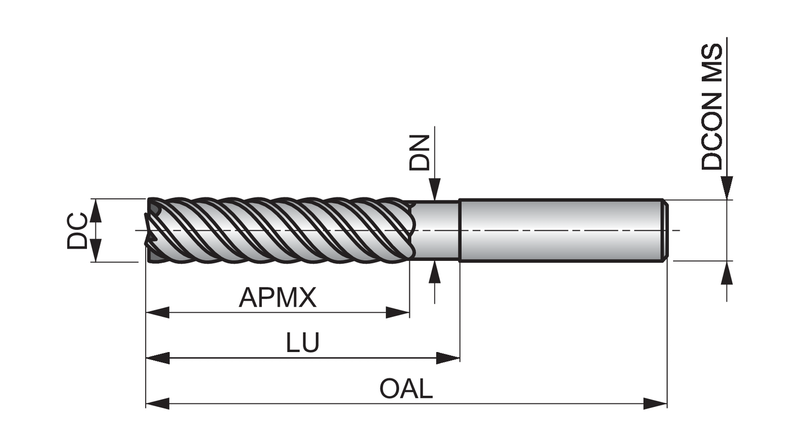

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

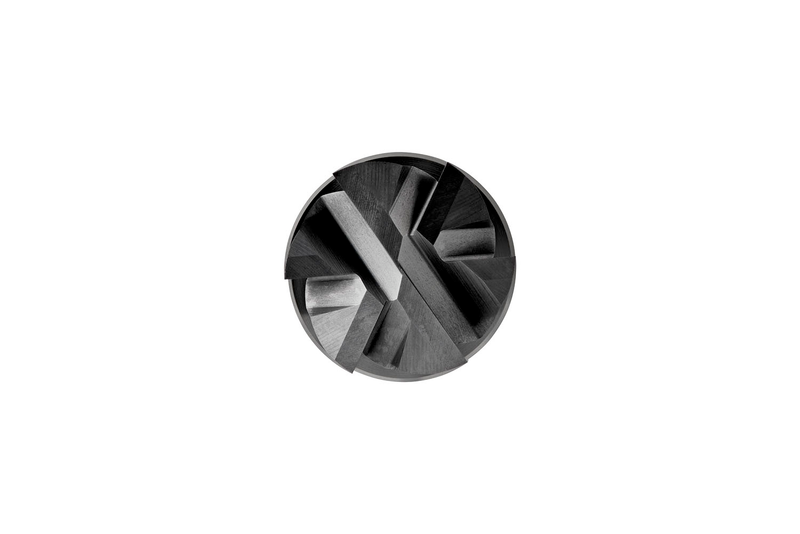

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706781
EAN7320760683309
File Type Download
S2264.0 — Line Drawing PDF Download
