UGC DOR6706788
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$452.99 CAD - $452.99 CAD
$452.99 CAD
$452.99 CAD - $452.99 CAD
$452.99 CAD

Vendu en lots de : 1

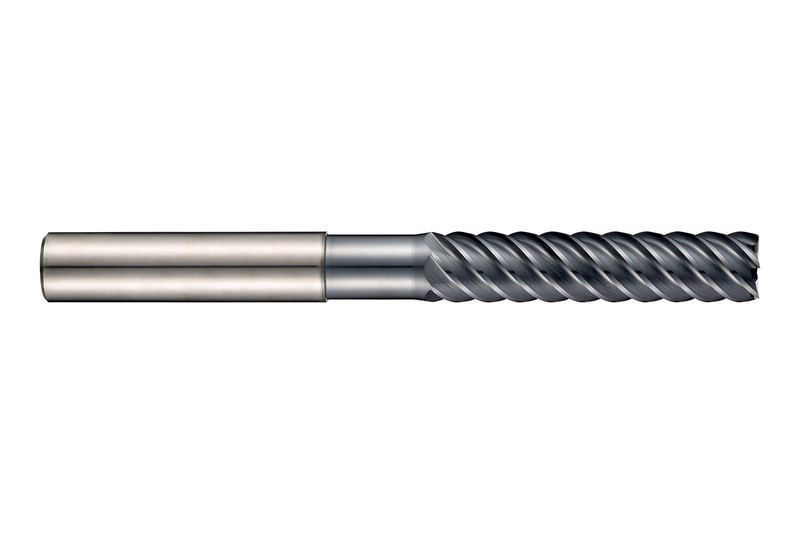

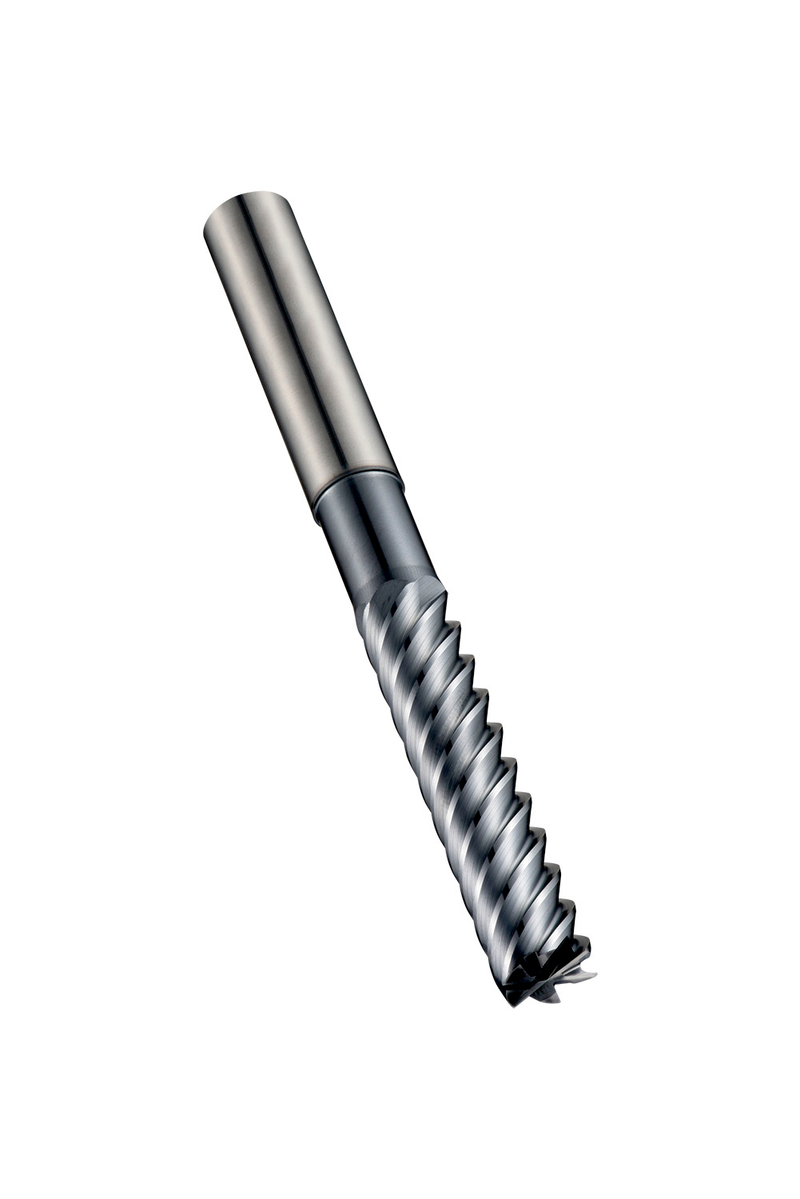

Fraise 8 dents extra-longue de finition, diamètre 18mm, longueur de coupe 57mm, longueur totale 125mm et dégagement de 85mm avec collet de dégagement, selon la norme DORMER avec un attachement cylindrique de 18mm, en carbure monobloc avec revêtement AlTiN, hélice à 50° et un angle de dépouille de 3° pour le fraisage d'épaulement dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S22618.0
GradeAlTiN
Product Number6706788
Product FamilyS226

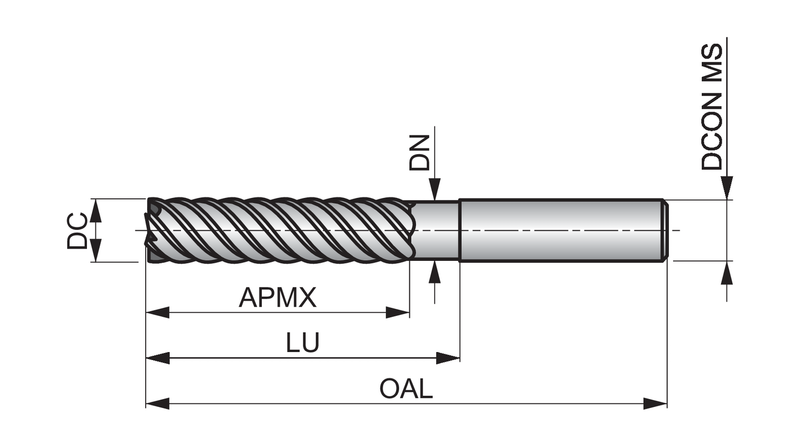

Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm

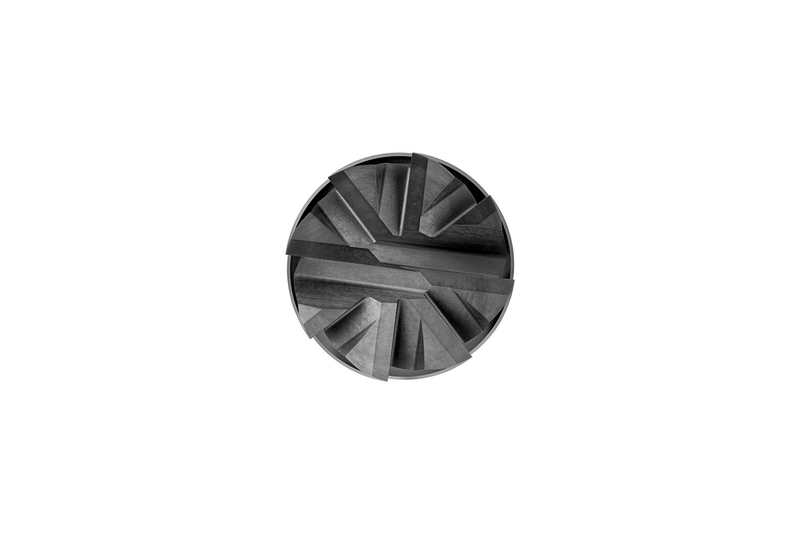

Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706788
EAN7320760683378
File Type Download
S22618.0 — Line Drawing PDF Download
