UGC DOR6706790
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.13 CAD - $104.13 CAD
$104.13 CAD
$104.13 CAD - $104.13 CAD
$104.13 CAD

Vendu en lots de : 1

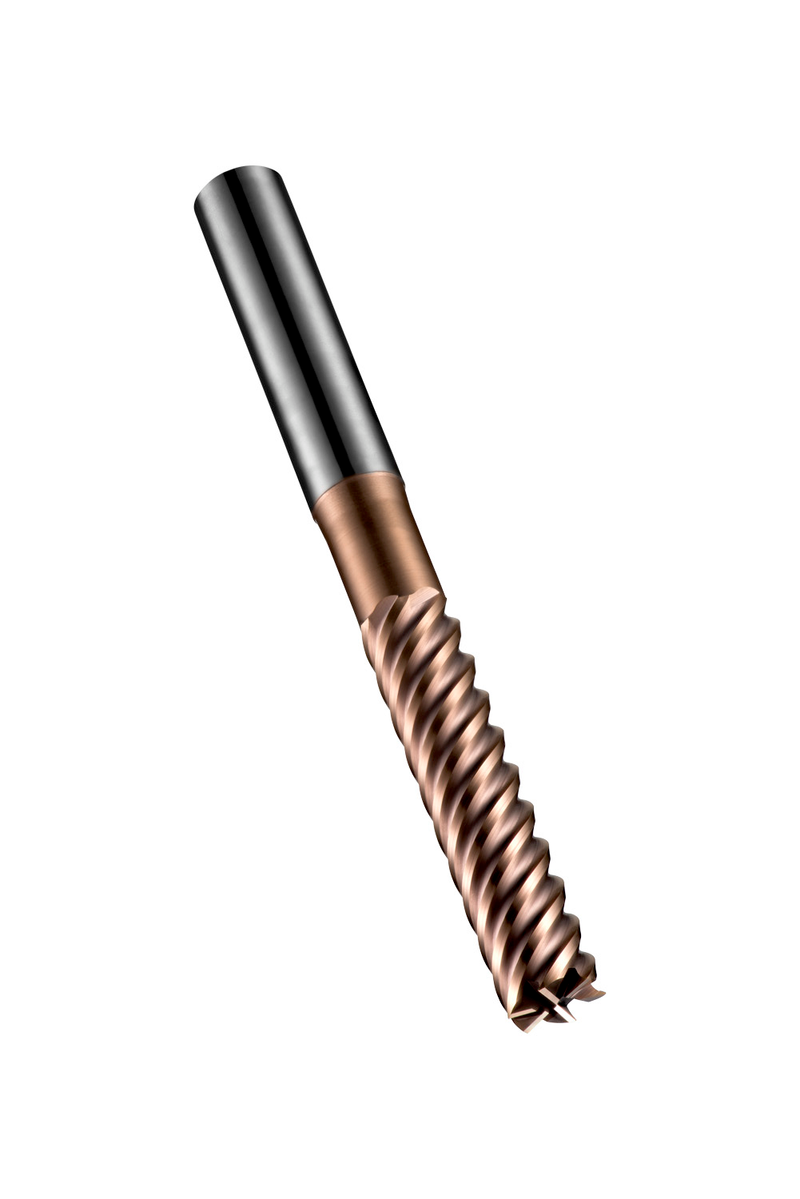

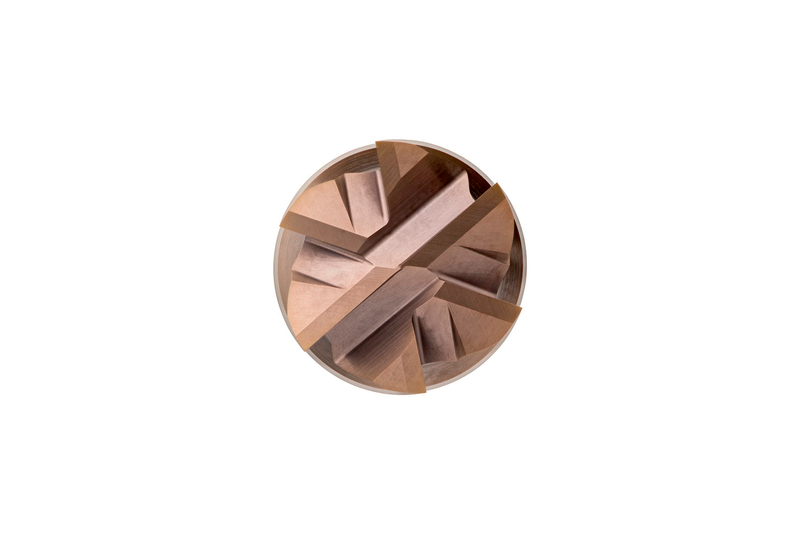

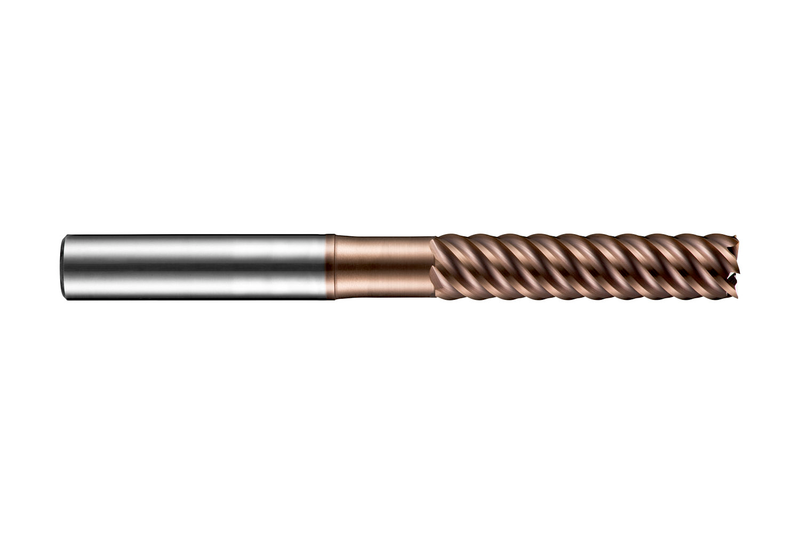

Fraise 6 dents série longue pour finition, diamètre 4 mm avec une longueur de coupe de 19 mm, longueur totale de 75 mm et portée de 32 mm avec dégagement de col, conforme à la norme DORMER avec une queue cylindrique de 6 mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5264.0
GradeTiSiN
Product Number6706790
Product FamilyS526
Insert Geometry
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

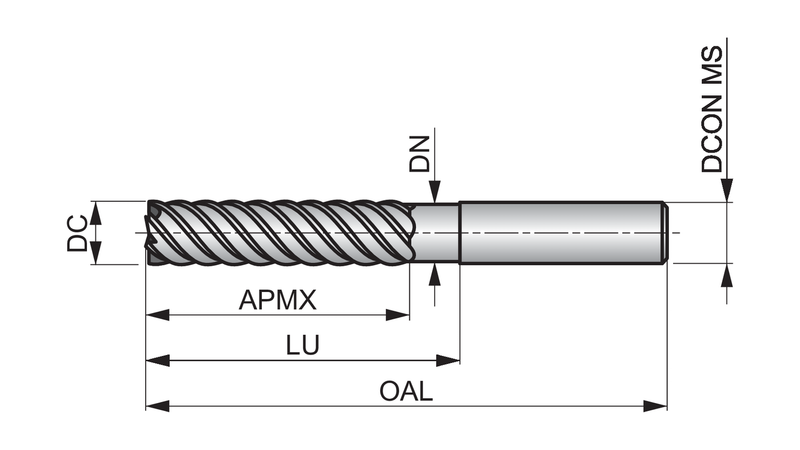

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706790
EAN7320760683392
File Type Download
S5264.0 — Line Drawing PDF Download
