S5268.0
S5268.0
S5268.0
S5268.0

S5268.0

UGC DOR6706792
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$149.06 CAD - $149.06 CAD
$149.06 CAD
$149.06 CAD - $149.06 CAD
$149.06 CAD

Vendu en lots de : 1

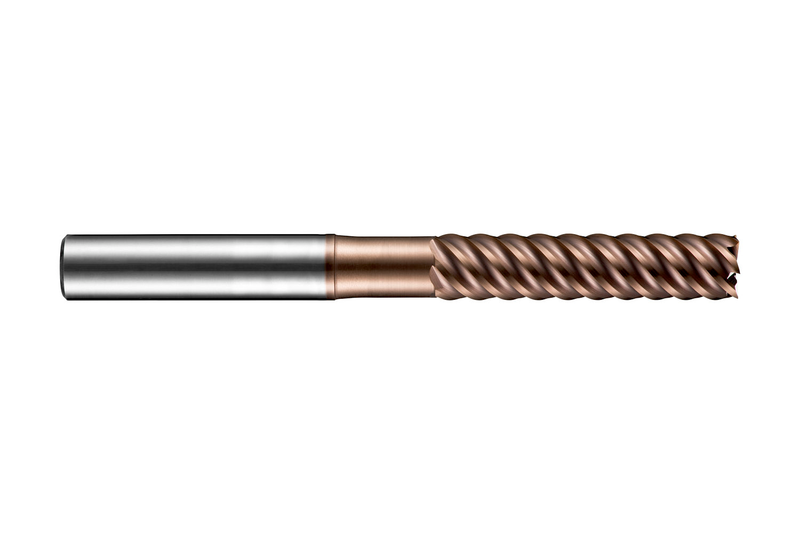

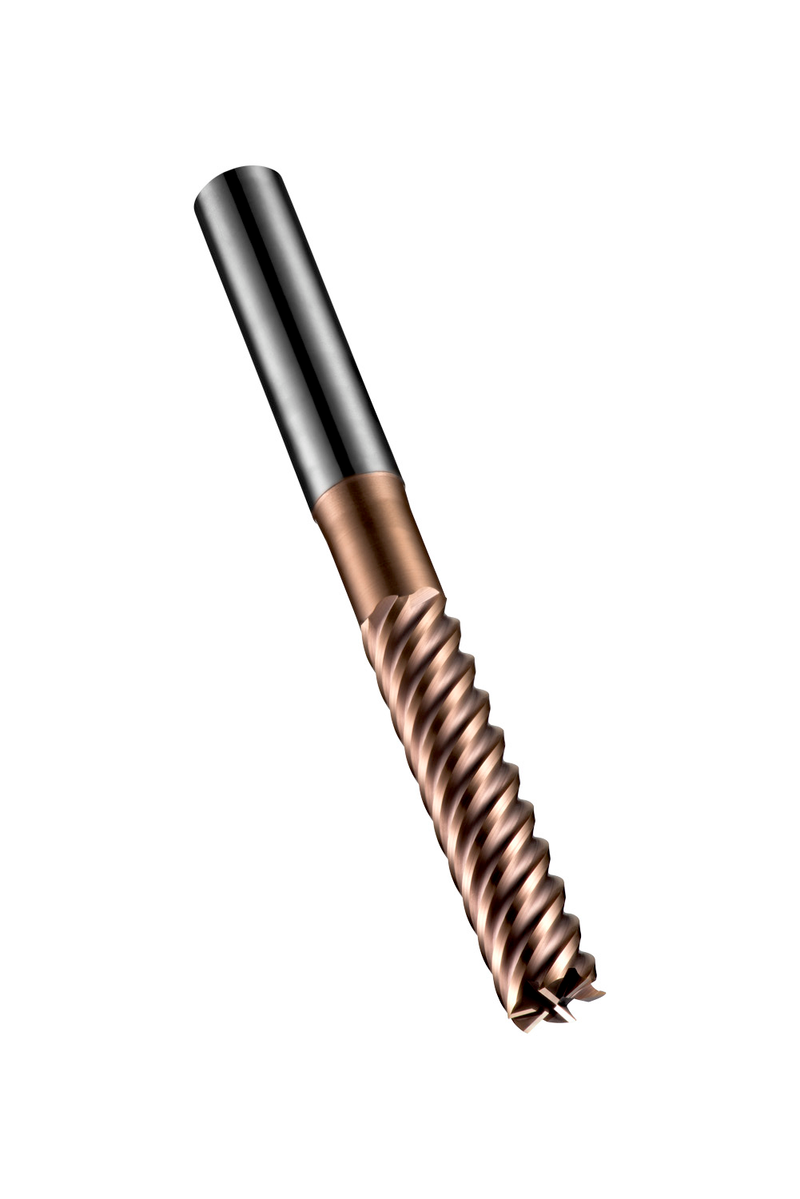

Fraise 6 dents de la série longue pour la finition, diamètre 8 mm avec une longueur de coupe de 31 mm, longueur totale de 75 mm et portée de 40 mm avec dégagement du collet, selon la norme DORMER avec une queue cylindrique de 8 mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5268.0
GradeTiSiN
Product Number6706792
Product FamilyS526
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm

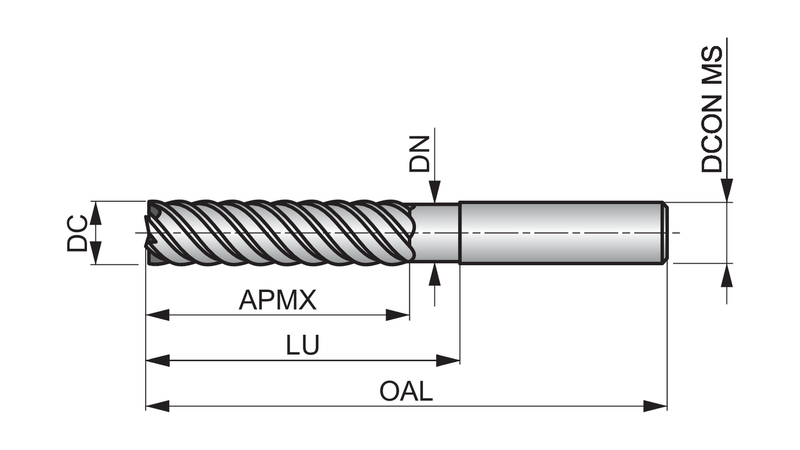

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm

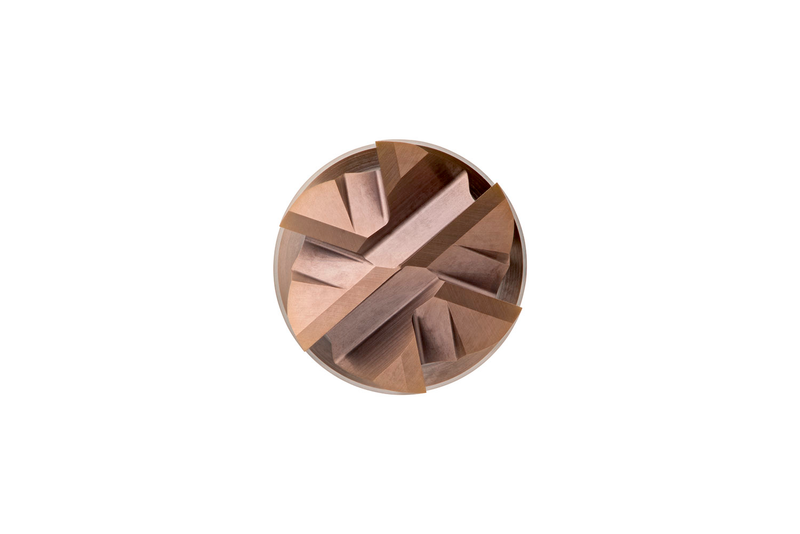

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706792
EAN7320760683415
File Type Download
S5268.0 — Line Drawing PDF Download
