S52616.0
S52616.0
S52616.0
S52616.0

S52616.0

UGC DOR6706796
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$446.64 CAD - $446.64 CAD
$446.64 CAD
$446.64 CAD - $446.64 CAD
$446.64 CAD

Vendu en lots de : 1

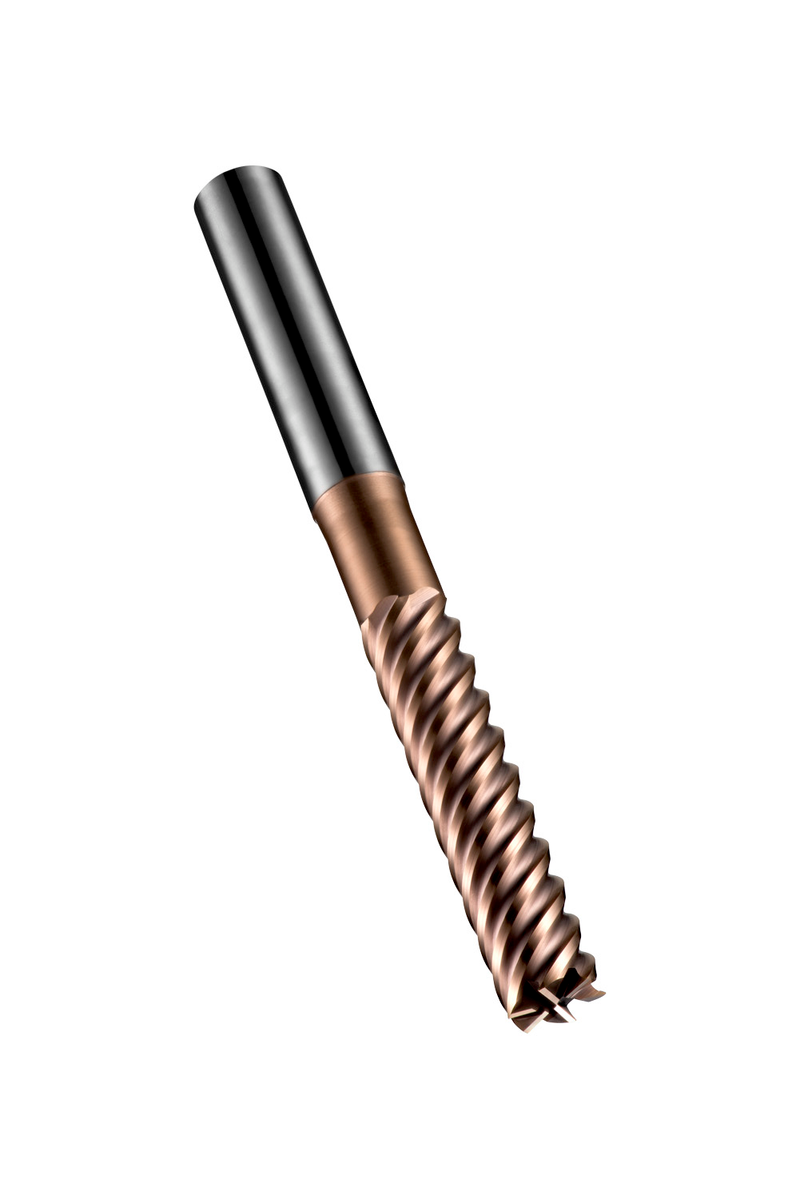

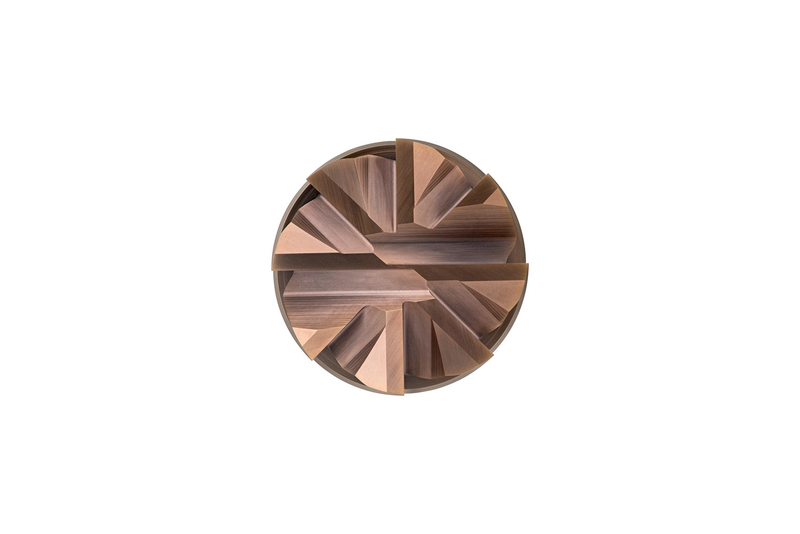

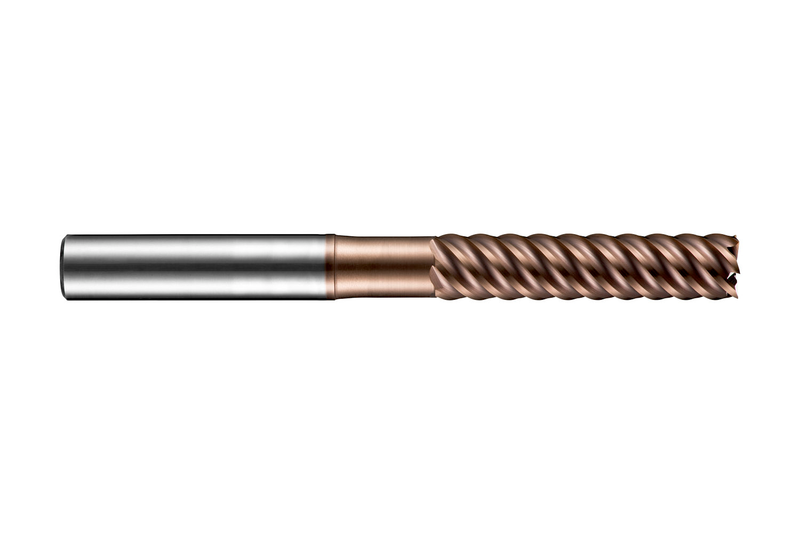

Fraise de finition longue série à 8 arêtes, diamètre 16 mm avec une longueur de coupe de 57 mm, une longueur totale de 125 mm et une portée de 85 mm avec dégagement de collet, selon la norme DORMER avec une queue cylindrique de 16 mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52616.0
GradeTiSiN
Product Number6706796
Product FamilyS526

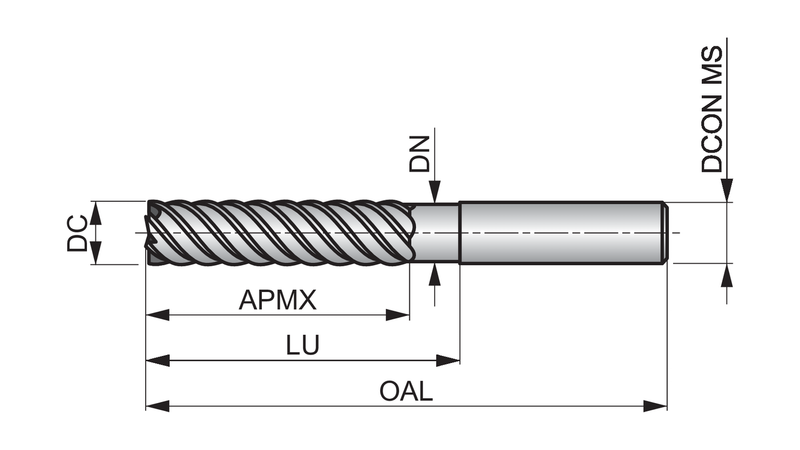

Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706796
EAN7320760683453
File Type Download
S52616.0 — Line Drawing PDF Download
