UGC DOR6706799
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.19 CAD - $68.19 CAD
$68.19 CAD
$68.19 CAD - $68.19 CAD
$68.19 CAD

Vendu en lots de : 1

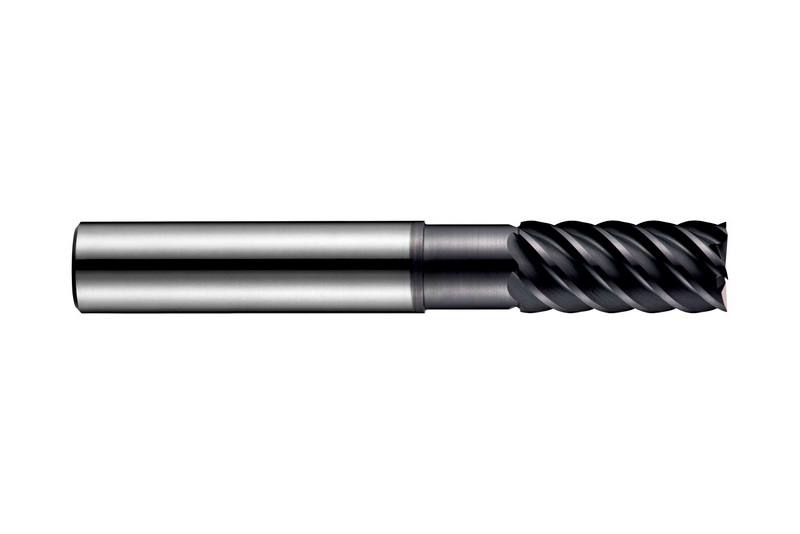

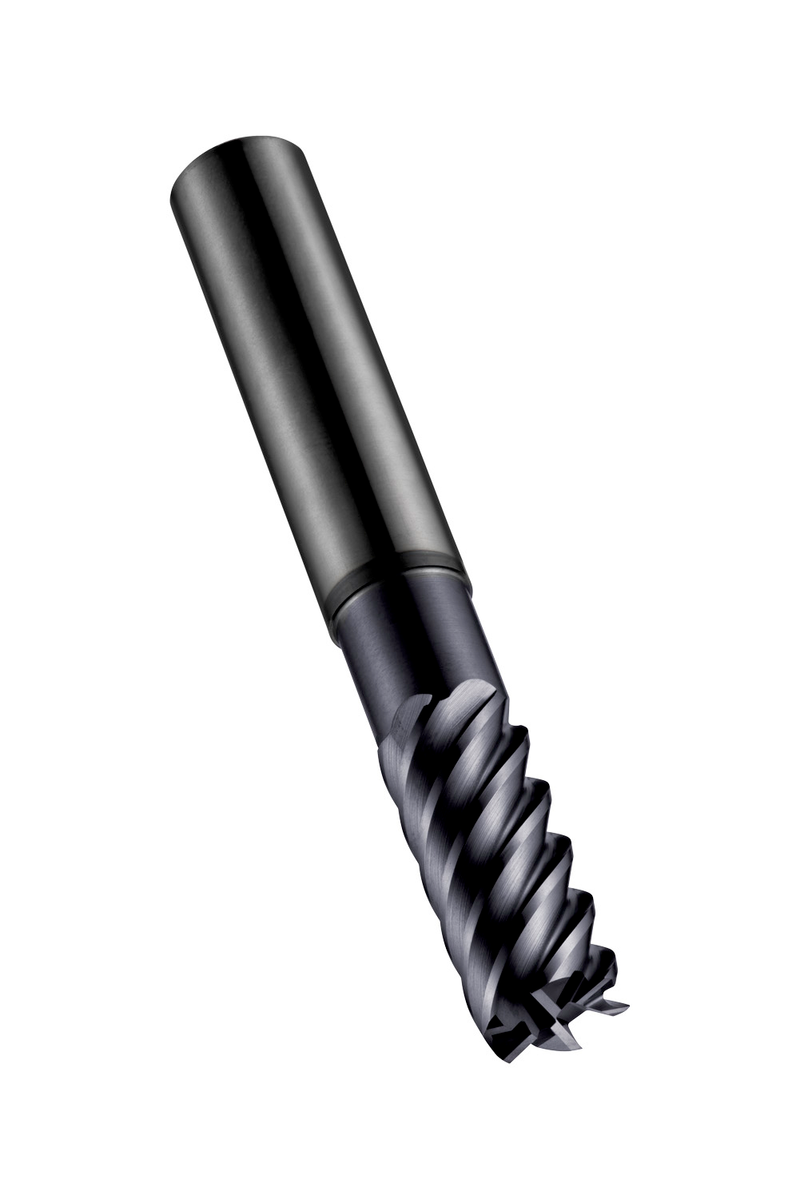

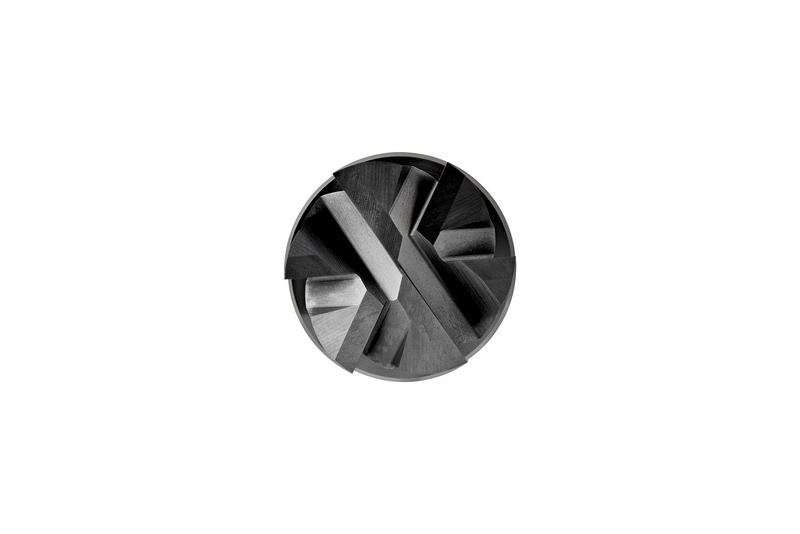

Fraise de finition de petites séries 6 dents, diamètre 3mm avec longueur de coupe 8mm, longueur totale 50mm et dégagement 20mm, selon standard DORMER avec queue cylindrique 6mm, carbure monobloc avec revêtement AlTiN, hélice 50° et angle de dépouille 3° pour surfaçage-dressage dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2253.0
GradeAlTiN
Product Number6706799
Product FamilyS225
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

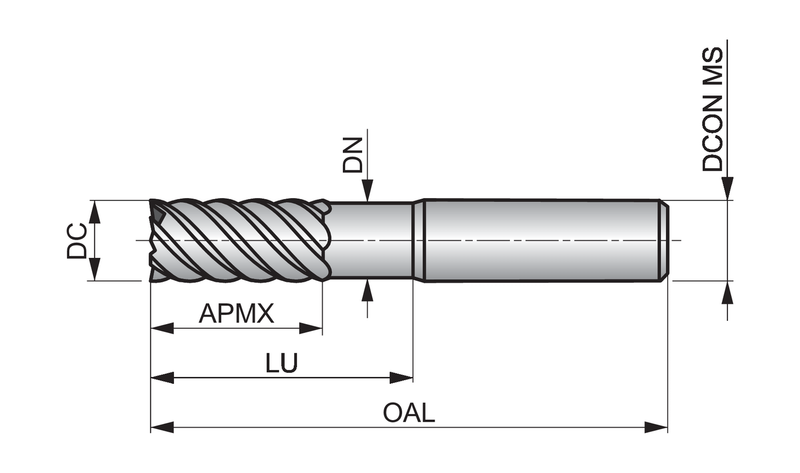

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706799
EAN7320760683484
File Type Download
S2253.0 — Line Drawing PDF Download
