UGC DOR6706801
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Vendu en lots de : 1

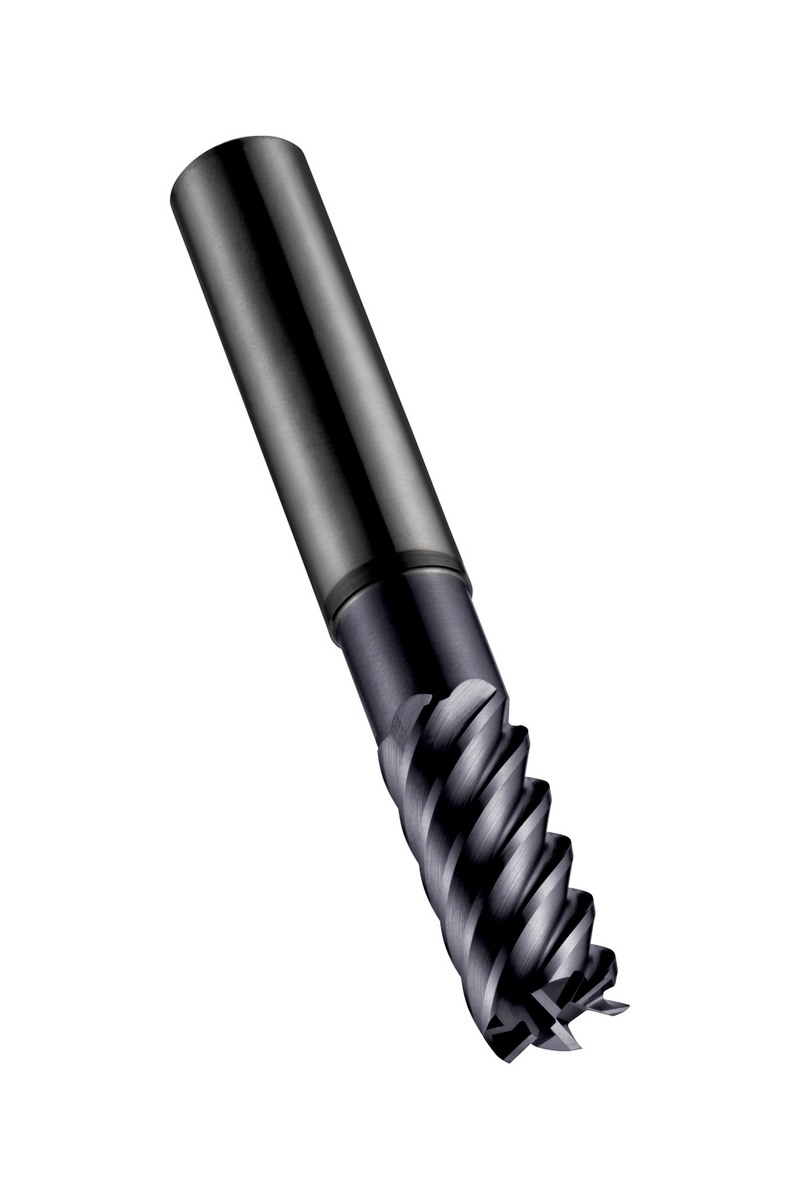

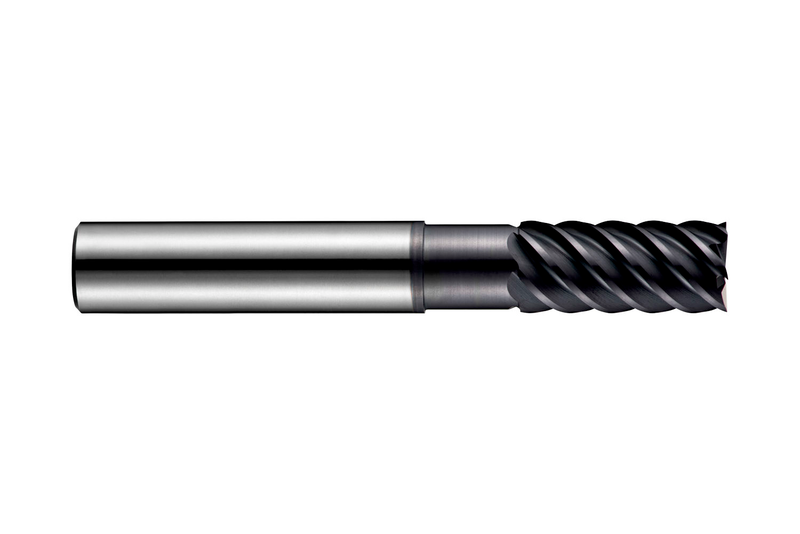

Fraise en bout de finition série courte à 6 dents, diamètre 6mm, longueur de coupe 15mm, longueur totale 50mm et portée 20mm avec dégagement, selon la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement AlTiN, hélice de 50° et angle de dépouille de 3° pour le fraisage d'épaulements dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2256.0
GradeAlTiN
Product Number6706801
Product FamilyS225

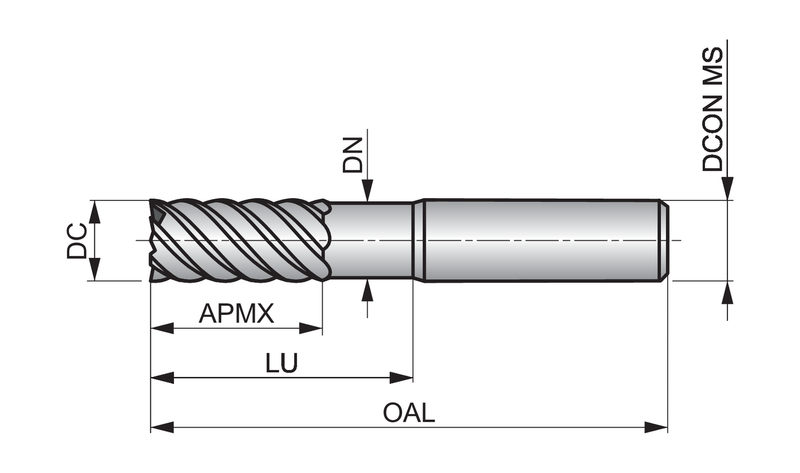

Insert Geometry
Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm

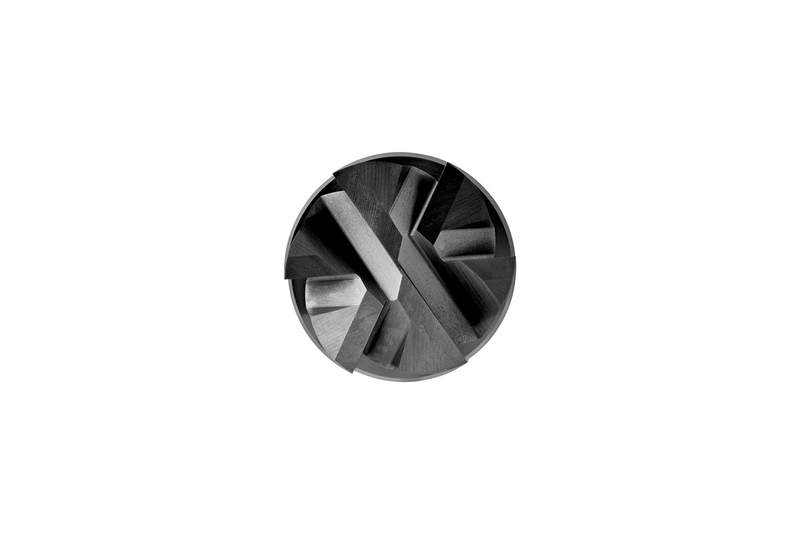

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706801
EAN7320760683507
File Type Download
S2256.0 — Line Drawing PDF Download
