S5253.0
S5253.0
S5253.0
S5253.0

S5253.0

UGC DOR6706809
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$86.16 CAD - $86.16 CAD
$86.16 CAD
$86.16 CAD - $86.16 CAD
$86.16 CAD

Vendu en lots de : 1

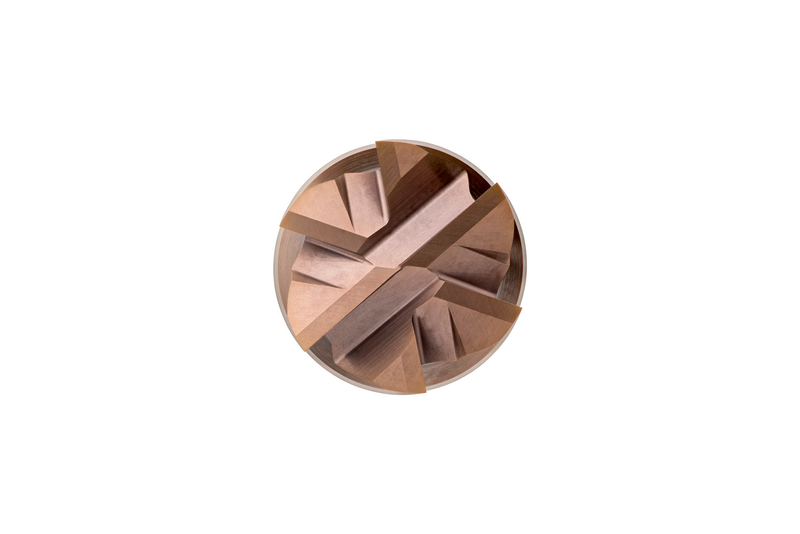

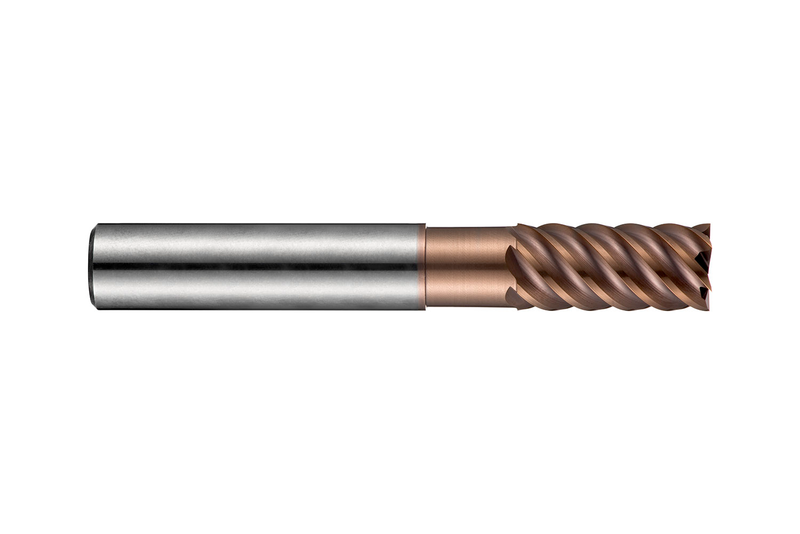

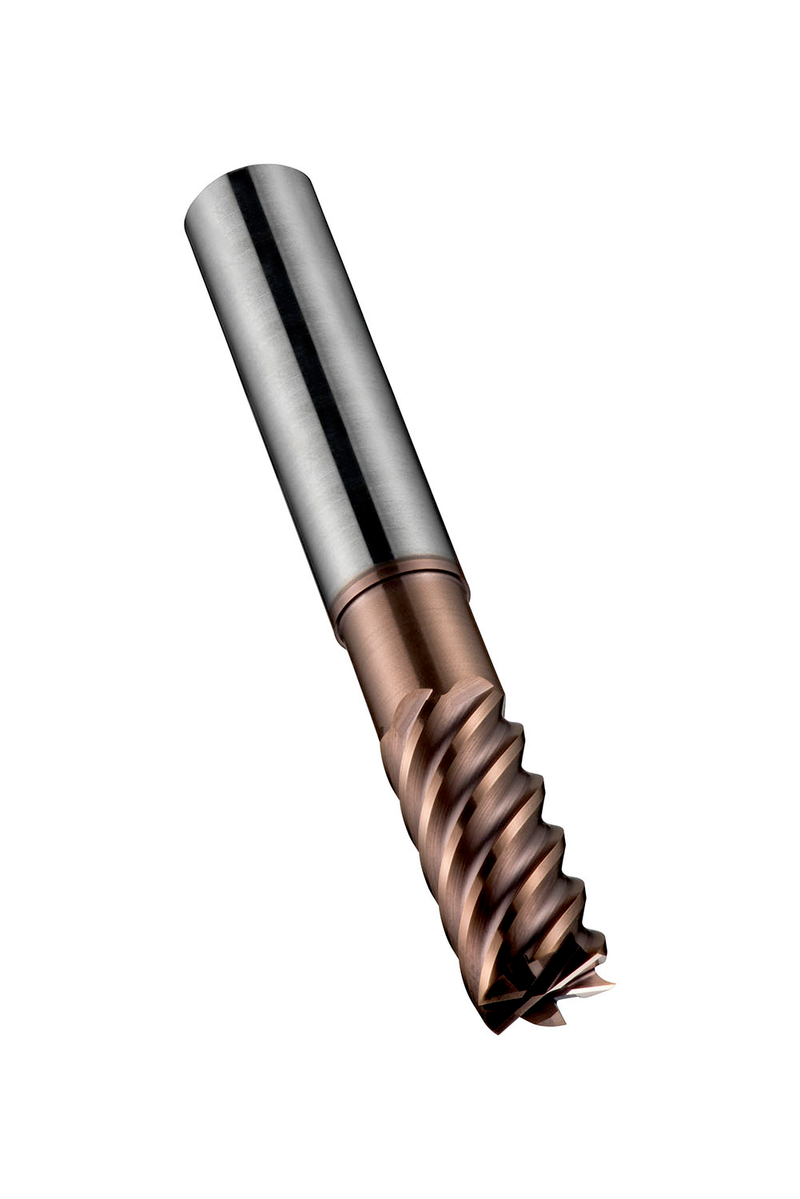

Fraise 6 dents série courte à surfacer-dresser, diamètre 3 mm, longueur de coupe 8 mm, longueur totale 50 mm et portée 20 mm avec dégagement de collet, selon la norme DORMER avec une queue cylindrique de 6 mm, carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille de -26° pour le fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5253.0
GradeTiSiN
Product Number6706809
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

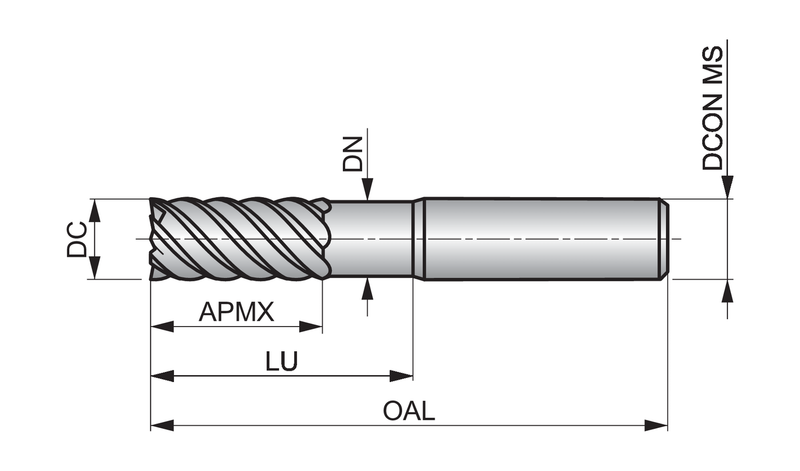

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706809
EAN7320760683583
File Type Download
S5253.0 — Line Drawing PDF Download
