UGC DOR6706811
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$94.61 CAD - $94.61 CAD
$94.61 CAD
$94.61 CAD - $94.61 CAD
$94.61 CAD

Vendu en lots de : 1

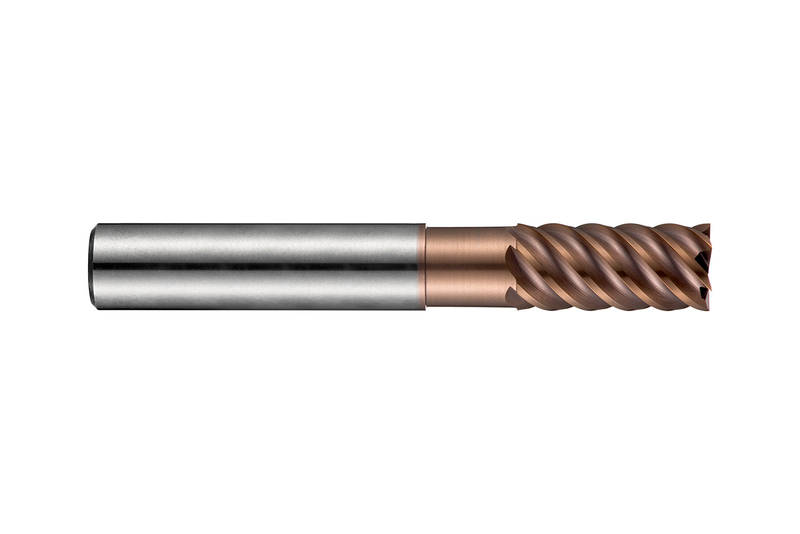

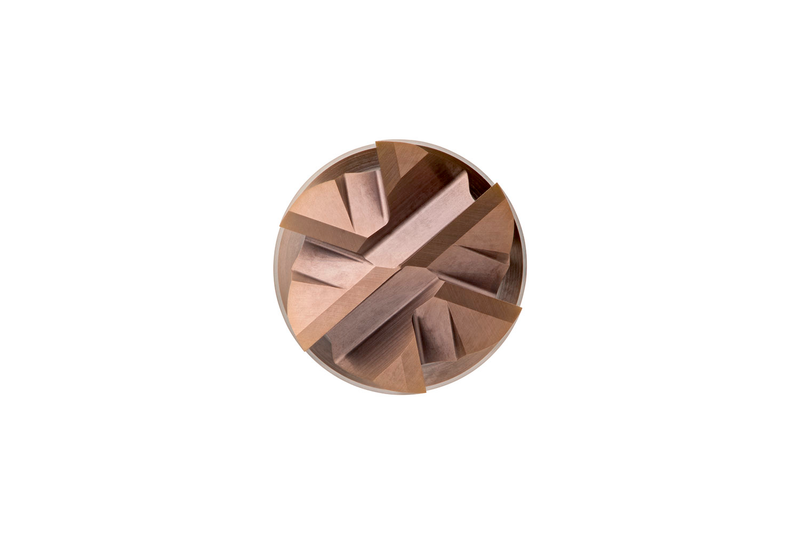

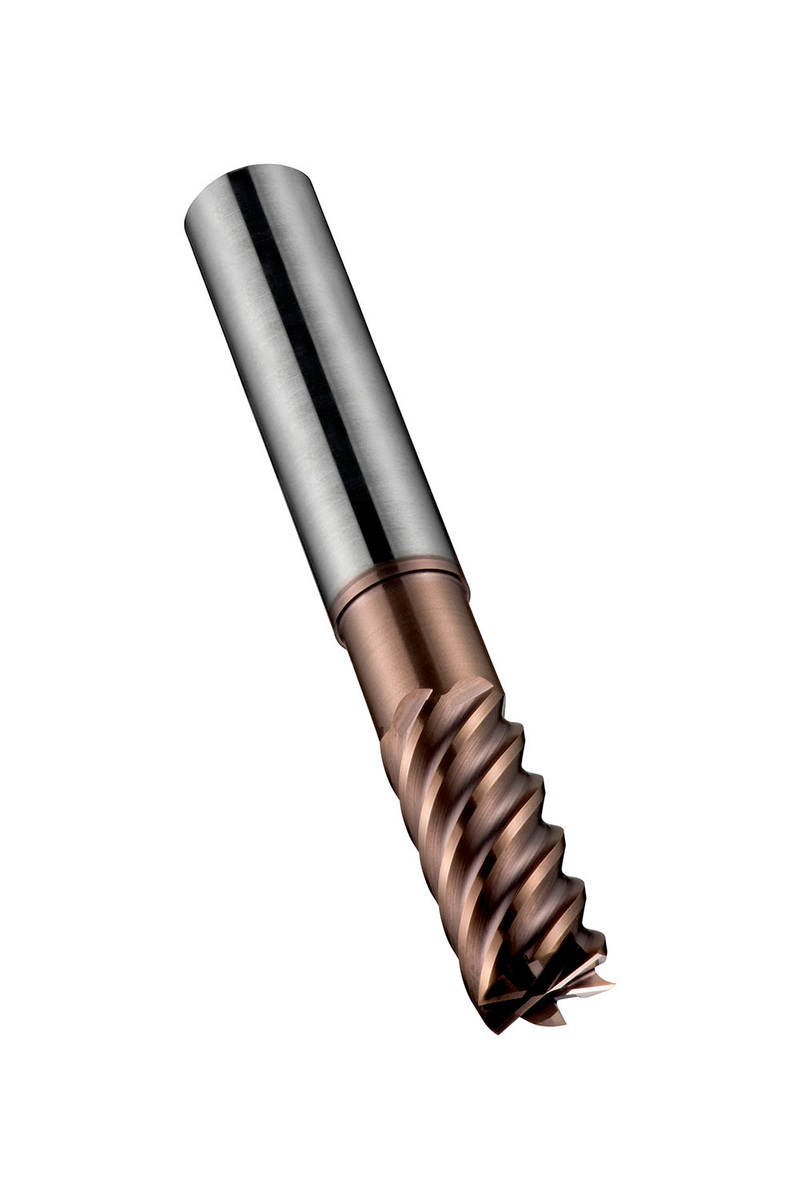

Fraise de finition courte série 6 dents, diamètre 4mm avec longueur de coupe 11mm, longueur totale 50mm et dégagement de 20mm avec réduction du diamètre, selon la norme DORMER avec un queue cylindrique 6mm, carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5254.0
GradeTiSiN
Product Number6706811
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

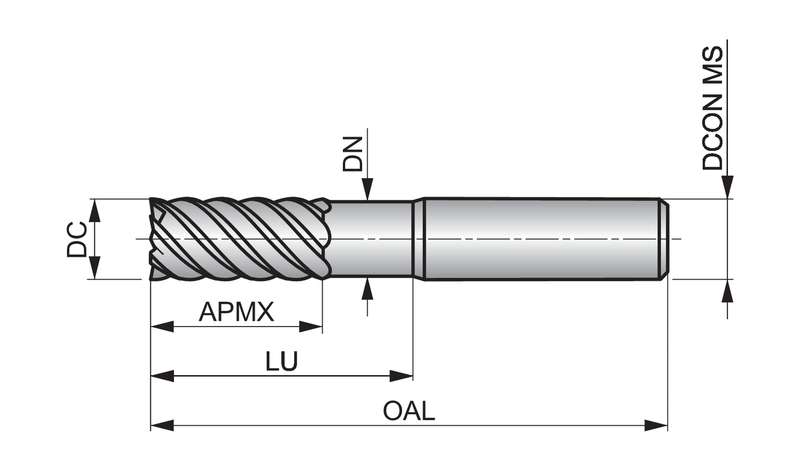

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706811
EAN7320760683606
File Type Download
S5254.0 — Line Drawing PDF Download
