UGC DOR6706812
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$97.26 CAD - $97.26 CAD
$97.26 CAD
$97.26 CAD - $97.26 CAD
$97.26 CAD

Vendu en lots de : 1

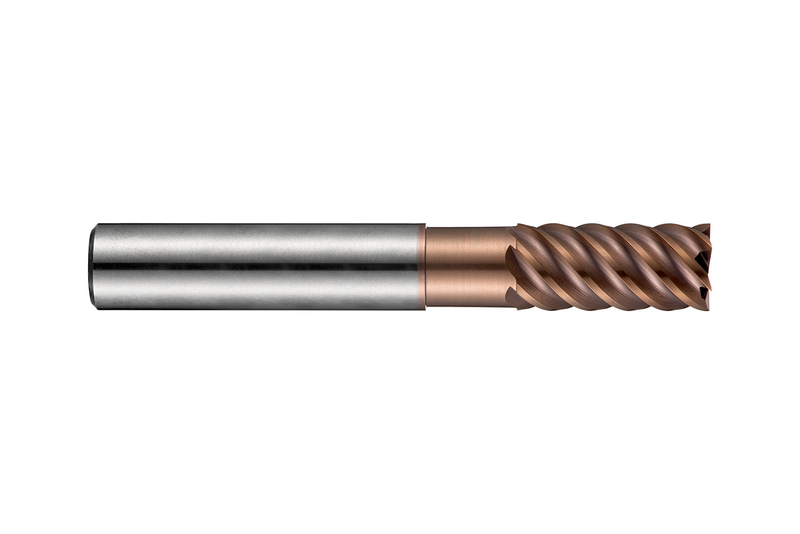

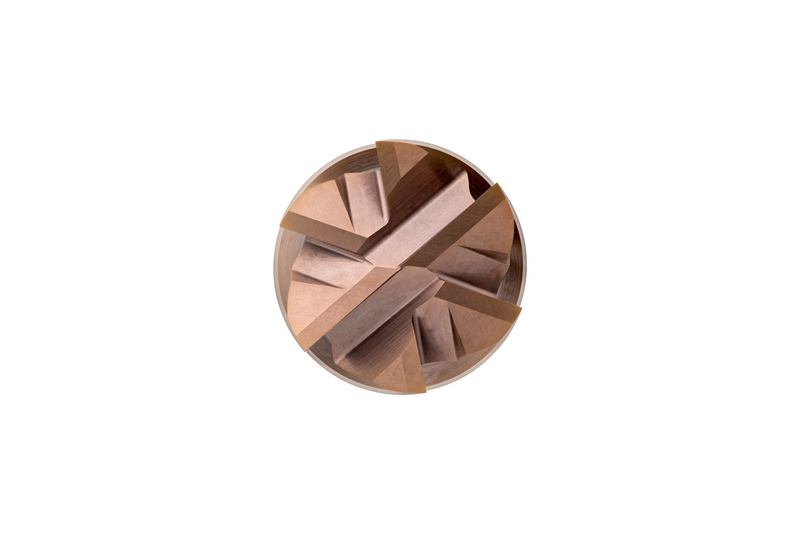

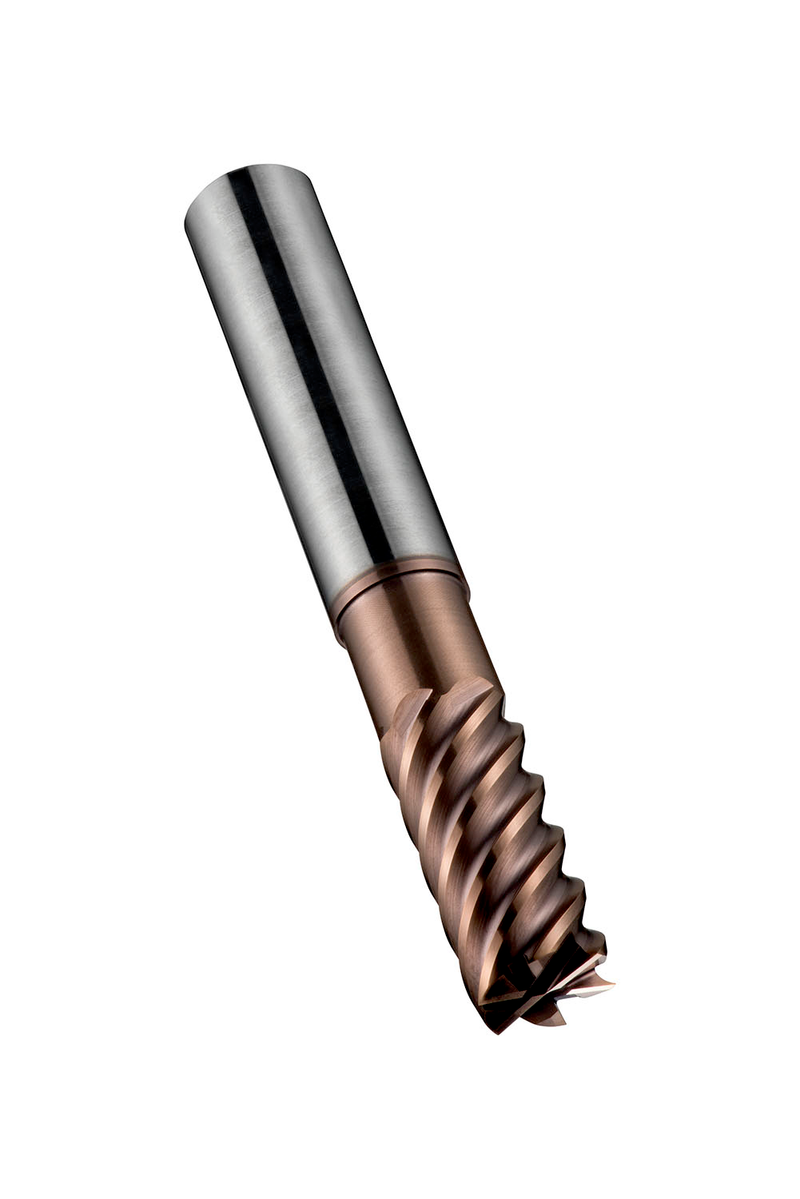

Fraise de finition courte série 6 dents, diamètre 6mm avec une longueur de coupe de 15mm, une longueur totale de 50mm et un dégagement de 20mm avec dépouille du collet, selon la norme DORMER avec un queue cylindrique de 6mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5256.0
GradeTiSiN
Product Number6706812
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.5906"
Depth of Cut Max — mm (APMX)15.0 mm

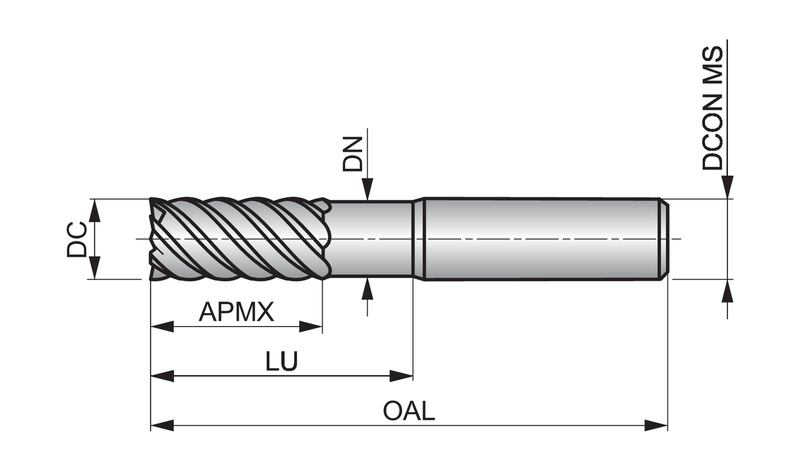

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706812
EAN7320760683613
File Type Download
S5256.0 — Line Drawing PDF Download
