UGC DOR6706813
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$135.31 CAD - $135.31 CAD
$135.31 CAD
$135.31 CAD - $135.31 CAD
$135.31 CAD

Vendu en lots de : 1

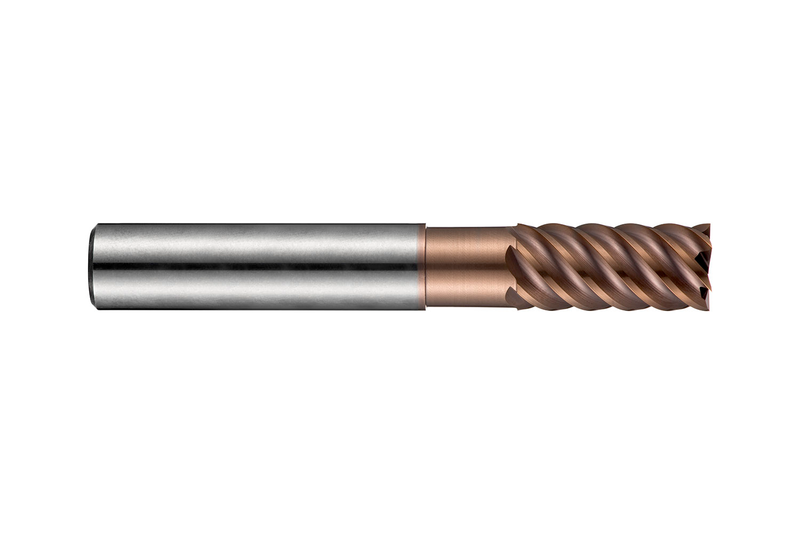

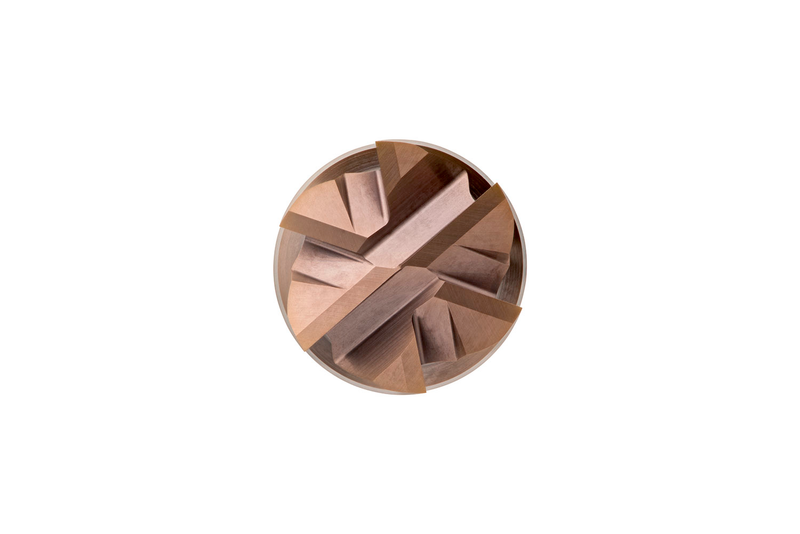

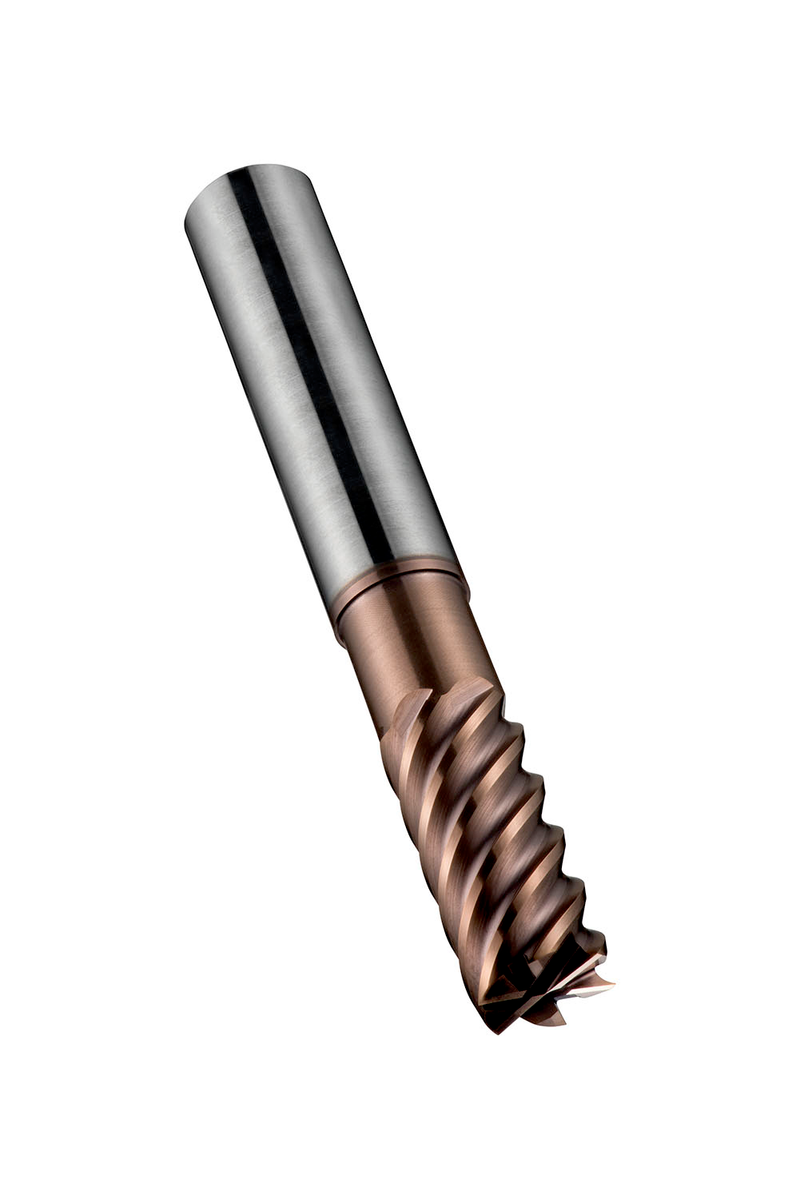

Fraise en bout de finition série courte 6 dents, diamètre 8 mm avec longueur de coupe 20 mm, longueur totale 64 mm et portée 30 mm avec dégagement de col, conforme à la norme DORMER avec une queue cylindrique de 8 mm, carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour le fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5258.0
GradeTiSiN
Product Number6706813
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.7874"
Depth of Cut Max — mm (APMX)20.0 mm

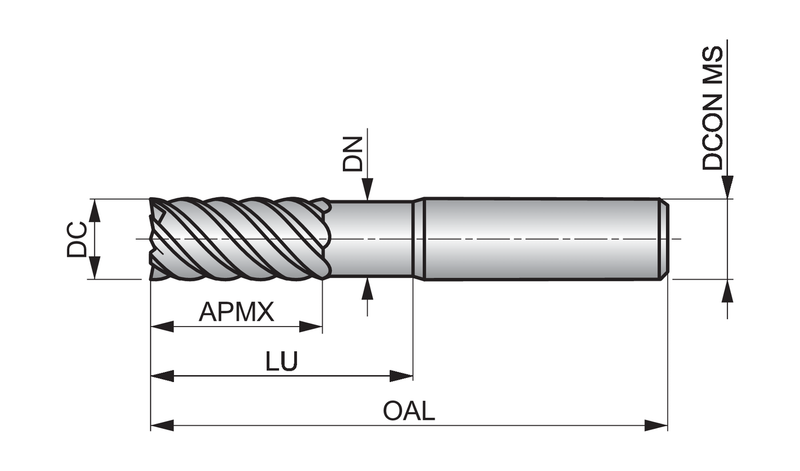

Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706813
EAN7320760683620
File Type Download
S5258.0 — Line Drawing PDF Download
