UGC DOR6706814
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$178.66 CAD - $178.66 CAD
$178.66 CAD
$178.66 CAD - $178.66 CAD
$178.66 CAD

Vendu en lots de : 1

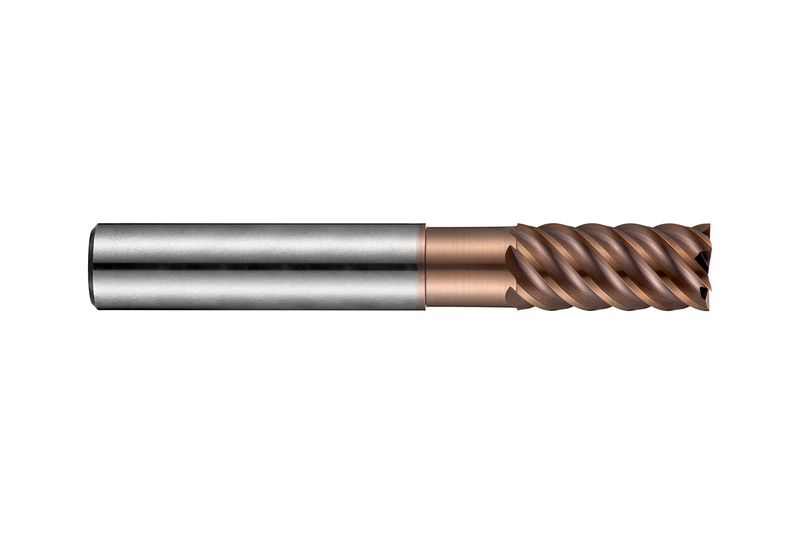

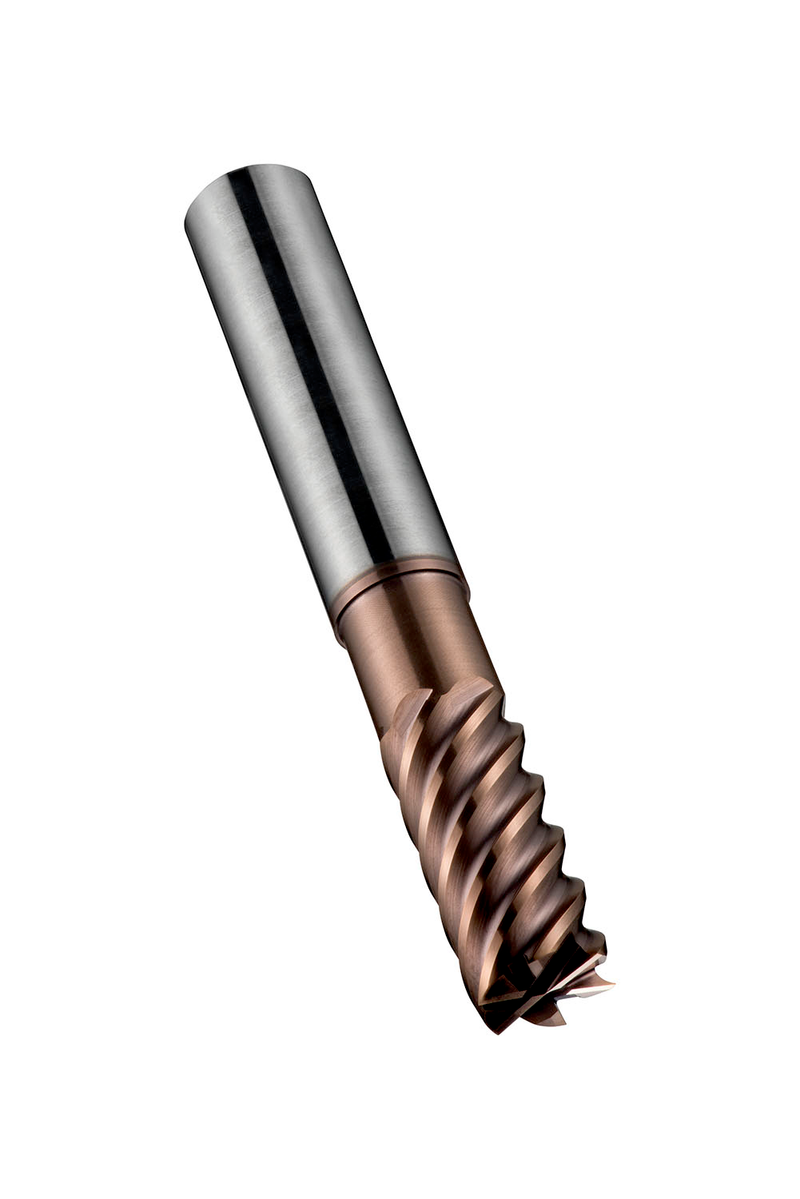

Fraise en bout de finition série courte à 6 dents, diamètre 10 mm avec longueur de coupe de 22 mm, longueur totale de 70 mm et portée de 32 mm avec dégagement, selon la norme DORMER avec un corps cylindrique de 10 mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52510.0
GradeTiSiN
Product Number6706814
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm

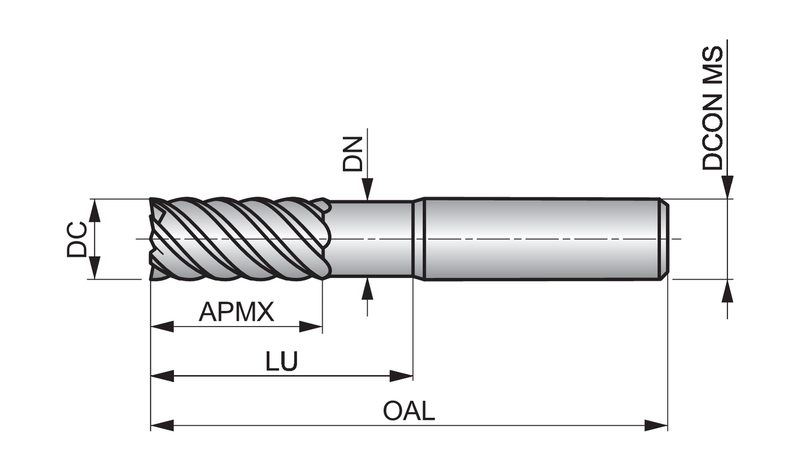

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

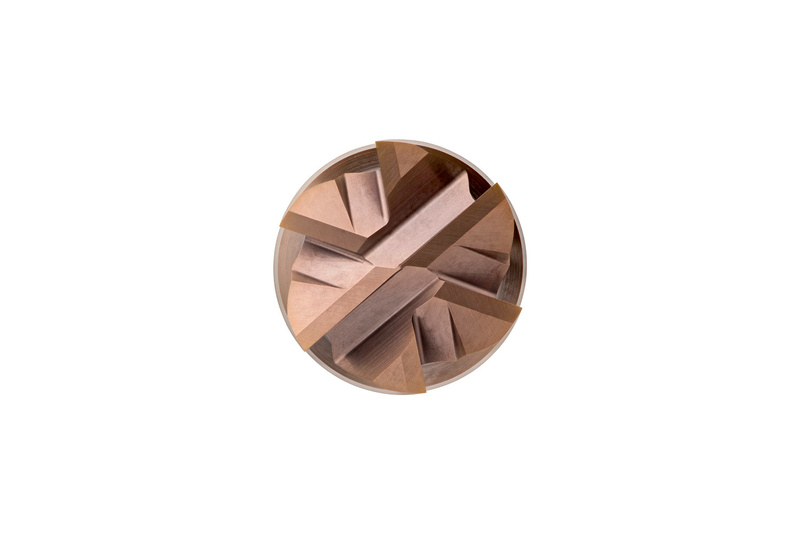

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706814
EAN7320760683637
File Type Download
S52510.0 — Line Drawing PDF Download
