UGC DOR6706815
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$245.79 CAD - $245.79 CAD
$245.79 CAD
$245.79 CAD - $245.79 CAD
$245.79 CAD

Vendu en lots de : 1

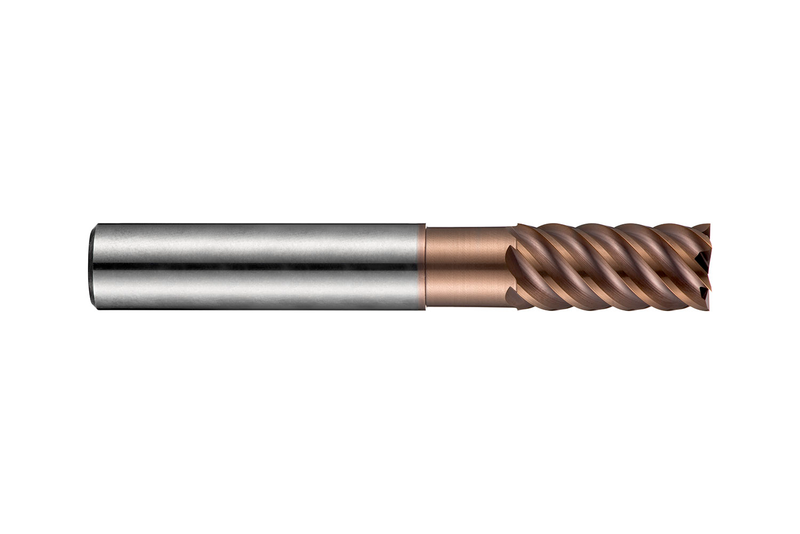

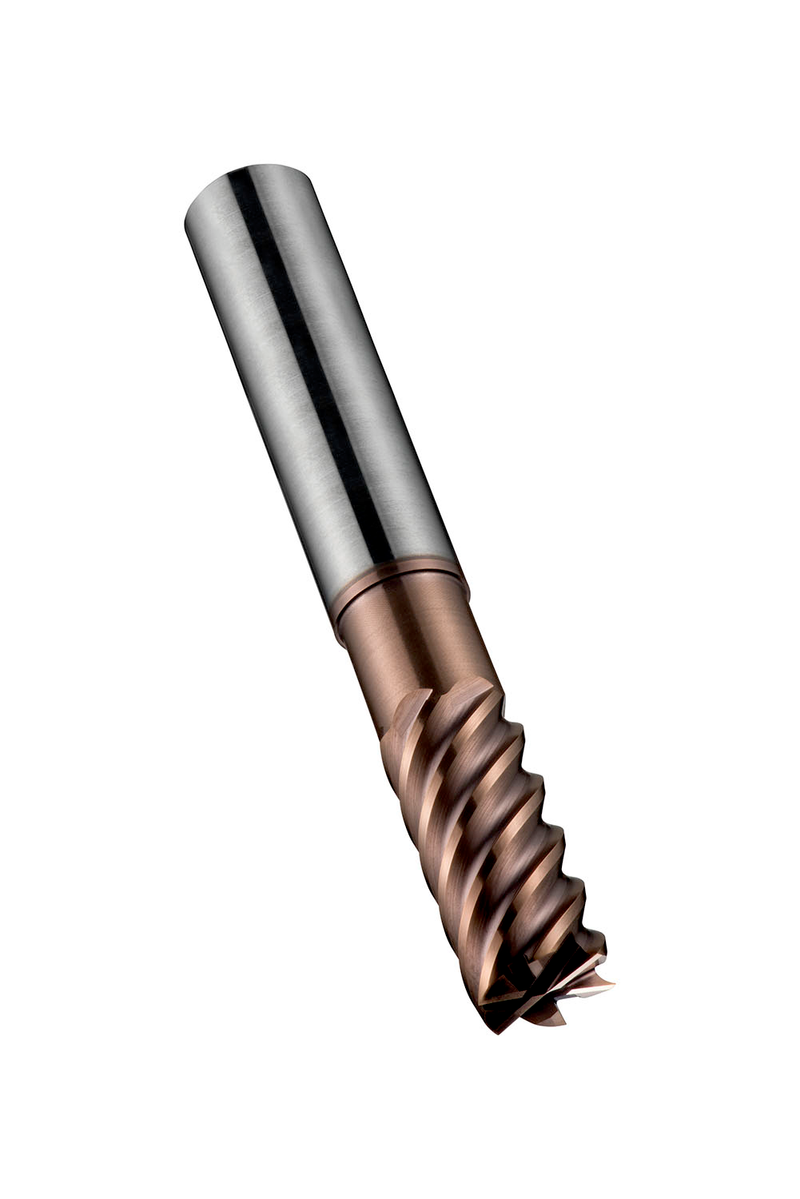

Fraise 6 dents série courte finition, diamètre 12mm avec longueur de coupe 25mm, longueur totale 75mm et dégagement de 37mm avec col dégagé, selon la norme DORMER avec une queue cylindrique 12mm, en carbure monobloc avec revêtement TiSiN, hélice à 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52512.0
GradeTiSiN
Product Number6706815
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)0.9843"
Depth of Cut Max — mm (APMX)25.0 mm

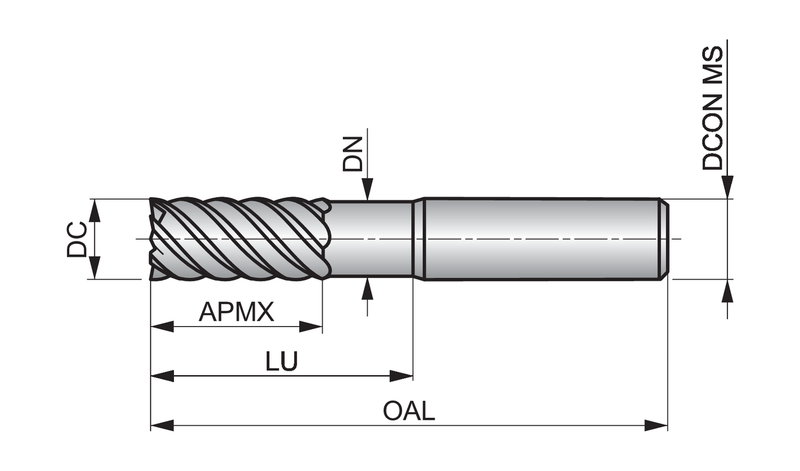

Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Usable Length — mm (LU)37.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm

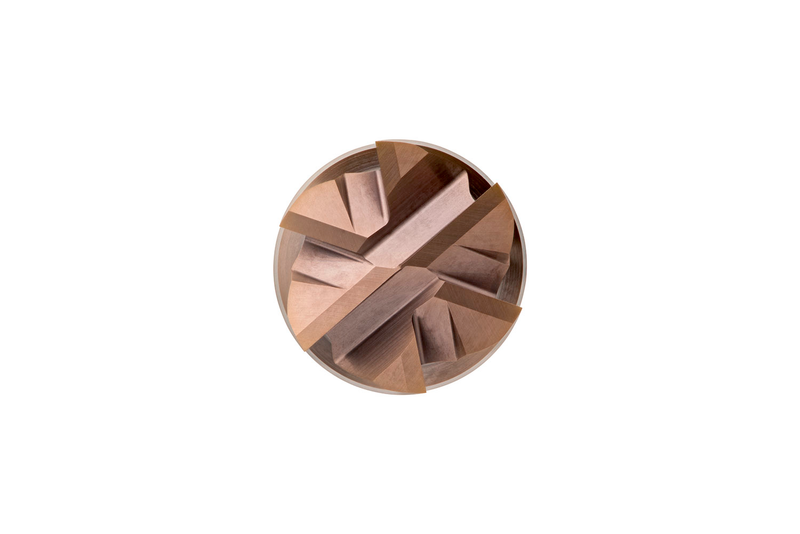

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de Travail
Reference Numbers
EDP Number46706815
EAN7320760683644
File Type Download
S52512.0 — Line Drawing PDF Download
