UGC DOR6706816
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.21 CAD - $309.21 CAD
$309.21 CAD
$309.21 CAD - $309.21 CAD
$309.21 CAD

Vendu en lots de : 1

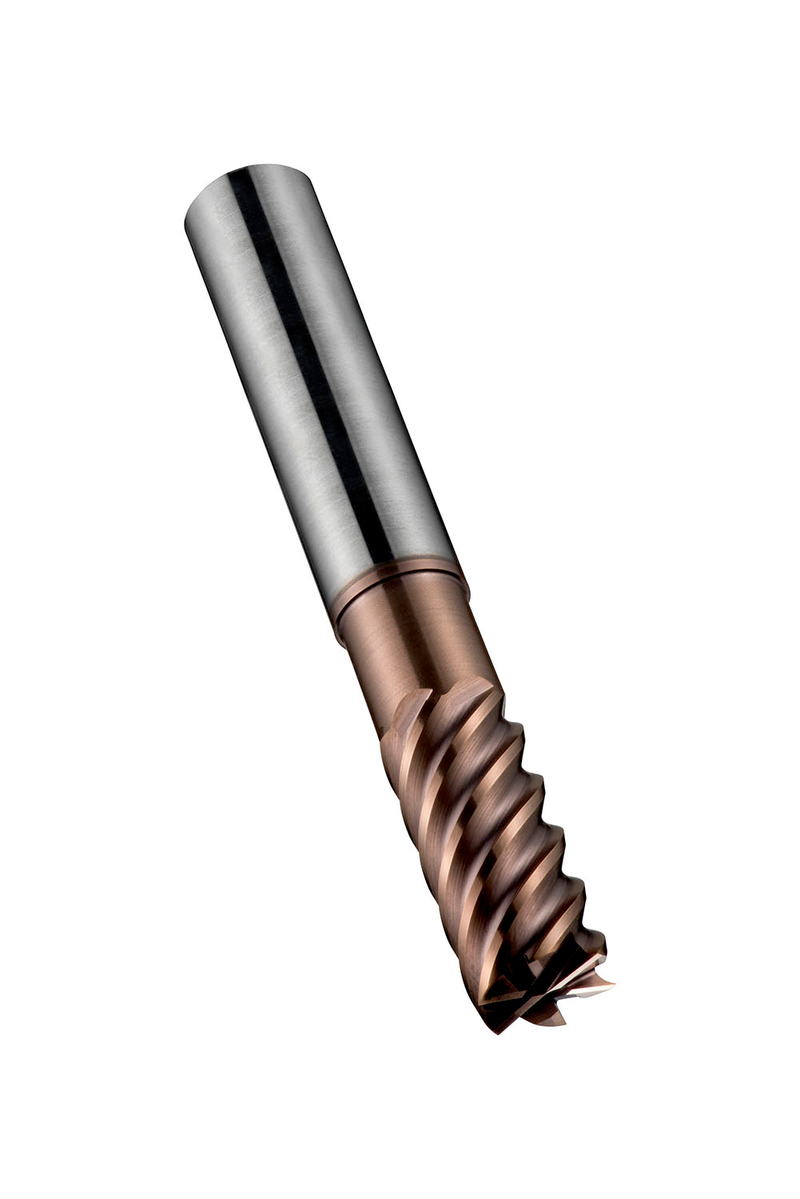

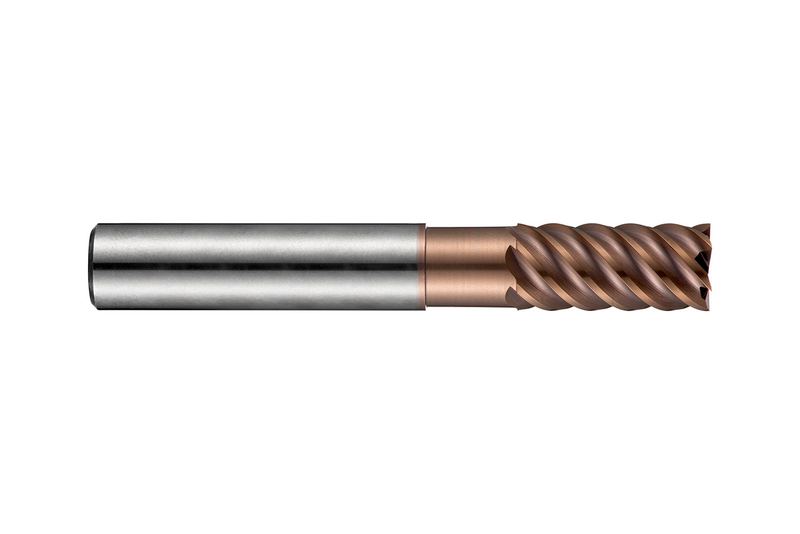

Fraise 6 dents courte à surfacer-dresser diamètre 14 mm, longueur de coupe 30 mm, longueur totale 90 mm, longueur utile 44 mm avec dégagement, selon la norme DORMER, queue cylindrique 14 mm, en carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour l’usinage d’épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52514.0
GradeTiSiN
Product Number6706816
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm

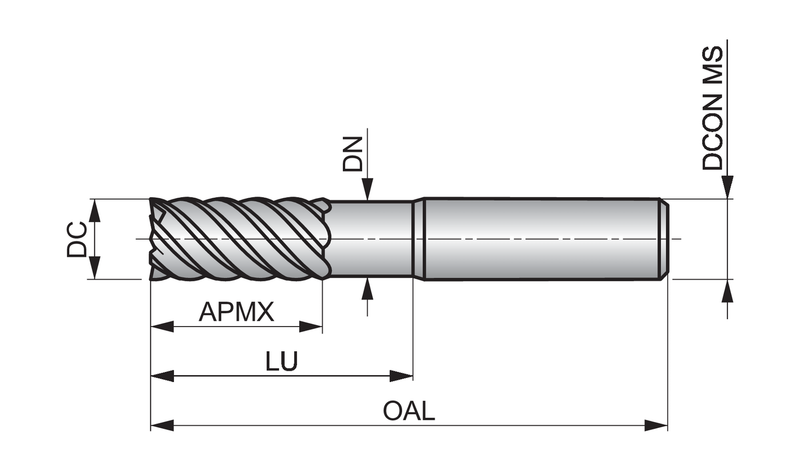

Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)44.0 mm
Connection Dia. — in (DCON)0.5512"
Connection Dia. — mm (DCON)14.0 mm

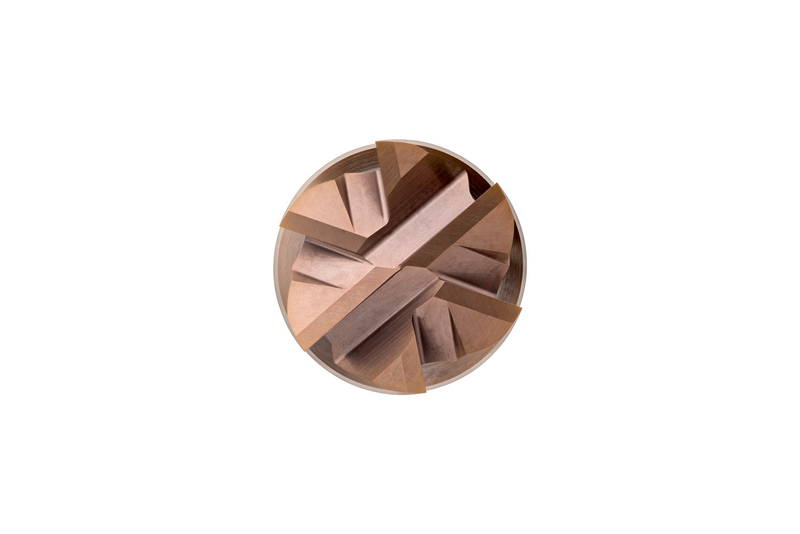

Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706816
EAN7320760683651
File Type Download
S52514.0 — 3D Model STP Download
S52514.0 — 2D Model DXF Download
S52514.0 — Line Drawing PDF Download
