UGC DOR6706817
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$404.36 CAD - $404.36 CAD
$404.36 CAD
$404.36 CAD - $404.36 CAD
$404.36 CAD

Vendu en lots de : 1

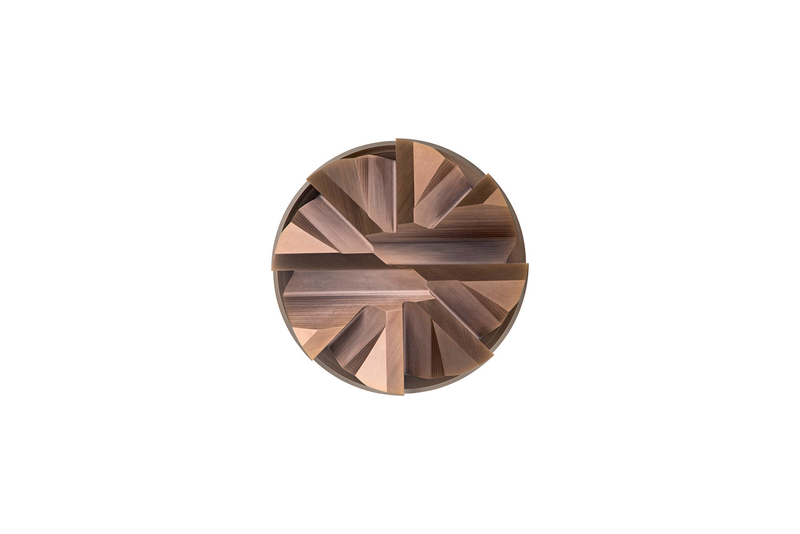

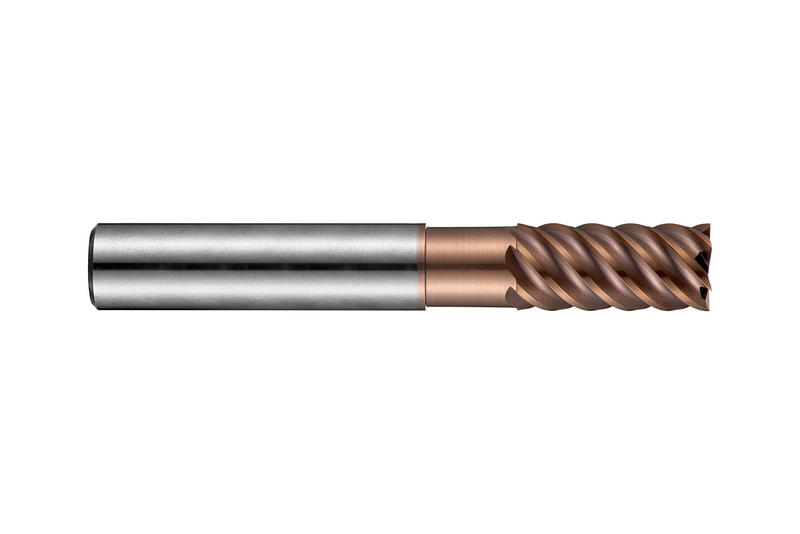

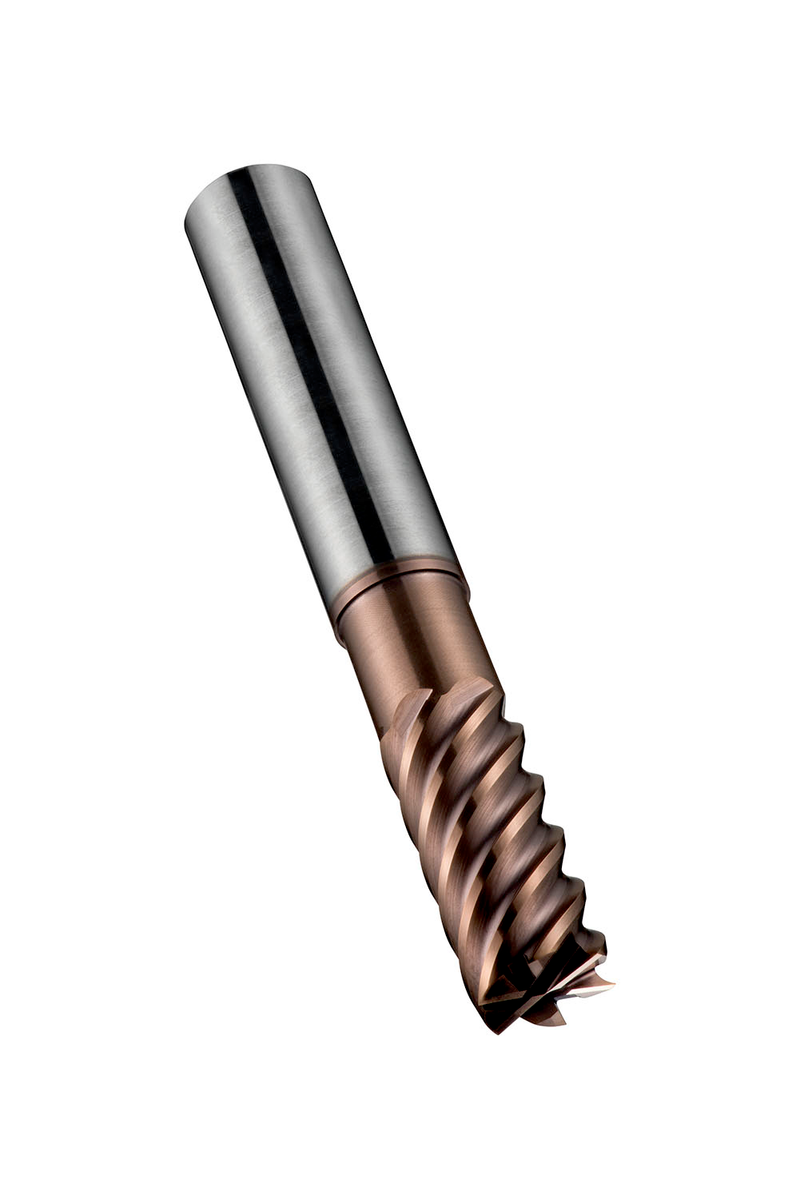

Fraise de finition série courte 8 dents, diamètre 16mm, longueur de coupe 30mm, longueur totale 90mm et portée 46mm avec dégagement de collet, selon la norme DORMER avec une queue cylindrique de 16mm, carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52516.0
GradeTiSiN
Product Number6706817
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)1.1811"
Depth of Cut Max — mm (APMX)30.0 mm

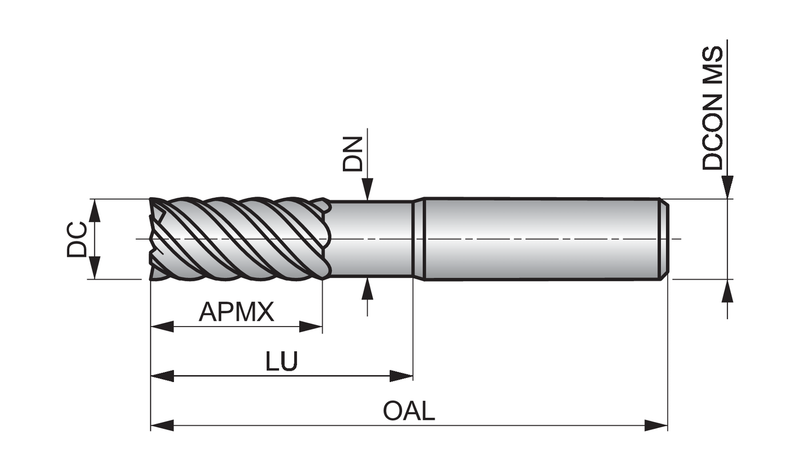

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)46.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706817
EAN7320760683668
File Type Download
S52516.0 — Line Drawing PDF Download
