UGC DOR6706818
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$521.70 CAD - $521.70 CAD
$521.70 CAD
$521.70 CAD - $521.70 CAD
$521.70 CAD

Vendu en lots de : 1

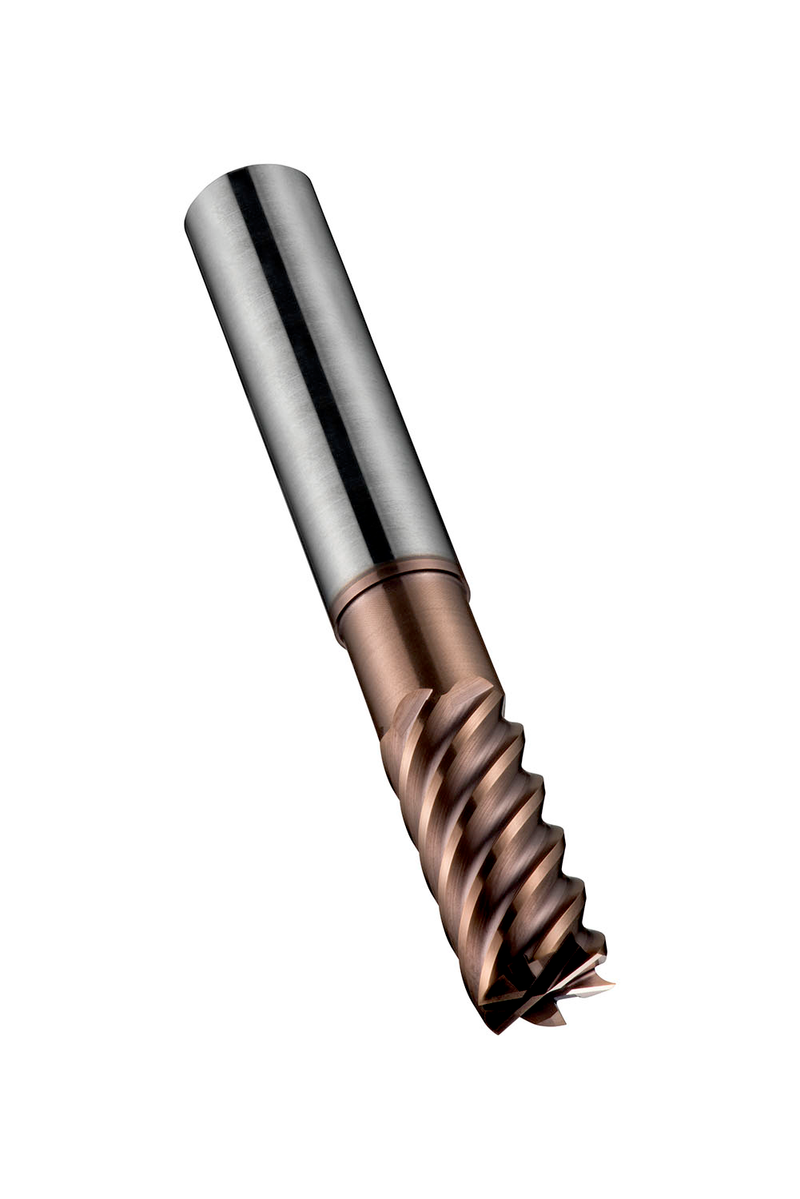

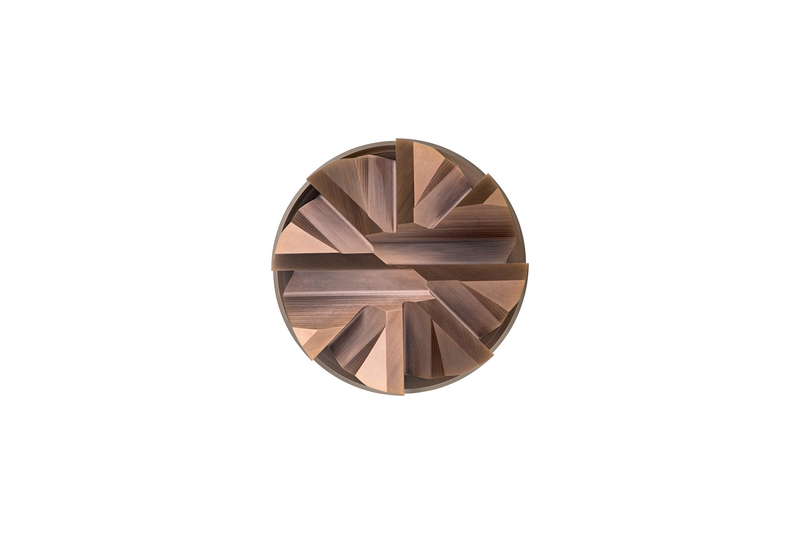

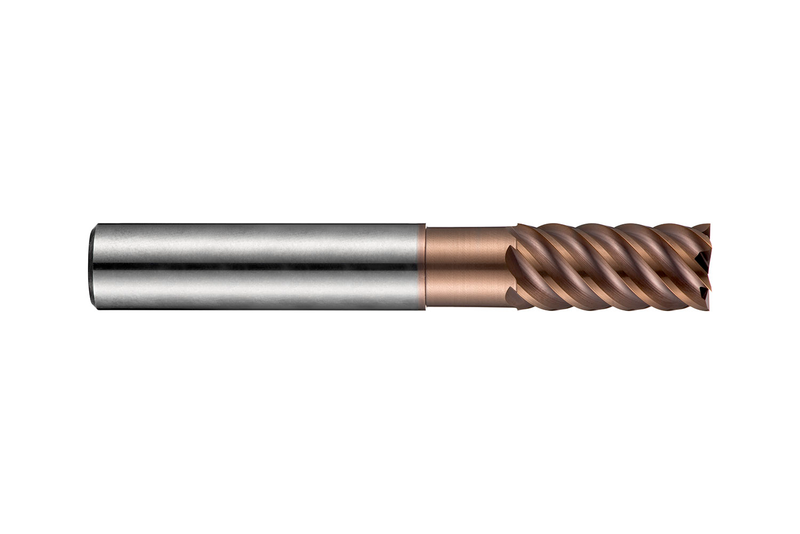

Fraise en bout de finition courte série, 8 dents, diamètre 18mm avec une longueur de coupe de 35mm, une longueur totale de 100mm et une portée de 53mm avec dégagement de col, selon la norme DORMER avec une queue cylindrique de 18mm, carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52518.0
GradeTiSiN
Product Number6706818
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)1.378"
Depth of Cut Max — mm (APMX)35.0 mm

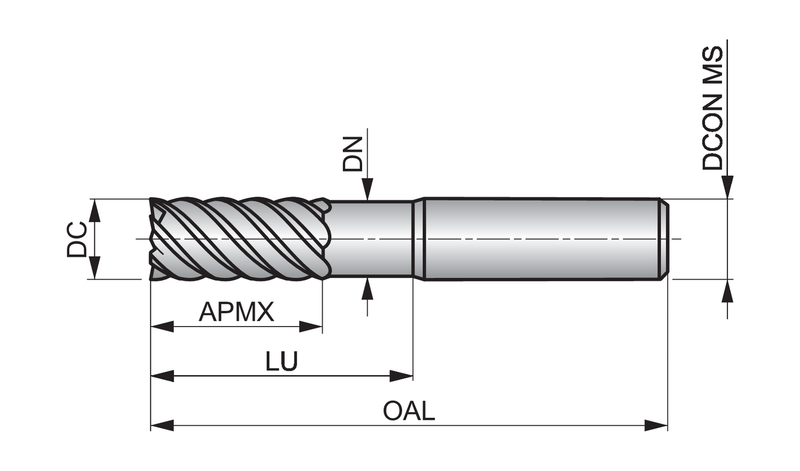

Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)53.0 mm
Connection Dia. — in (DCON)0.7087"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706818
EAN7320760683675
File Type Download
S52518.0 — Line Drawing PDF Download
