UGC DOR6706819
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$627.41 CAD - $627.41 CAD
$627.41 CAD
$627.41 CAD - $627.41 CAD
$627.41 CAD

Vendu en lots de : 1

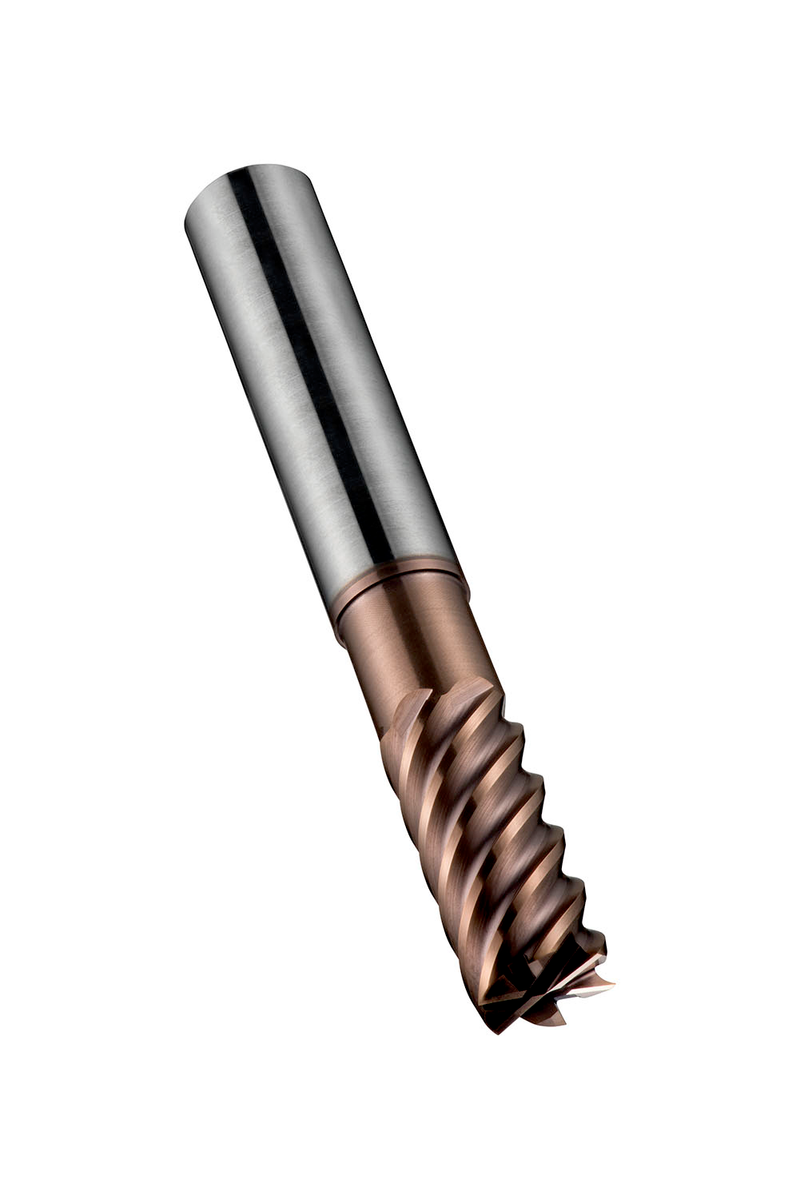

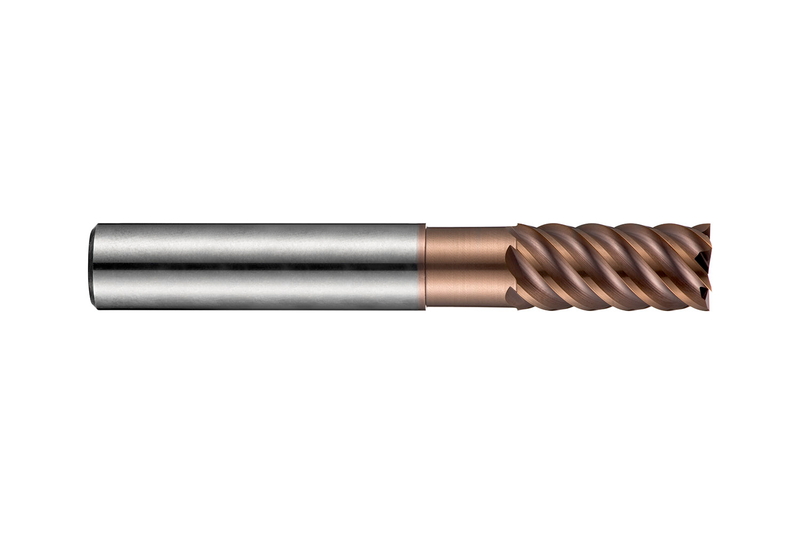

Fraise de finition de courte série à 8 dents, de diamètre 20 mm avec une longueur de coupe de 38 mm, une longueur totale de 100 mm et un dégagement de 58 mm avec collet de dégagement, selon la norme DORMER avec une queue cylindrique de 20 mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le surfaçage dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52520.0
GradeTiSiN
Product Number6706819
Product FamilyS525
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

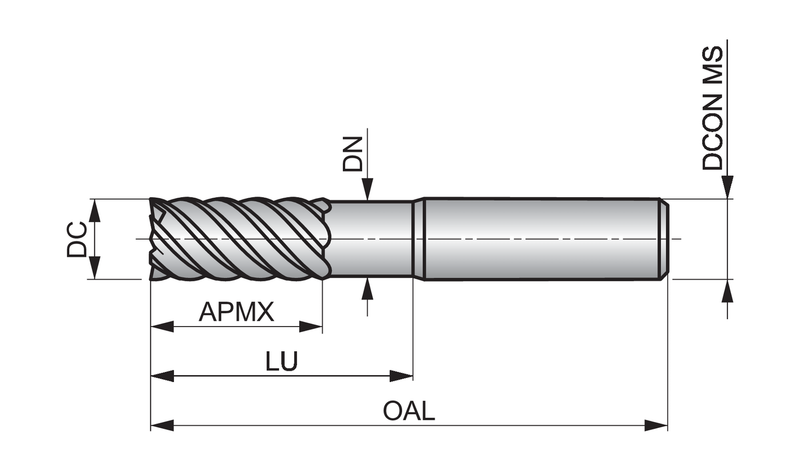

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)58.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

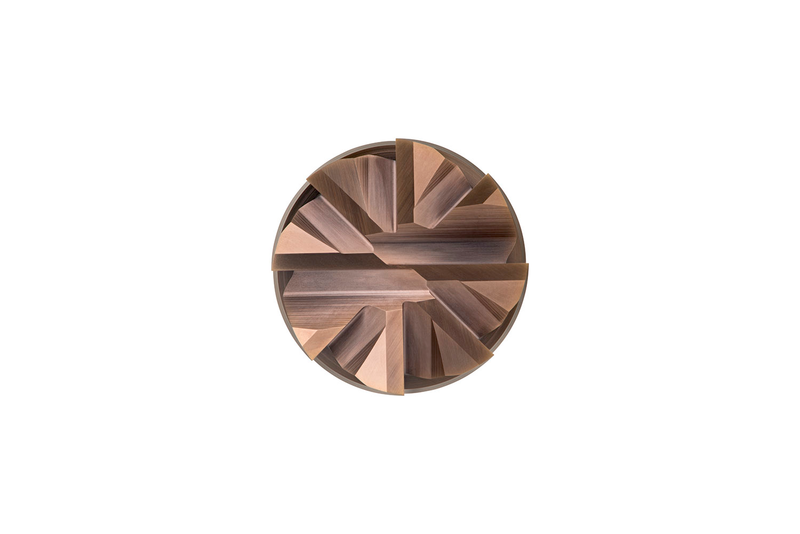

Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706819
EAN7320760683682
File Type Download
S52520.0 — Line Drawing PDF Download
