UGC DOR6706820
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$103.07 CAD - $103.07 CAD
$103.07 CAD
$103.07 CAD - $103.07 CAD
$103.07 CAD

Vendu en lots de : 1

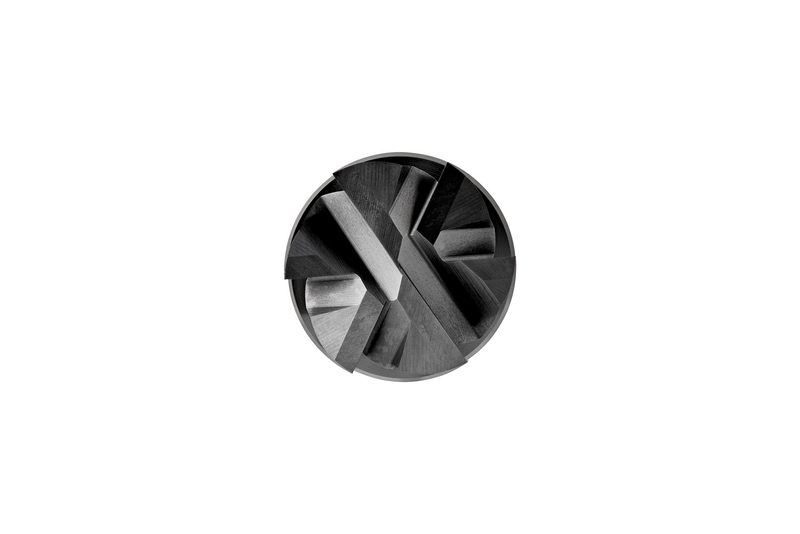

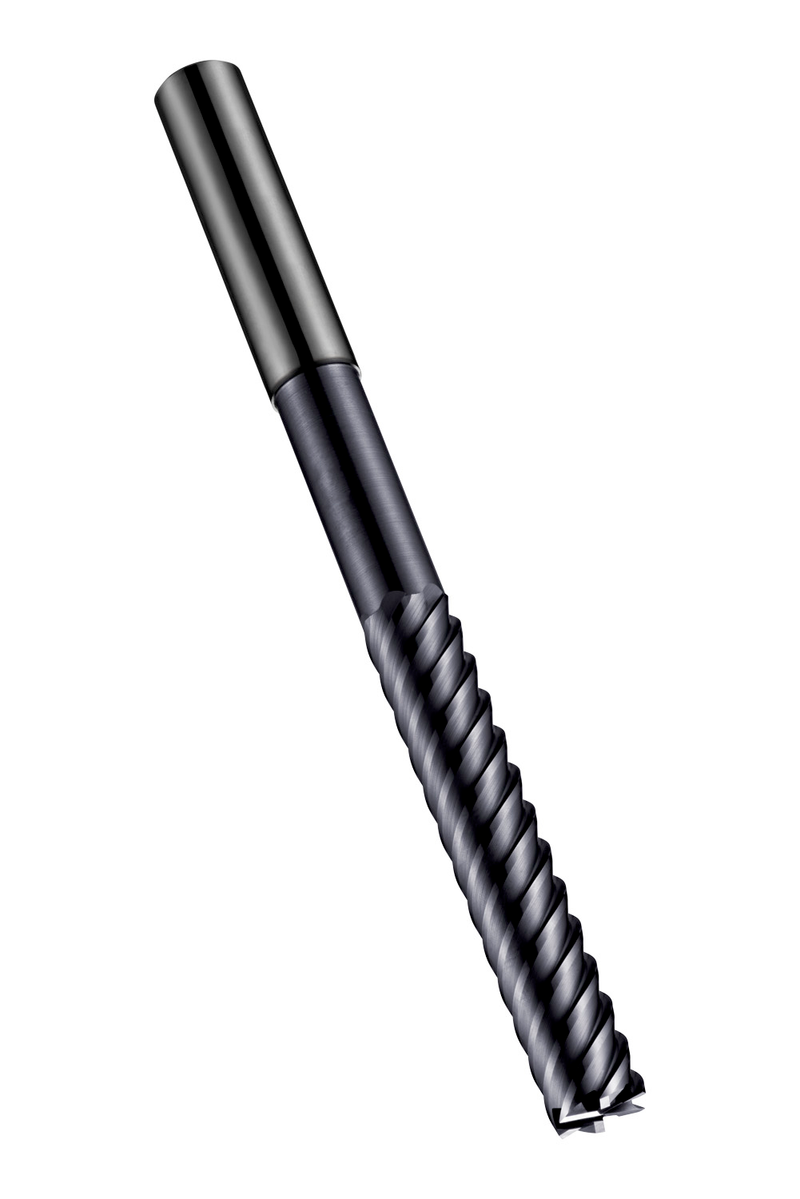

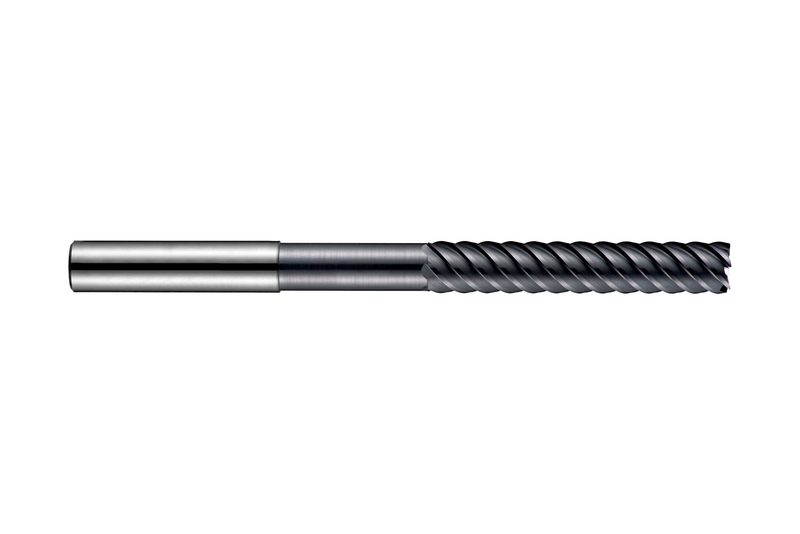

Fraise en bout série extra longue 6 dents, diamètre 6mm, longueur de coupe 38mm, longueur totale 100mm et portée 60mm avec dégagement de collet, selon la norme DORMER avec un queue cylindrique 6mm, carbure monobloc avec revêtement AlTiN, hélice 50° et angle de dépouille 3° pour le fraisage d'épaulement dans l'acier inoxydable martensitique, austénitique et super-austénitique, Duplex ou à durcissement par précipitation et les alliages haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S2276.0
GradeAlTiN
Product Number6706820
Product FamilyS227
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

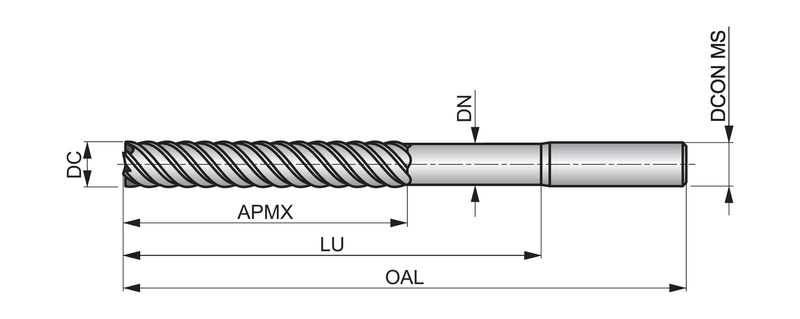

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706820
EAN7320760683699
File Type Download
S2276.0 — Line Drawing PDF Download
