UGC DOR6706827
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$669.70 CAD - $669.70 CAD
$669.70 CAD
$669.70 CAD - $669.70 CAD
$669.70 CAD

Vendu en lots de : 1

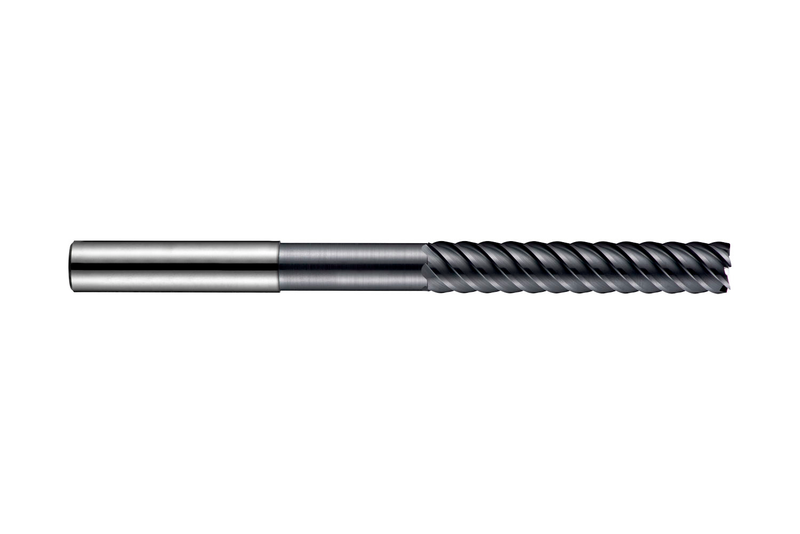

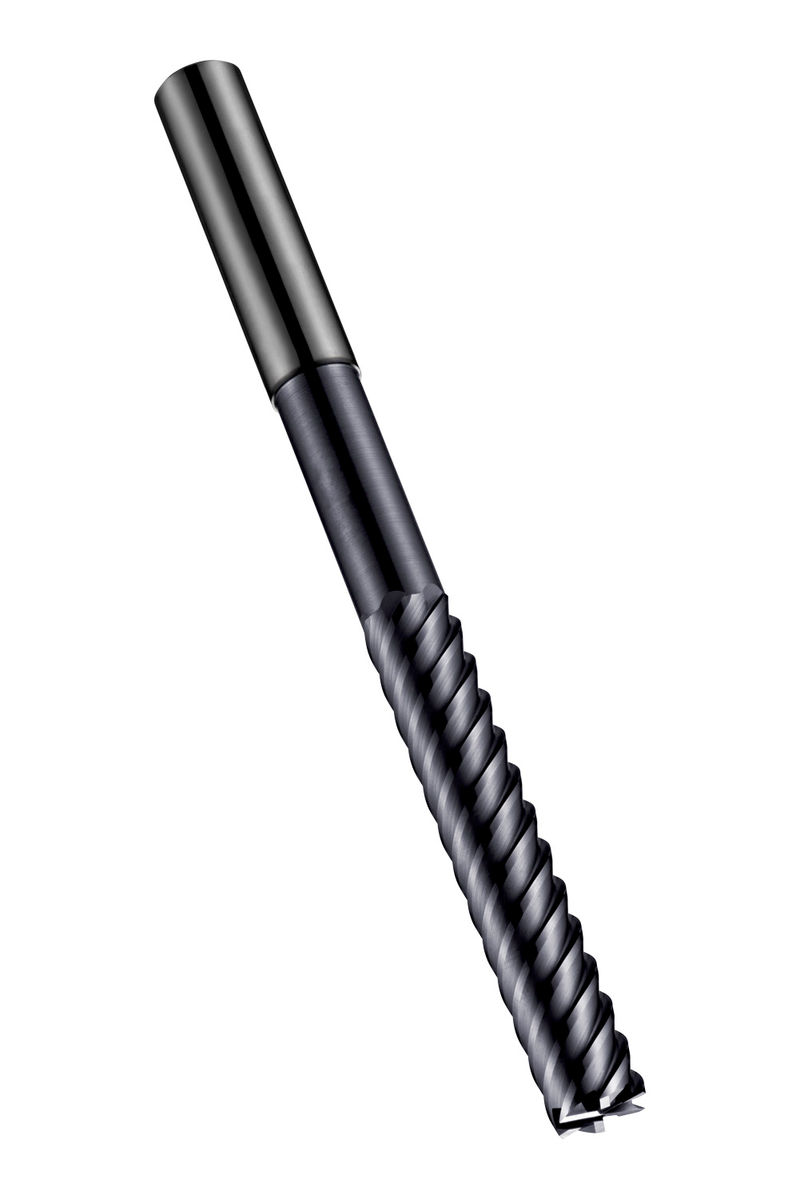

Fraise de finition série extra longue à 8 dents, diamètre 20mm, longueur de coupe 75mm, longueur totale 150mm et portée 110mm avec dégagement de collet, selon la norme DORMER avec queue cylindrique de 20mm, carbure monobloc avec revêtement AlTiN, hélice 50° et angle de dépouille 3° pour le surfaçage d'épaulements dans les aciers inoxydables martensitiques, austénitiques et super-austénitiques, Duplex ou à durcissement par précipitation et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S22720.0
GradeAlTiN
Product Number6706827
Product FamilyS227

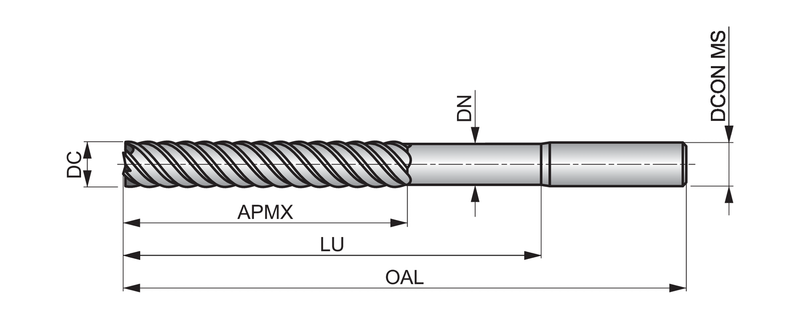

Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)110.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

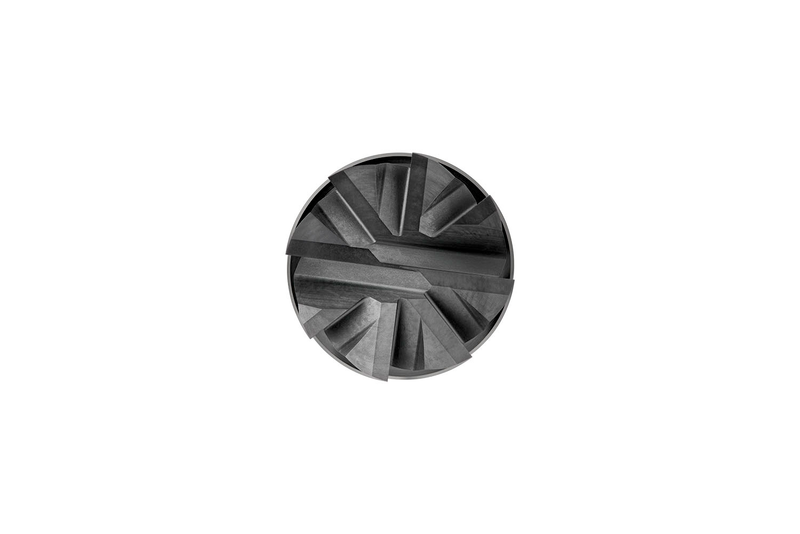

Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706827
EAN7320760683767
File Type Download
S22720.0 — Line Drawing PDF Download
