S5274.0
S5274.0
S5274.0
S5274.0

S5274.0

UGC DOR6706829
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$126.86 CAD - $126.86 CAD
$126.86 CAD
$126.86 CAD - $126.86 CAD
$126.86 CAD

Vendu en lots de : 1

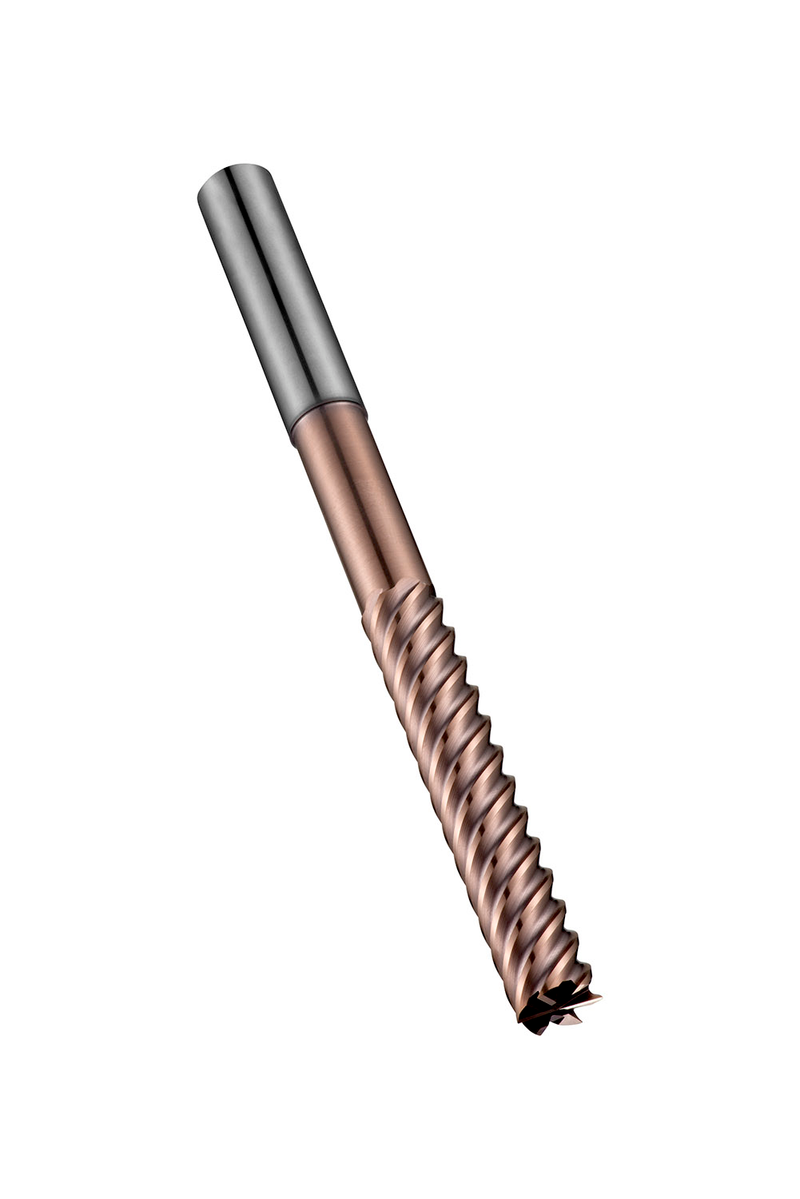

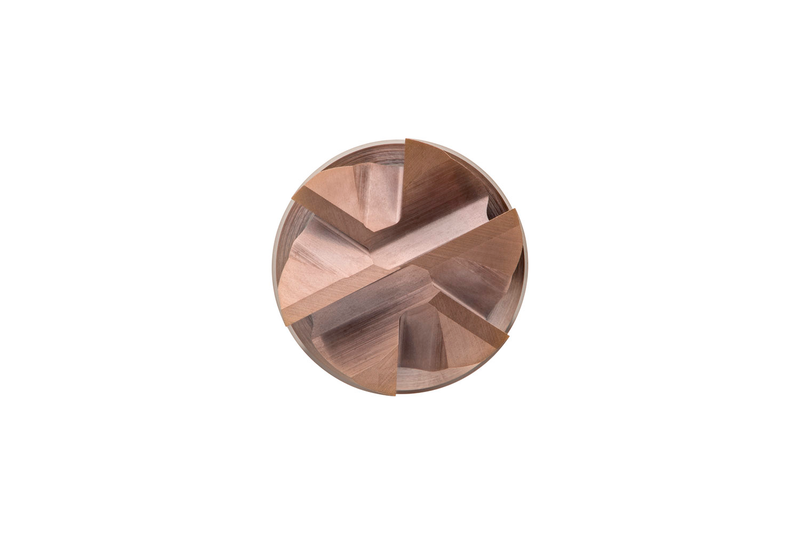

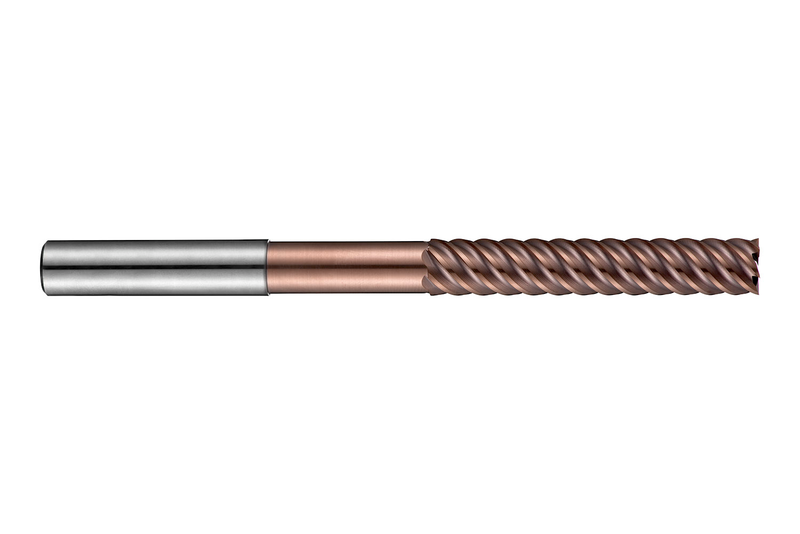

Fraise 6 dents extra longue de finition, diamètre 4mm avec 31mm de longueur de coupe, 100mm de longueur totale et 60mm de portée avec dégagement, conformément à la norme DORMER avec une queue cylindrique de 6mm, en carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5274.0
GradeTiSiN
Product Number6706829
Product FamilyS527
Insert Geometry
Depth of Cut Max — in (APMX)1.2205"
Depth of Cut Max — mm (APMX)31.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706829
EAN7320760683781
File Type Download

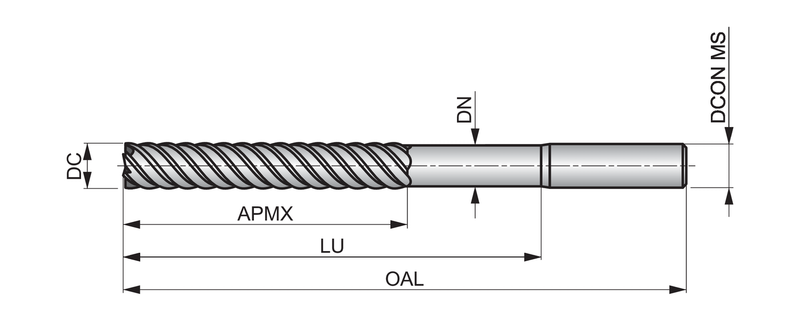

S5274.0 — Line Drawing PDF Download
