UGC DOR6706830
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$130.03 CAD - $130.03 CAD
$130.03 CAD
$130.03 CAD - $130.03 CAD
$130.03 CAD

Vendu en lots de : 1

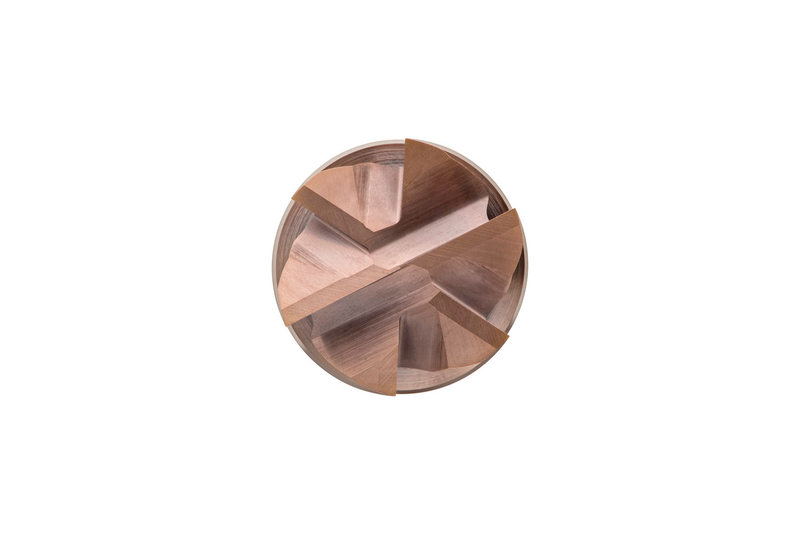

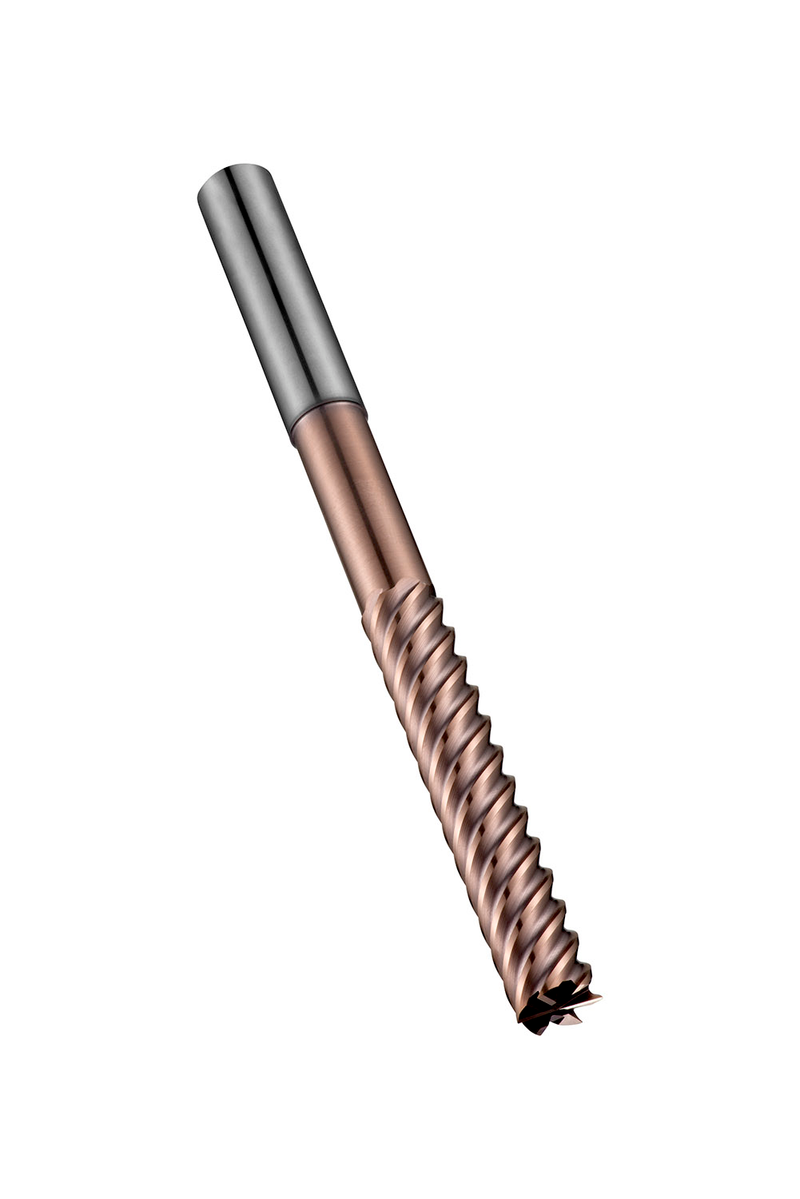

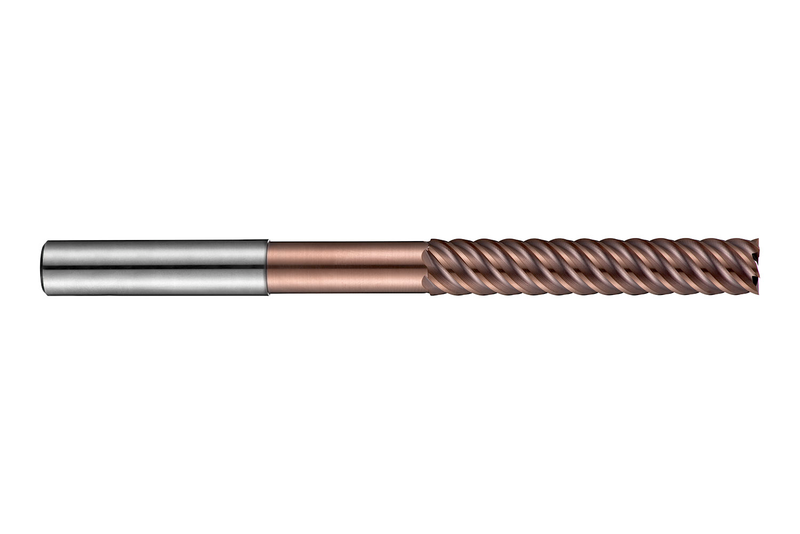

Fraise en bout de finition, série extra longue, 6 arêtes, diamètre 6mm, longueur de coupe 38mm, longueur totale 100mm et longueur utile 60mm avec dégagement, selon la norme DORMER avec une queue cylindrique de 6mm, carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5276.0
GradeTiSiN
Product Number6706830
Product FamilyS527
Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

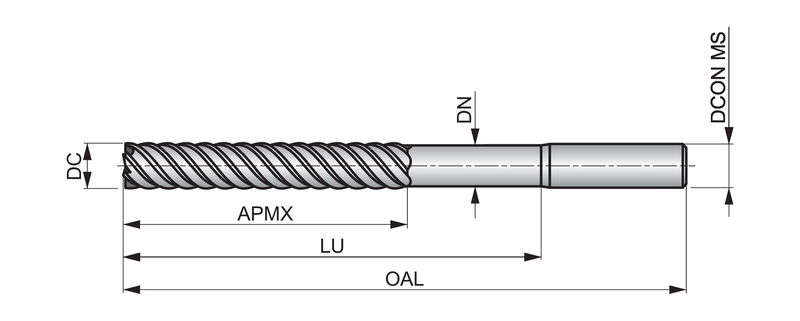

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706830
EAN7320760683798
File Type Download
S5276.0 — Line Drawing PDF Download
