UGC DOR6706831
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$183.94 CAD - $183.94 CAD
$183.94 CAD
$183.94 CAD - $183.94 CAD
$183.94 CAD

Vendu en lots de : 1

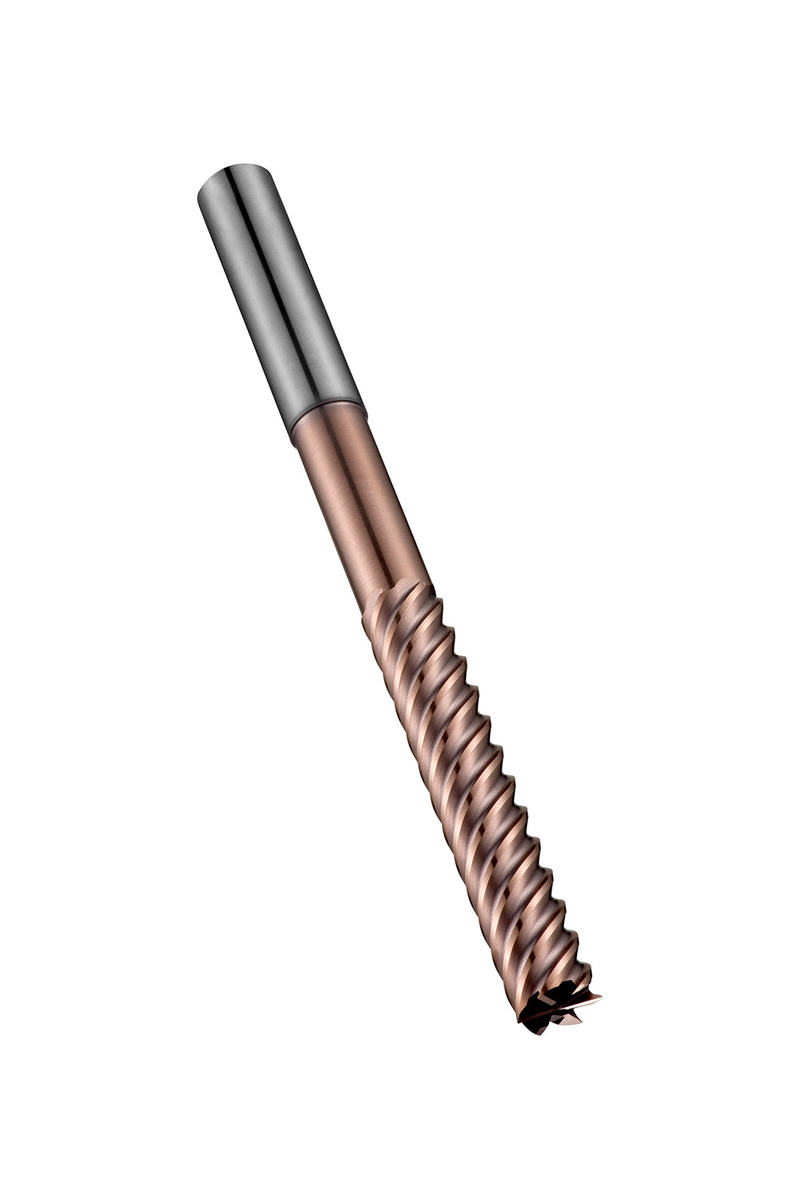

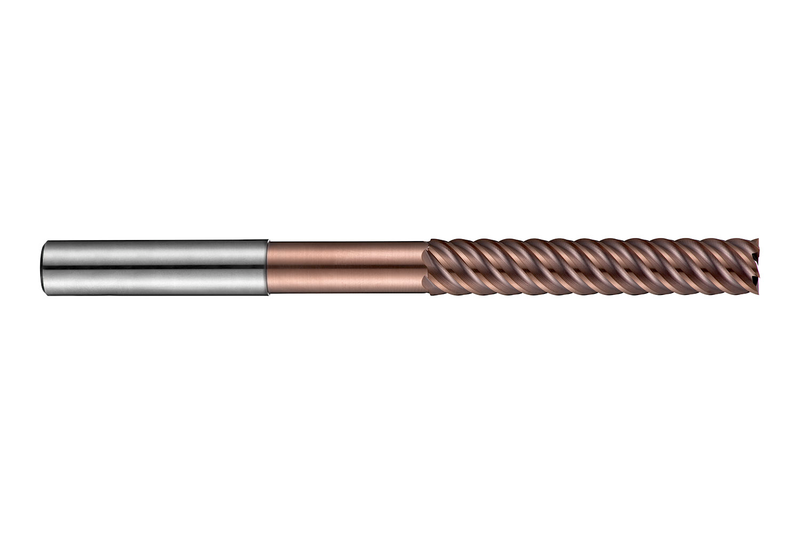

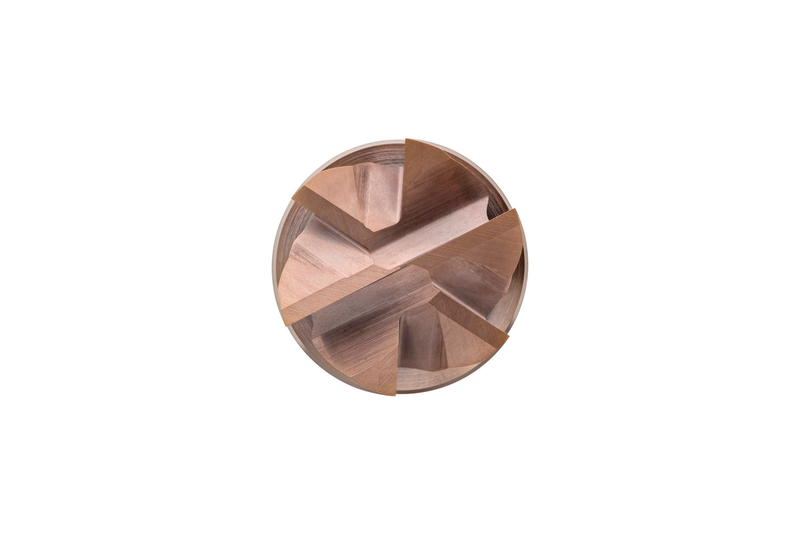

Fraise d'épaule à queue cylindrique extra-longue à 6 dents, diamètre 8mm avec une longueur de coupe de 41mm, une longueur totale de 100mm et un dégagement de 60mm avec le col aminci, selon la norme DORMER, en carbure monobloc avec un revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour l'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5278.0
GradeTiSiN
Product Number6706831
Product FamilyS527

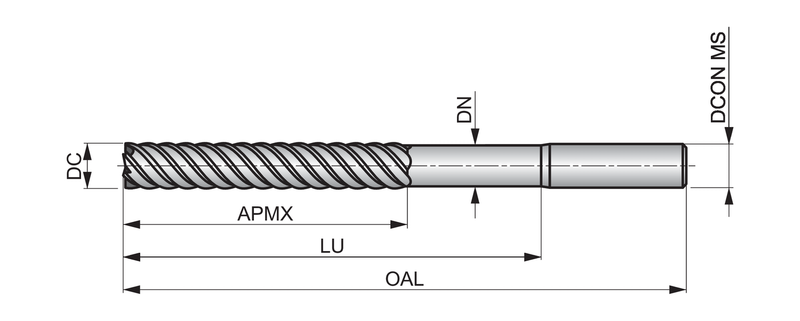

Insert Geometry
Depth of Cut Max — in (APMX)1.6142"
Depth of Cut Max — mm (APMX)41.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)60.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706831
EAN7320760683804
File Type Download
S5278.0 — Line Drawing PDF Download
