UGC DOR6706832
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$241.56 CAD - $241.56 CAD
$241.56 CAD
$241.56 CAD - $241.56 CAD
$241.56 CAD

Vendu en lots de : 1

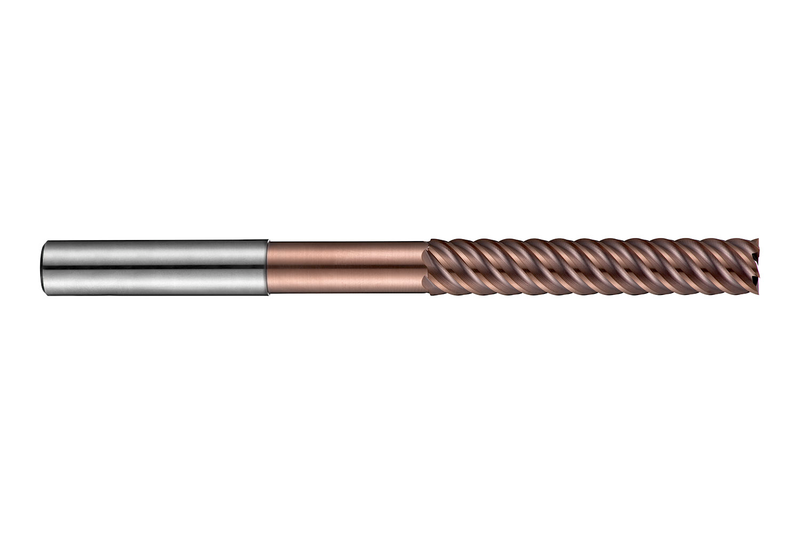

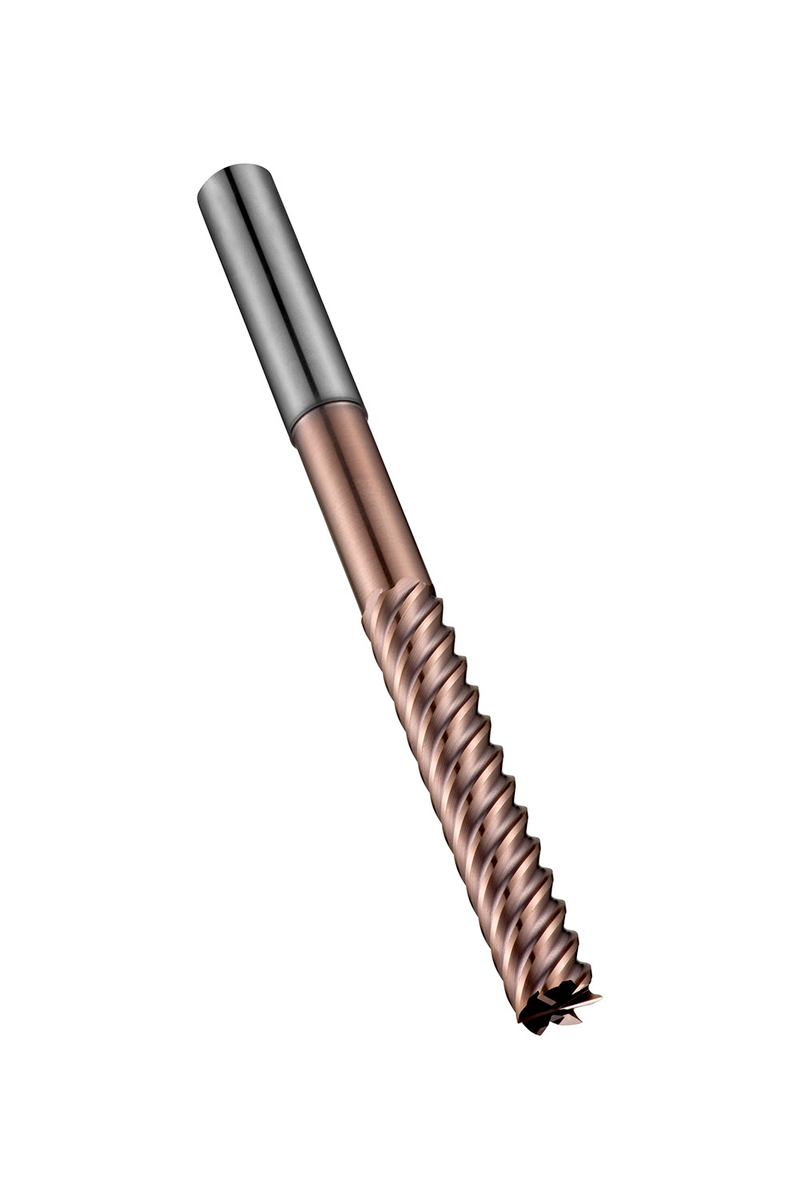

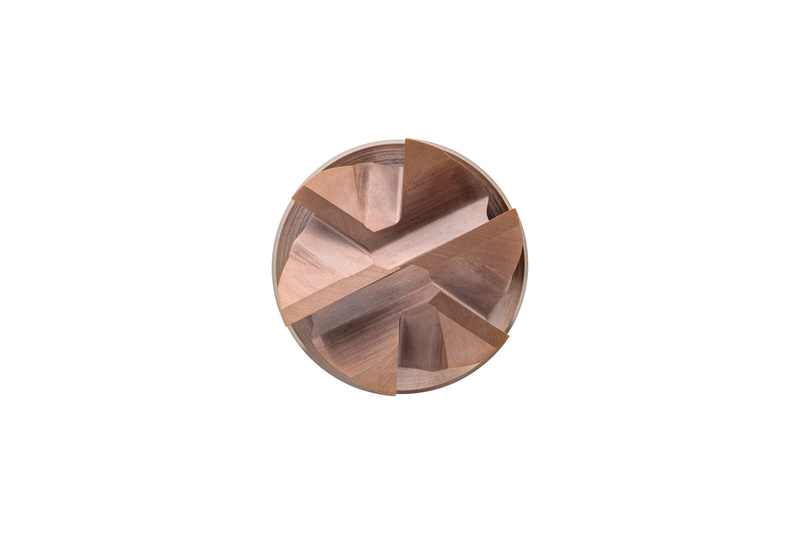

Fraise de finition série extra-longue à 6 coupes, diamètre 10mm avec longueur de coupe 57mm, longueur totale 125mm et dégagement 85mm avec collet fin, selon la norme DORMER avec queue cylindrique 10mm, en carbure monobloc avec revêtement TiSiN, hélice 50° et angle de dépouille -26° pour le fraisage d'épaulements dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52710.0
GradeTiSiN
Product Number6706832
Product FamilyS527
Insert Geometry
Depth of Cut Max — in (APMX)2.2441"
Depth of Cut Max — mm (APMX)57.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Usable Length — mm (LU)85.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706832
EAN7320760683811
File Type Download

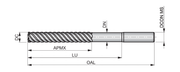

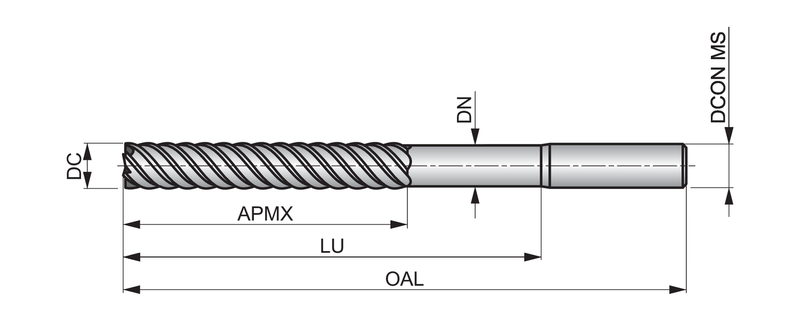

S52710.0 — Line Drawing PDF Download
