UGC DOR6706837
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$848.36 CAD - $848.36 CAD
$848.36 CAD
$848.36 CAD - $848.36 CAD
$848.36 CAD

Vendu en lots de : 1

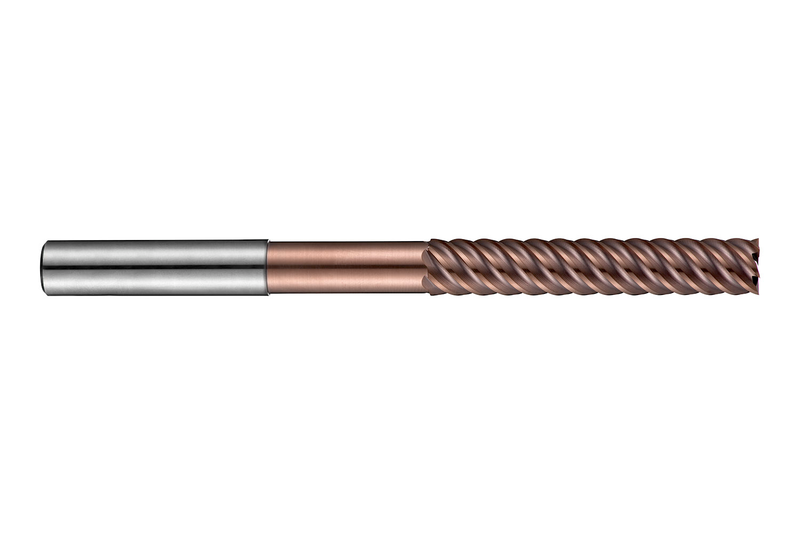

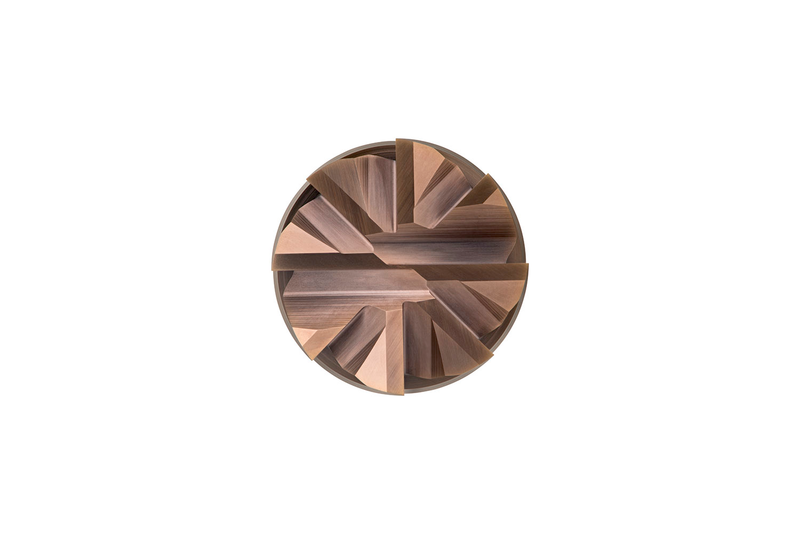

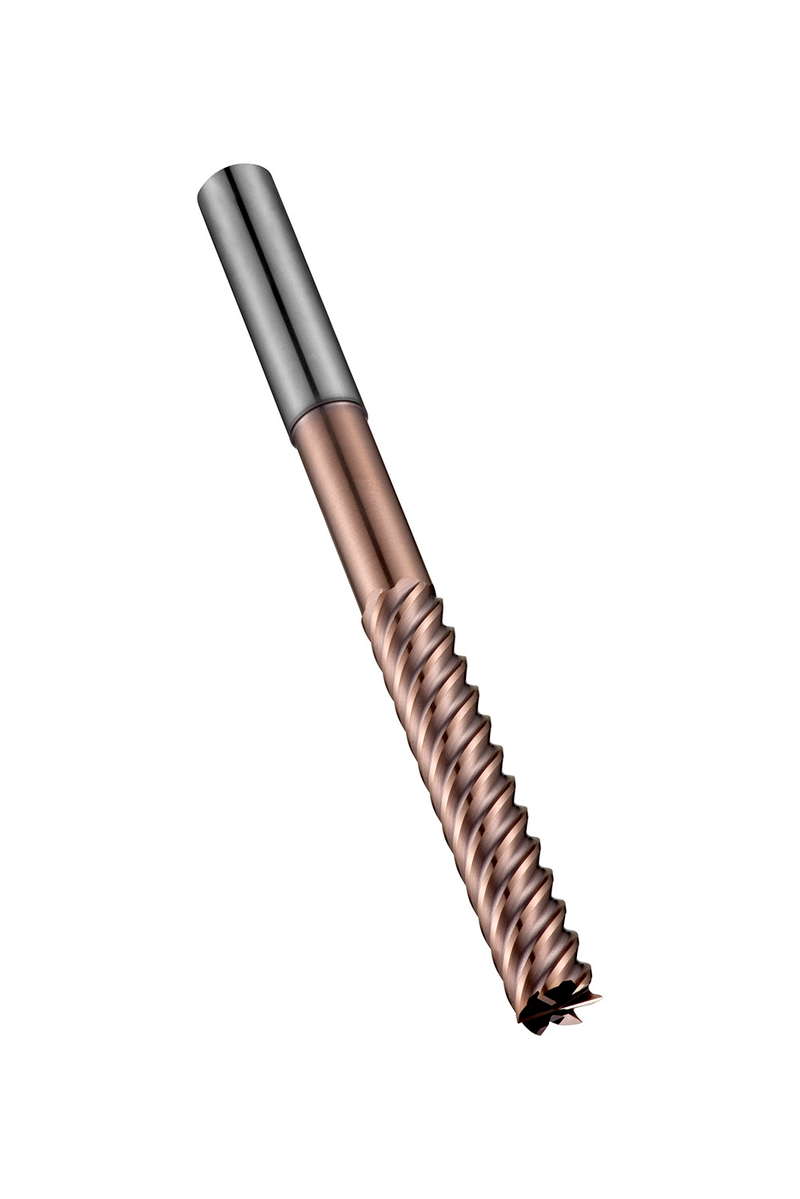

Fraise en bout série extra-longue à 8 dents, diamètre 20mm avec 75mm de longueur de coupe, 150mm de longueur totale et 110mm de portée avec dégagement du collet, selon la norme DORMER avec une queue cylindrique de 20mm, carbure monobloc avec revêtement TiSiN, hélice de 50° et angle de dépouille de -26° pour le fraisage d'épaulement dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S52720.0
GradeTiSiN
Product Number6706837
Product FamilyS527

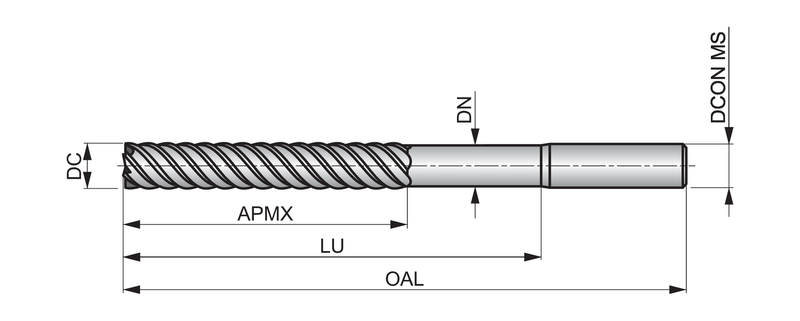

Insert Geometry
Depth of Cut Max — in (APMX)2.9528"
Depth of Cut Max — mm (APMX)75.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)5.9055"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)110.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)50.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706837
EAN7320760683866
File Type Download
S52720.0 — Line Drawing PDF Download
