S5368.0XR2.0
S5368.0XR2.0
S5368.0XR2.0
S5368.0XR2.0

S5368.0XR2.0

UGC DOR6706839
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$158.57 CAD - $158.57 CAD
$158.57 CAD
$158.57 CAD - $158.57 CAD
$158.57 CAD

Vendu en lots de : 1

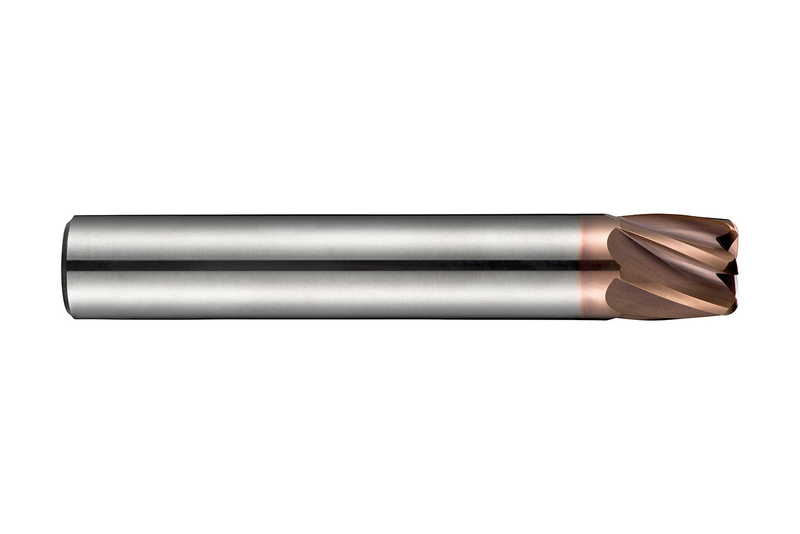

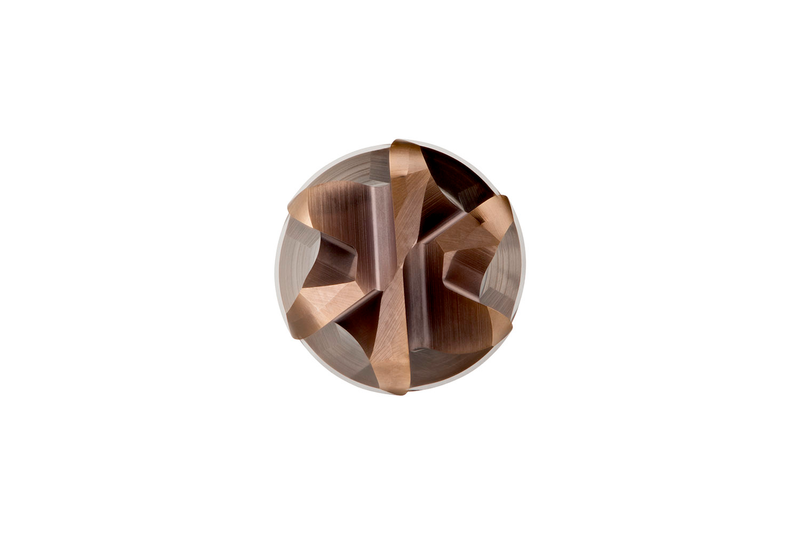

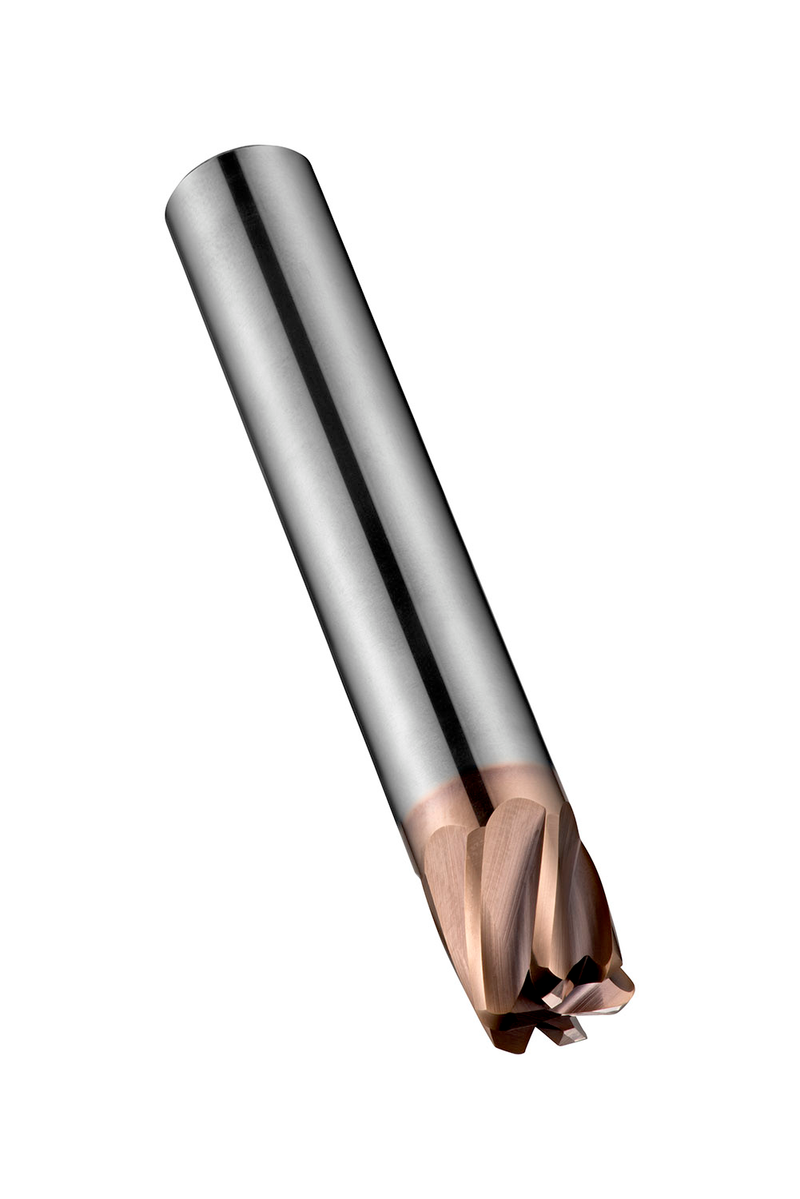

Fraise à surfacer à avance rapide série extra courte à 6 dents, diamètre 8 mm avec longueur de coupe de 8 mm, longueur totale de 64 mm et rayons d'angle de 2 mm, selon la norme DORMER avec une queue cylindrique de 8 mm, carbure monobloc avec revêtement TiSiN, hélice de 25° et angle de dépouille de 0° pour le surfaçage, le fraisage de copie, l'usinage en rampe et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S5368.0XR2.0
GradeTiSiN
Product Number6706839
Product FamilyS536

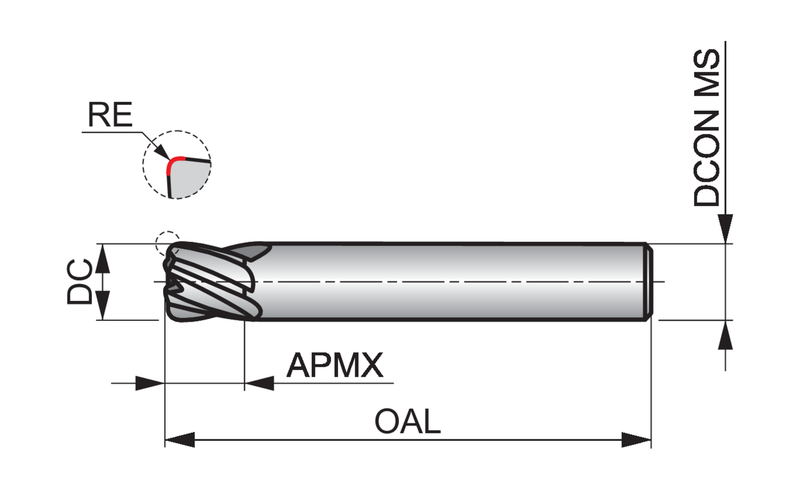

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.5197"
Overall Length — mm (OAL)64.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706839
EAN7320760683880
File Type Download
S5368.0XR2.0 — Line Drawing PDF Download
