S53610.0XR2.0
S53610.0XR2.0
S53610.0XR2.0
S53610.0XR2.0

S53610.0XR2.0

UGC DOR6706840
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$210.90 CAD - $210.90 CAD
$210.90 CAD
$210.90 CAD - $210.90 CAD
$210.90 CAD

Vendu en lots de : 1

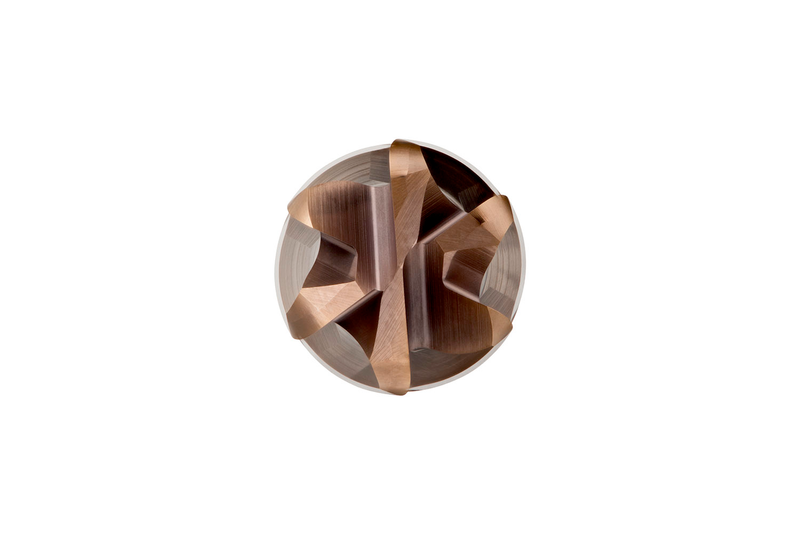

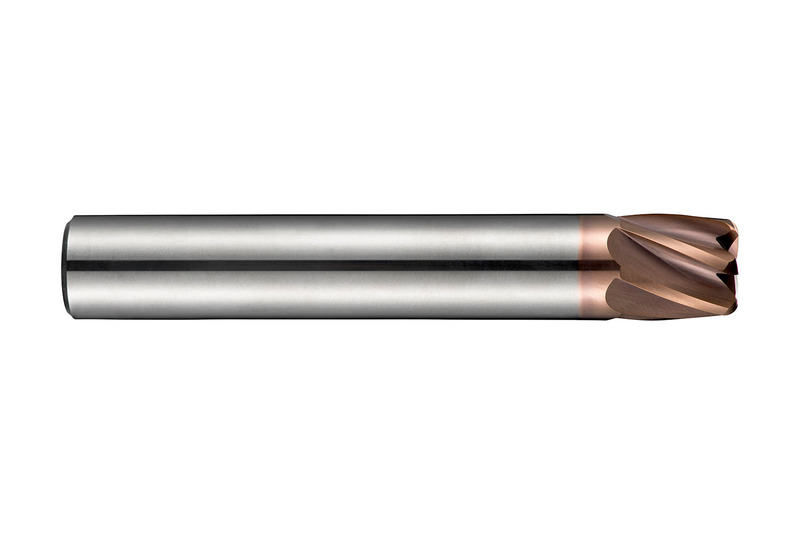

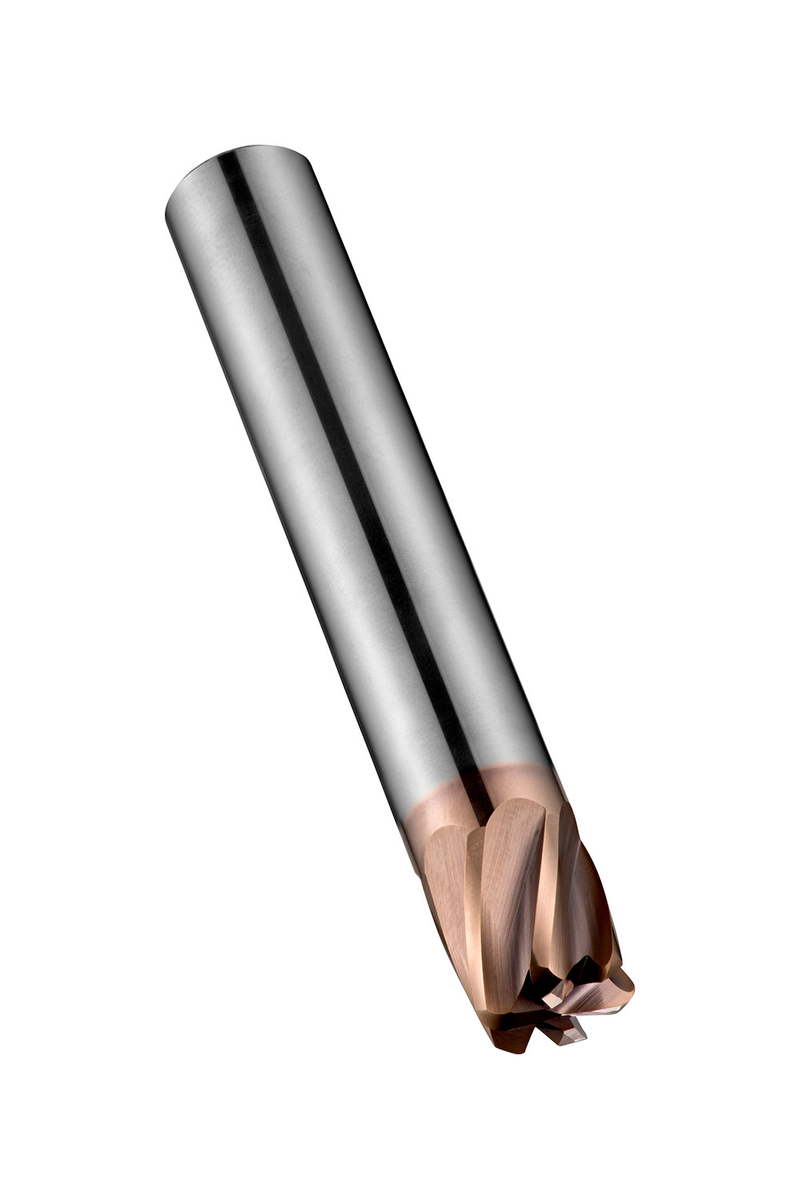

Fraise à surfacer à avance rapide série extra-courte à 6 dents, diamètre 10 mm avec une longueur de coupe de 10 mm, longueur totale de 75 mm et rayons de coin de 2 mm, selon la norme DORMER avec une queue cylindrique de 10 mm, carbure monobloc avec revêtement TiSiN, hélice de 25° et angle de dépouille de 0° pour le surfaçage, la copiage, le ramping et le fraisage hélicoïdal dans les matériaux trempés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S53610.0XR2.0
GradeTiSiN
Product Number6706840
Product FamilyS536

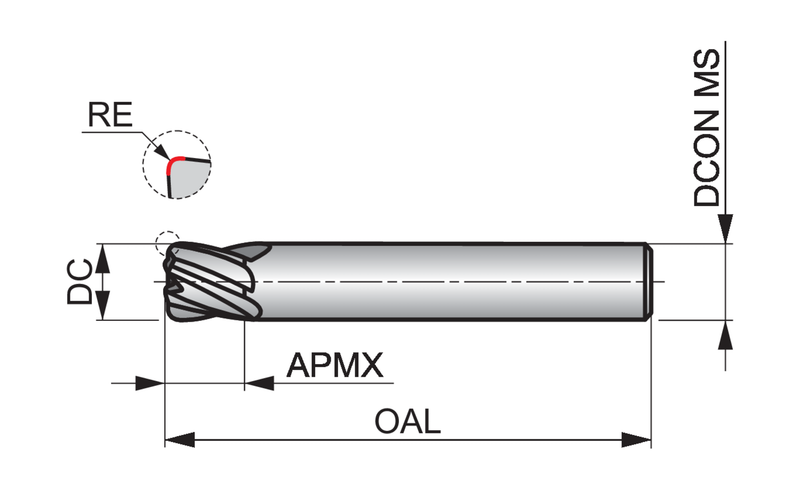

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.9528"
Overall Length — mm (OAL)75.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)25.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706840
EAN7320760683897
File Type Download
S53610.0XR2.0 — Line Drawing PDF Download
