S7634.0XR0.3
S7634.0XR0.3
S7634.0XR0.3
S7634.0XR0.3

S7634.0XR0.3

UGC DOR6706844
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.11 CAD - $76.11 CAD
$76.11 CAD
$76.11 CAD - $76.11 CAD
$76.11 CAD

Vendu en lots de : 1

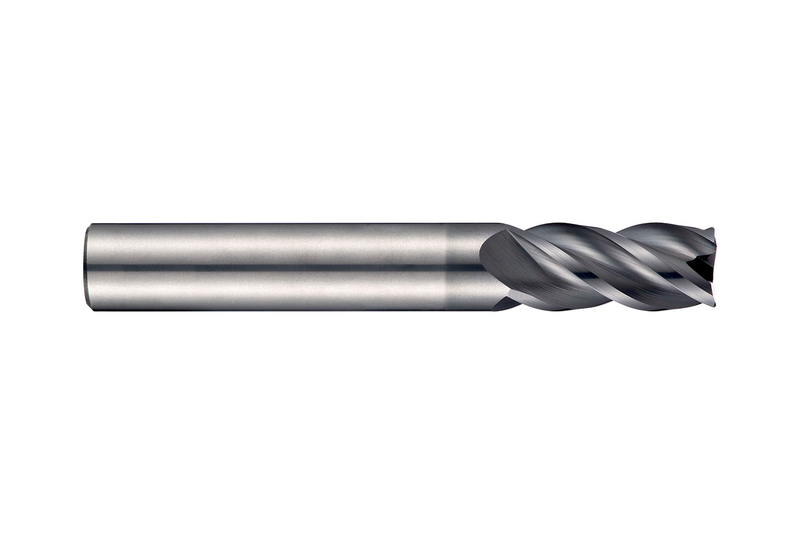

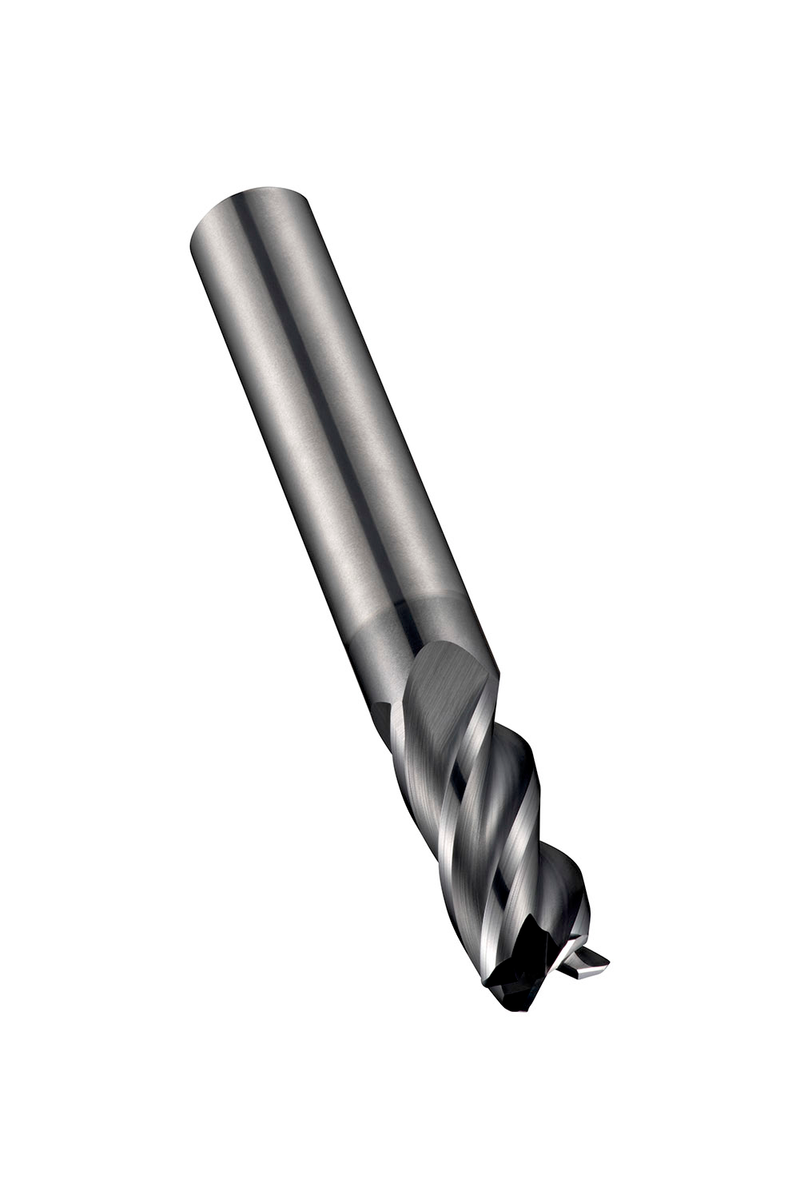

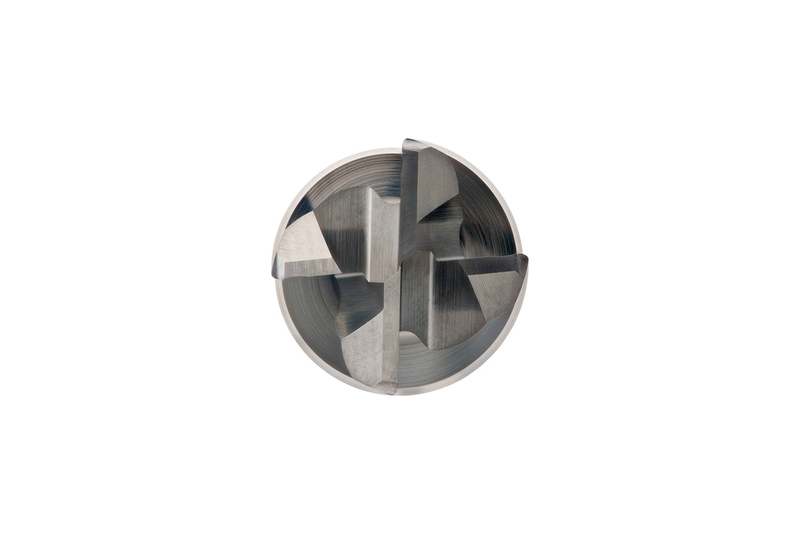

Fraise en bout à rayons de coins série courte à 4 dents, diamètre 4mm, longueur de coupe 12mm, longueur totale 50mm et rayons de coins 0,3mm, conforme à la norme DORMER avec queue cylindrique 4mm, carbure monobloc avec revêtement AlCrN, hélice 40° à pas différentiel et angle de dépouille 10° pour le fraisage d'épaulements, le plongement, le plongement progressif, l'interpolation hélicoïdale et le fraisage en rampe dans l'acier et l'acier moulé, l'acier inoxydable ferritique, martensitique et austénitique, la fonte et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)S7634.0XR0.3
GradeAlCrN
Product Number6706844
Product FamilyS763

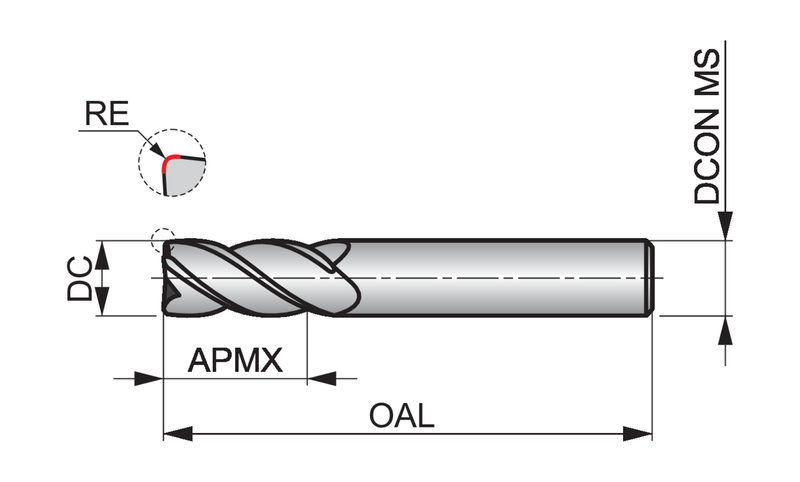

Insert Geometry
Corner Radius — in (RE)0.0118"
Corner Radius — mm (RE)0.3 mm
Depth of Cut Max — in (APMX)0.4724"
Depth of Cut Max — mm (APMX)12.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)40.0°
Tool Information
ShankQueue cylindrique DIN 6535 HA
StandardNorme de travail
Reference Numbers
EDP Number46706844
EAN7320760683934
File Type Download
S7634.0XR0.3 — Line Drawing PDF Download
